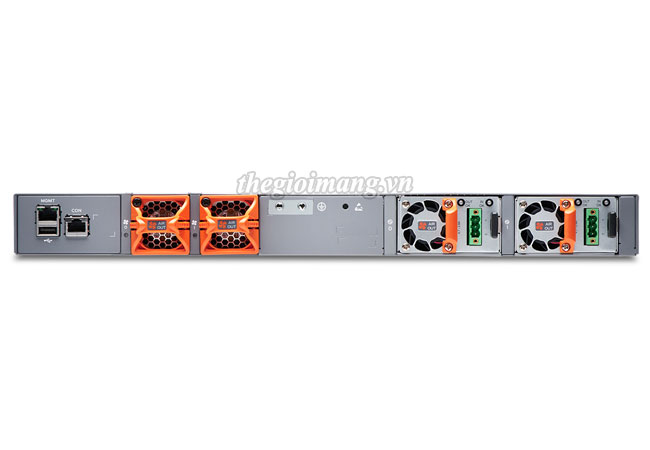

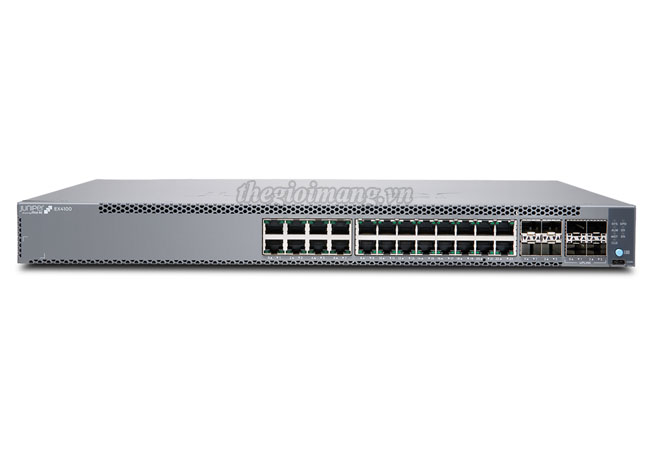

Juniper EX4100-24T-DC Ethernet Access Switch :
Thiết bị chuyển mạch Switch Juniper EX4100-24T-DC
Model | EX4100-24T-DC |
Switching Engine Mode | • Store and forward |
Memory | • DRAM: 4 GB with Error Correcting Code (ECC) • Storage: 8 GB |
CPU | • 1.7 GHz ARM CPU |
Port Density per System | • 24 1GbE host ports + 4 10GbE/25GbE ports + 4 1GbE/10GbE ports |
Packet Switching Capacities (Maximum with 64 Byte Packets) |
• 164 Gbps (unidirectional)/328 Gbps (bidirectional) |
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets) |
• 244 Mpps |
Backplane | • 200 Gbps Virtual Chassis interconnect to combine up to 10 units as a single logical device |
Power Options | • Power supplies: Autosensing; 100-120 V/200-240 V; 150 W DC AFO, dual load sharing hot-swappable internal redundant power supplies • Maximum current inrush: 30 amps • Minimum number of PSUs required for fully loaded chassis: 1 per switch |
Dimensions (W x H x D) | • Base Unit: 44.1 x 4.37 x 35 cm • With power supply installed: 44.1 x 4.37 x 38.24 cm • Height: 1 U |
System Weight | • Switch with no power supply or fan module : 4.41 kg • 150 W DC power supply: 0.65 kg • Fan module: 0.07 kg |
Environmental Ranges | • Operating temperature: 32° to 113° F (0° to 45° C) • Storage temperature: -40° to 158° F (-40° to 70° C) • Operating altitude: Up to 5000 ft at 40° C (1828.8 m) • Nonoperating altitude: Up to 16,000 ft (4877 m) • Relative humidity operating: 5% to 90% (noncondensing) • Relative humidity non-operating: 0% to 90% (noncondensing) |
Cooling | • Field-replaceable fans: 2 |
EX4100-24T-DC : 24-port 10/100/1000BASE-T switch, 4x10GbE uplinks, 4x25GbE stacking/uplink ports, MACsec AES256, redundant fans, 1x JPSU-150-DC-AFO included with Standard SW, optics sold separately, TAA-compliant.
Juniper EX4100-24MP Multigigabit Ethernet PoE++ Switch :
Liên hệ để có giá tốt
