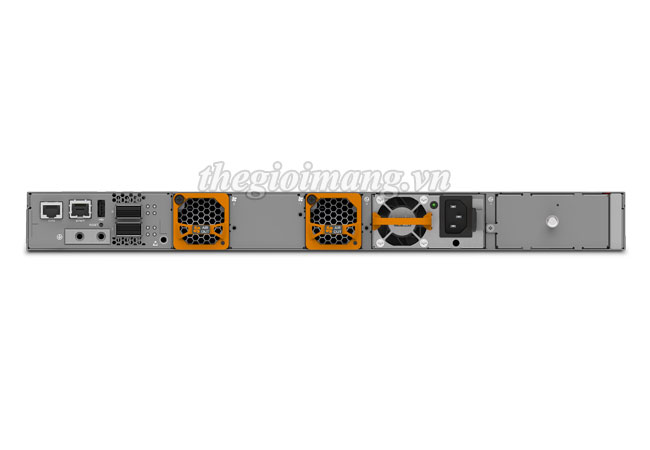

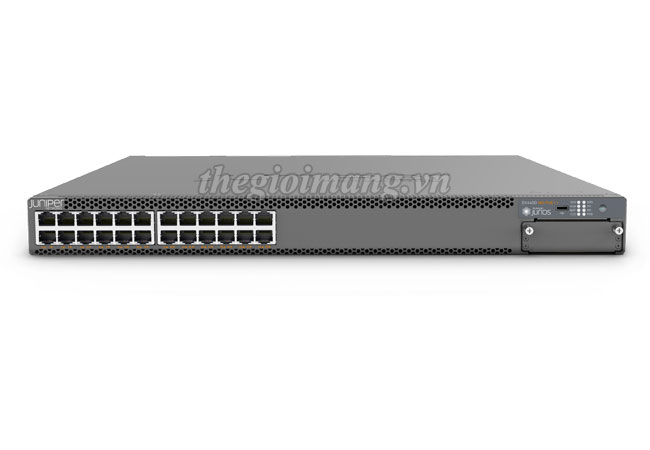

Juniper EX4400-24MP

Switch Juniper EX4400-24MP : 24x100M/1/2.5/5/10GbE ports PoE++ power + 1050 W AC PS (provides 788/1440 W PoE++ power with single/dual PS) (DAC for Virtual Chassis orderedseparately)
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Juniper EX4400-24MP

Model EX4400-24MP
Switching Engine Mode • Store and forward
Memory  • DRAM: 4 GB with Error Correcting Code (ECC) on all models
• Storage: 20 GB on all models
CPU • 2.2 GHz Quad-Core Intel x86 CPU
GbE Port Density per System • 30 (24 10GbE host ports + 2 100GbE ports + optional 4 port 1GbE/10GbE or 10/25GbE extension module)
• 100GbE port density per system:  2
Packet Switching Capacities (Maximum with 64 Byte Packets)  • 540 Gbps (unidirectional)/1080 Gbps (bidirectional)
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets)  • 803 Mpps
Maximum MAC addresses per system • 112,000
Jumbo frames • 9216 Bytes
Number of VLANs supported • 4093
Virtual Spanning Tree (VST) instances • 510
Backplane • 400 Gbps Virtual Chassis interconnect to combine up to 10 units as a single logical device
Dimensions (W x H x D) • With power supply installed: 17.39 x 1.72 x 16.93 in. (44.17 x 4.37 x 43 cm)
• With power supply, extension module, and fan module: 17.39 x 1.72 x 17.26 in. (44.17 x 4.37 x 43.84 cm)
• Height: 1 U
System Weight • 13.01 lb (5.9 kg) (with no power supply or fan module)
Environmental Ranges • Operating temperature: 32° to 113° F (0° to 45° C)
• Storage temperature: -40° to 158° F (-40° to 70° C)

Extension Modules cho Switch Juniper EX4400-24MP

EX4400-EM-4S EX4400 4-port 1GbE/10GbE SFP+ Extension Module
EX4400-EM-4Y EX4400 4-port 25GbE SFP28 Extension Module

EX4400-24MP : 24x100M/1/2.5/5/10GbE ports PoE++ power + 1050 W AC PS (provides 788/1440 W PoE++ power with single/dual PS) (DAC for Virtual Chassis orderedseparately)

Data sheet Juniper EX4400 Line Of Ethernet Switches
