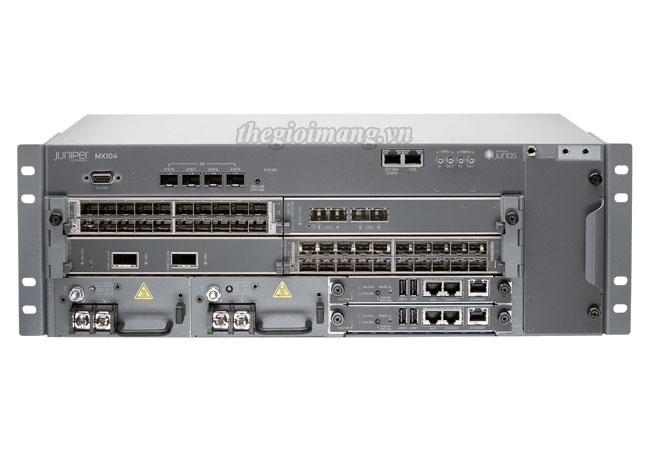

Juniper MX104-AC

Router Juniper MX104-AC : MX104 chassis with 4 MIC slots, 4X10GbE SFPP built-in ports (license required for activation), AC power supply, fan tray with filter, Packet Forwarding Engine and Routing Engine, Altius-MX104.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị định tuyến Router Juniper MX104-AC

Model MX104-AC
Layout
System capacity 80 Gbps
Slot orientation Horizontal
Mounting Front or center
Physical Specification
Dimensions (W x H x D) 17.22 x 6.09 x 9.46 in (43.7 x 15.47 x 24 cm)
Weight fully loaded 32 lb/14.5 kg
Weight unloaded NA
Routing Engine
Default memory 4 MB boot flash; 8 GB of NAND Flash; 4 GB of DDR3 RAM
Number of cores 2 core
Redundancy Power supplies, REs, fans
Environmental
Air flow Side to side [forced air]
Operating temperature -40° to 149° F (-40° to 65° C)
Operating humidity 5% to 90%
Operating altitude 10,000 ft (3048 m)
Certifications - SR-3580 (2007) NEBS Criteria Levels (Level 3 Compliance)
- GR-63-Core (2006) NEBS Physical Protection
- GR-1089-Core (2006) EMC and Electrical Safety
- GR-3108-CORE Issue 2, December 2008
- IEEE 1613: 2009
- IEC 61850-3: 2013

MX104 Software Licenses

S-MX104-SSM-FP L3 Subscriber Service Management Feature Packet License, MX104
S-MX104-Q License to support per VLAN queuing on MX104
S-MX104-ADV-R License to support full-scale L3 route and L3 VPN on MX104

MX104 Upgrade Licenses

S-MX104-UPG-2x10GE Upgrade license to activate 2 x 10GbE fixed ports
S-MX104-UPG-4x10GE Upgrade license to activate 4 x 10GbE fixed ports

MX104-AC : MX104 chassis with 4 MIC slots, 4X10GbE SFPP built-in ports (license required for activation), AC power supply, fan tray with filter, Packet Forwarding Engine and Routing Engine, Altius-MX104.

Data sheet MX Series Universal Routing Platforms
