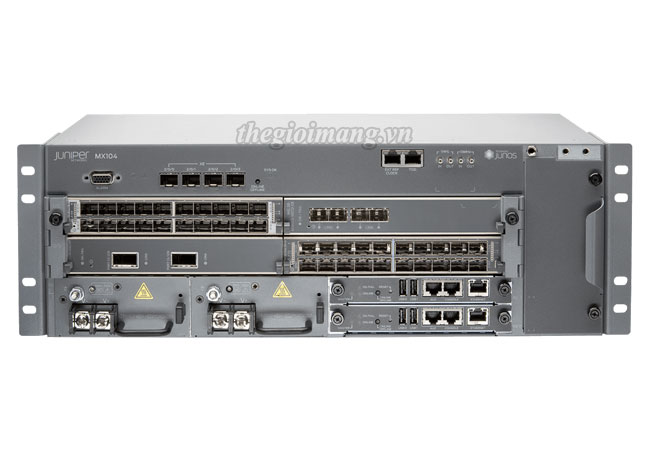

Router Juniper MX104-DC : MX104 chassis with 4 MIC slots, 4X10GbE SFPP built-in ports (license required for activation), DC power supply, fan tray with filter, Packet Forwarding Engine and Routing Engine, Altius-MX104.
Thiết bị định tuyến Router Juniper MX104-DC
| Model | MX104-DC |
| Layout | |
| System capacity | 80 Gbps |
| Slot orientation | Horizontal |
| Mounting | Front or center |
| Physical Specification | |
| Dimensions (W x H x D) | 17.22 x 6.09 x 9.46 in (43.7 x 15.47 x 24 cm) |
| Weight fully loaded | 32 lb/14.5 kg |
| Weight unloaded | NA |
| Routing Engine | |
| Default memory | 4 MB boot flash; 8 GB of NAND Flash; 4 GB of DDR3 RAM |
| Number of cores | 2 core |
| Redundancy | Power supplies, REs, fans |
| Environmental | |
| Air flow | Side to side [forced air] |
| Operating temperature | -40° to 149° F (-40° to 65° C) |
| Operating humidity | 5% to 90% |
| Operating altitude | 10,000 ft (3048 m) |
| Certifications | - SR-3580 (2007) NEBS Criteria Levels (Level 3 Compliance) - GR-63-Core (2006) NEBS Physical Protection - GR-1089-Core (2006) EMC and Electrical Safety - GR-3108-CORE Issue 2, December 2008 - IEEE 1613: 2009 - IEC 61850-3: 2013 |
MX104 Software Licenses
| S-MX104-SSM-FP | L3 Subscriber Service Management Feature Packet License, MX104 |
| S-MX104-Q | License to support per VLAN queuing on MX104 |
| S-MX104-ADV-R | License to support full-scale L3 route and L3 VPN on MX104 |
MX104 Upgrade Licenses
| S-MX104-UPG-2x10GE | Upgrade license to activate 2 x 10GbE fixed ports |
| S-MX104-UPG-4x10GE | Upgrade license to activate 4 x 10GbE fixed ports |
MX104-DC : MX104 chassis with 4 MIC slots, 4X10GbE SFPP built-in ports (license required for activation), DC power supply, fan tray with filter, Packet Forwarding Engine and Routing Engine, Altius-MX104.
