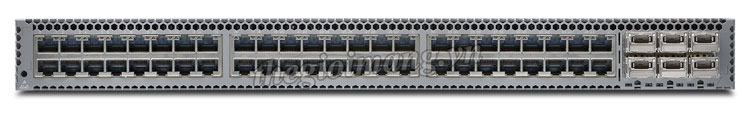

Thiết bị mạng Switch Juniper QFX5100-48T
| Dimensions (W x H x D) | QFX5100-48T: 17.4 x 1.72 x 21.5 in (44.1 x 4.4 x 54.6 cm); 1 U |
| Power Options | 100 to 240 VAC (single phase) at 50/60 Hz or –36 to –72 VDC |
| System Throughput | QFX5100-48T: 1.44 Tbps |
| Form Factor | Fixed-configuration platform |
| Data Rate (switching capacity) | QFX5100-48T: 1.08 Bpps |
| Port Densities | QFX5100-48T: 48 tri-speed (100 Mbps/1GbE/10GbE); 6 40GbE |
| Maximum 10GbE Density | N/A |
| Maximum 25GbE/50GbE Densities | N/A |
| Maximum 40GbE Density | QFX5100-48T: 6 ports |
| Maximum 100GbE Density | N/A |
| Resiliency | Dual hot-swappable AC or DC power supplies for 1+1 redundancy. Hot-swappable fan trays. |
| Power Consumption | QFX5100-48T: 335W |
| Overlay Services | Contrail Layer 3 gateway (roadmap) VMware NSX Layer 2 gateway (roadmap) |
| Traffic Monitoring | Port-based LAG port VLAN-based Access control list (ACL)-based Mirror to local and remote destinations (Layer 2 over VLAN) |
| QoS Queues / Port | 12 (8 unicast; 4 multicast) |
| MAC Addresses | 288,000 |
| Jumbo Frames | 9,216 Bytes |
| IPv4 Hosts | 144,000 |
| IPv4 Unicast Routes | 208,000 |
| IPv4 Multicast Routes | 104,000 |
| IPv6 Hosts | 72,000 |
| IPv6 Unicast Routes | 104,000 |
| IPv6 Multicast Routes | 52,000 |
| Number of VLANs | 4,096 |
| ARP Entries | 48,000 |
