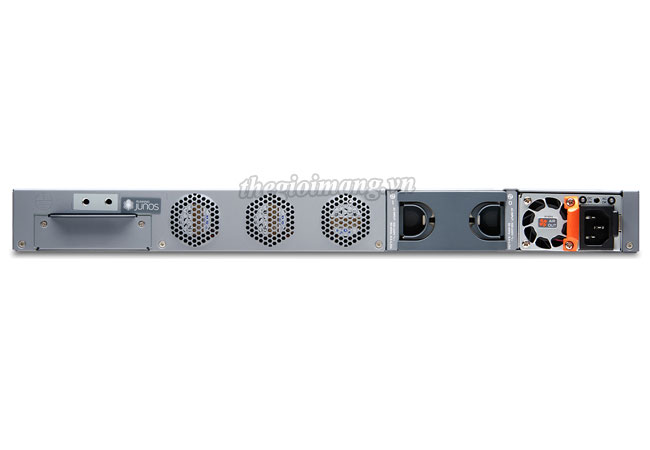

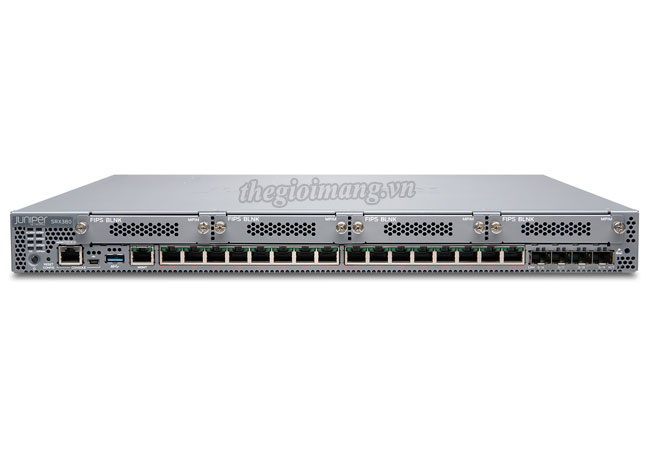

Juniper SRX380-P-SYS-JE-AC

Firewall Juniper SRX380-P-SYS-JE-AC: SRX380 Services Gateway includes hardware (16GbE PoE+, 4x10GbE, 4x MPIM slots, 4GB RAM, 100GB SSD, single AC power supply, cable and RMK) and Junos Sofware Enhanced (firewall, NAT, IPSec, routing, MPLS, switching and applicaton security)
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Firewall Juniper SRX380-P-SYS-JE-AC

Product Name SRX380-P-SYS-JE-AC
Connectivity
Total onboard ports 20 (16x1GbE, 4x10GbE)
Onboard RJ-45 ports 16x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports 4x10GbE SFP+
MACsec-capable ports

16x1GbE; 4x10GbE

Out-of-Band (OOB) management ports 1x1GbE
Mini PIM (WAN) slots 4
Console (RJ-45 + miniUSB) 1
USB 3.0 ports (type A) 1
Optional PoE+ ports 16
Memory and Storage
System memory (RAM) 4 GB
Storage (flash) 100 GB SSD
SSD slots 1
Dimensions and Power
Form factor 1U
Size (WxHxD) 17.36 x 1.72 x 18.7 in. (44.09 x 4.37 x 47.5 cm)
17.36 x 1.72 x 20.47 in. (44.09 x 4.37 x 52 cm)
Weight (device and PSU)

15 lb (6.8 kg) with 1xPSU
16.76 lb (7.6 kg) with 2xPSU

Redundant PSU Yes
Power supply 1+1 hot-swappable AC PSU
Maximum PoE power 480W
Average power consumption

150 W (without PoE); 510 W (with PoE)

Average heat dissipation 511.5 BTU/hr (without PoE)
Maximum current consumption 1.79A/7.32A
Acoustic noise level < 50dBA @ room temperature 27C
Airflow/cooling Front to back
Environmental, Compliance, and Safety Certification
Operating temperature

32° to 104° F (0° to 40° C)with MPIMs
32° to 122° F (0° to 50° C) without MPIMs

Nonoperating temperature -4° to 158° F (-20° to 70° C)
Operating humidity 10% to 90% noncondensing
Nonoperating humidity 5% to 95% noncondensing
Meantime between failures (MTBF) 28.1 years
FCC classification Class A
RoHS compliance RoHS 2
Common Criteria certification N/A
Performance and Scale
Routing with packet mode (64 B packet size) in Kpps5 1,700
Routing with packet mode (IMIX packet size) in Mbps5 5,000
Routing with packet mode (1,518 B packet size in Mbps5 10,000
Stateful firewall (64 B packet size) in Kpps5 1,700
Stateful firewall (IMIX packet size) in Mbps5 4,000
Stateful firewall (1,518 B packet size) in Mbps5 10,000
IPsec VPN (IMIX packet size) in Mbps5 1,000
IPsec VPN (1,400 B packet size) in Mbps5 3,500
Application visibility and control in Mbps6 6,000
Recommended IPS in Mbps6 2,000
Next-generation firewall in Mbps6 1,000
Route table size (RIB/FIB) (IPv4 or IPv6) 1 million/600,0007
Maximum concurrent sessions (IPv4 or IPv6) 380,000
Maximum security policies 4,000
Connections per second 50,000
NAT rules 3,000
MAC table size 16,000
IPsec VPN tunnels 2,048
Number of remote access uses 500
GRE tunnels 2,048
Maximum number of security zones 128
Maximum number of virtual routers 128
Maximum number of VLANs 3,000
AppID sessions 64,000
IPS sessions 64,000
URLF sessions 64,000
WAN Interface
1 port T1/E1 MPIM (SRX-MP-1T1E1-R) Yes
1 port VDSL2 Annex A/M MPIM (SRX-MP-1VDSL2-R) Yes
1 port serial MPIM (SRX-MP-1SERIAL-R) Yes
4G / LTE MPIM (SRX-MP-LTE-AA & SRX-MP-LTE-AE) Yes



Data Sheet Firewall Juniper SRX380-P-SYS-JE-AC

Junos Infomation SRXnnn-SYS-JE
(Junos Software Enhanced)
Hardware Included
Management (CLI, JWEB, SNMP, Telnet, SSH)
Ethernet switching (L2 Forwarding, IRB, LACP etc)
L2 Transparent, Secure Wire
Routing (RIP, OSPF, BGP, Virtual router)
Multicast (IGMP, PIM, SSDP, DMVRP)
Packet Mode
Overlay (GRE, IP-IP)
Network Services (J-Flow, DHCP, QOS, BFD)
Stateful Firewall, Screens, ALGs
NAT (static, SNAT, DNAT)
IPSec VPN (Site-Site VPN, Auto VPN, Group VPN)
Firewall policy enforcement (UAC, Aruba CPPM)
Remote Access VPN L = Per-user license-based
(2 free licenses included)
Chassis Cluster, VRRP, ISSU / ICU
Automation (Junos scripting, auto-installation)
MPLS, LDP, RSVP, L3 VPN, pseudo-wires, VPLS
Application Security (AppID, AppFW, AppQOS, AppRoute)
