XT10-VB Kit - Bộ thiết bị hội nghị Maxhub XCore Room Kit :

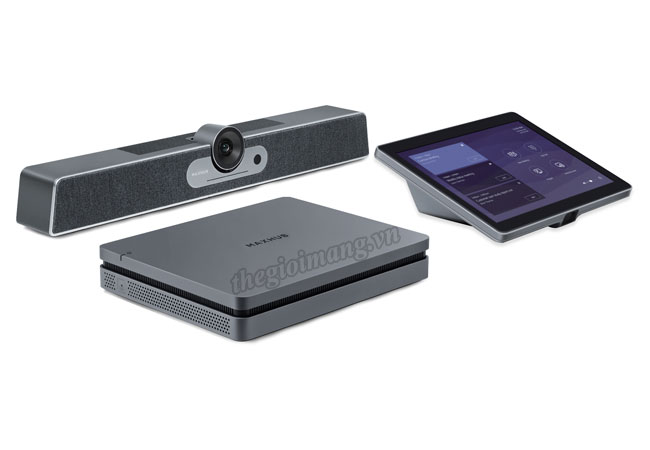

Bộ thiết bị hội nghị Maxhub XT10-VB Kit
XC13T Mini-PC
| Product Specification | |
| Type | Mini-PC |
| CPU | Intel i3-1220P TDP: 28W |
| Memory | 8GB DDR4 3200MHz |
| Optional hard disk | 128GB SATA SSD (M.2-2280 SATA3 up to 6Gb/s) |
| Graphics | Intel® UHD Graphics for 12th Gen Intel® Processors; |
| Chipset | ADL PCH-P |
| Sound Card | USB Audio, HS-100B, Cmedia |
| Network | 1000Mbps RJ45 |
| Operating system | Windows 11 IoT Enterprise SAC |
| Certifications | Microsoft Teams Rooms |
| I/O Port | |
| USB-A 3.0 | 4 |
| LAN | 1 |
| USB-C (For Teams Rooms Console) | 1 |
| HDMI OUT | 1 |
| Audio OUT | 1 |
| AC POWER | 1 |
| Kensington lock slot | 1 |
| Power | |
| Power Supply Mode | AC POWER |
| Power Requirements | 90W |
| Max Power | 100-240V AC 50/60Hz |
| Accessories (included in the package) | |
| Wall Bracket | 1 |
| PC Bracket | 1 |
| Cable Cover Screw | 2 |
| Machine Screw | 4 |
| Expansion Screw | 4 |
| Self-tapping Screw | 4 |
| Cable Cover | 1 |
| HDMI Cable (1.8m/5.9ft) | 1 |
| Power Cord (1.8m/5.9ft) | 1 |
| Quick Start Guide | 1 |
| Physical Specifications | |
| Dimension L × W × H | 230mm × 185mm × 41.5mm |
| Dimension (package) L × W × H | 342 × 246 × 146mm |
| Net Weigh | 1.36kg |
| Gross Weight | 4.36kg |
| Environmental Conditions | |
| Operation Temperature | 0°C-40°C |
| Operation Humidity | 10%-90%RH |
| Storage Temperature | -20°C-60°C |
| Storage Humidity | 10%-90%RH |
| Altitude | Below 5000m |
TCP20T Touch Control Panel
| Display | |
| Size | 10.1 inch |
| Life Time | ≥ 20000 Hours |
| NTSC | Min.62%, Typ.65% |
| Frequency Refresh Rate | 60Hz |
| Resolution | 1920 (H) x 1200 (V) |
| Back Light Unit | ELED |
| Brightness with glass | Min.250cd/m², Typ.300cd/m² |
| Touch System | |
| Touch | Tool Finger |
| Touch Point | 10 points touch |
| Type | Capacitive touch |
| Accuracy | ± 2mm / 0.08" |
| Minimum object | size 6mm / 0.24" |
| I/O Port | |
| HDMI INGEST (SCREEN SHARE) | 1 |
| USB-A (USB PERIPHERAL) | 1 |
| USB-C (TO PC) | 1 |
| 3.5mm (AUDIO OUT) | 1 |
| Physical Specifications | |
| Dimension (package) L×W×H | 332 × 246 × 166mm |
| Gross Weight | 2.38kg |
| Dimension L×H×D | 245 × 164.3 × 77.4mm |
| Net Weight | 880g |
| Accessories (included in the package) | |
| HDMI Cable 1.8m / 5.9ft | ×1 |
| USB Type-C Cable (Type C-C) 5m / 16.4ft | ×1 |
| Quick Start Guide ×1 | ×1 |
| Power | |
| Power Requirements | 15V 3A (Type-C PD) |
| Standby Power | ≤ 0.5W |
| Overall Power (Max.) 20W | 20W |
| Environmental Conditions | |
| Operation Humidity | 10%~90%RH |
| Storage Humidity | 10%~90%RH |
| Operation Temperature | 0°C-40°C / 0°F-104°F |
| Storage Temperature | -20°C-60°C / -4°F-140°F |
| Altitude | Below 5000m/ 196850" |
UC S07 VideoBar
| Camera | |
| Sensor | 1/2.3-inch 12MP Sony sensor |
| Pixel | 12MP |
| Resolution and Frame Rate | |
| H.264/MJPEG | (1) 3840 x 2160, (2) 2560 x 1440, (3) 1920 x 1080, (4) 1280 x 720, (5) 1024 x 576, (6) 960 x 540, (7) 800 x 600, (8) 640 x 480, (9) 640 x 360, (10) 480 x 270, (11) 352 x 288, (12) 320 x 240 |
| YUY2 | (1) 640 x 480, (2) 640 x 360, (3) 480 x 270, (4) 352 x 288, (5) 320 x 240, (6) 320 x 180, (7) 160 x 120 |
| ZOOM | 5x Digital Zoom |
| Output Format | MJPG; YUY2; H.264 |
| Field Of View | 120° (D) |
| Adjustable Angle | ± 15° (V) |
| Focus Mode | Fixed-Focus |
| Focus Distance | 1m/39.4" |
| Special Features | • Auto Framing: automatic adjustment FOV to fit in all participants • Speaker Tracking: voice triggered people tracking • 10 Zooming Pre-sets for instant setting up |
| Power | |
| Overall Power(Max.) | 10W |
| PoE Power | Yes (IEEE 802.3af or 802.3at) |
| Power Requirements | 12V |
| Audio | |
| Speaker | |
| Sound Chanel | 1.1 |
| Output Power | 8W + 3W |
| Maximum Sound Pressure | 80dBSPL@1m |
| Frequency Range | 150Hz ~ 18kHz |
| Signal to Noise Ratio | >75dB |
| Microphone | |
| Voice Pickup Range | 8m/314.96" |
| Frequency Range | 100Hz ~ 7.5kHz |
| Microphone Quantity | 6 |
| Special Features | Noise Reduction, Echo Cancellation, Anti-Reverberation, Built-in AGC Algorithm |
| Input/Output Port | |
| Audio Out | Used for external audio equipment |
| USB 3.0 Type-C | Connect USB host, upgrade system, etc. |
| DC 2.0 | Used for 12V power input power supply |
| RJ45 | No IP Support, only provides PoE power |
| Compatibility | Support major VC software including ZOOM, Microsoft® Teams, Google Meet, Google Hangouts, Cisco WebEx®, RingCentral, etc |
| System Requirements | Supports Windows XP/7/8.1/10/11, Android 8.1 or higher, and MAC OS 10.12 or higher |
| Physical Specifications | |
| Dimension(Lx Hx D) | 462 x 76 x 93 mm |
| Dimension(package)(Lx Hx D) | 1pcs 538 x 160 x 169 mm |
| Gross Weight | 1pcs 2.55kg |
| Net Weight | 1.05Kg |
| Environmental Condition | |
| Operation Temperature | 0°C - 40°C |
| Operation Humidity | 10% - 90%RH |
| Storage Temperature | -20°C - 60°C |
| Storage Humidity | 10% - 90%RH |
| Altitude Below | 5000m |
