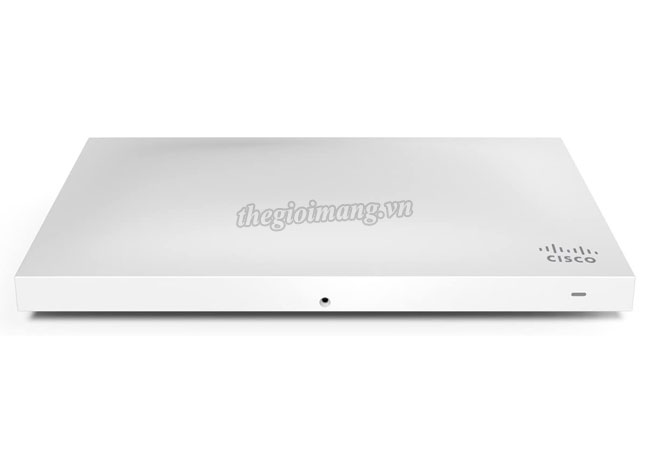

Meraki MR42-HW

MR42-HW Meraki MR42 Cloud Managed AP ● 1 × Gigabit Ethernet port ● 802.3af/at PoE or DC power adapter ● 1 × 2.4 GHz 802.11b/g/n ● 1 × 5 GHz 802.11a/n/ac ● 1.9 Gbit/sec max rate ● License Options
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Bộ phát không dây Meraki MR42 Wi-Fi Indoor AP MR42-HW --> đã EOS dòng thay thế Meraki MR44

Model MR42-HW
Usage General purpose 802.11ac Wave 2 for campus and enterprise
Radio specification 1 × 2.4 GHz 802.11b/g/n
1 × 5 GHz 802.11a/n/ac
1 × WIDS/WIPS
1 × Bluetooth
1.9 Gbit/sec max rate
3×3:3 MU-MIMO with beamforming
Interface 1 × Gigabit Ethernet port
Power 802.3af/at PoE or DC power adapter
Performance features 3×3:3 MU-MIMO
Priority Voice, Power Save (802.11e/WMM)
Hardware-accelerated encryption
Band steering
Dimensions 10.0” x 6.1” x 1.5” (25.3 cm x 15.6 cm x 3.7 cm)
Weight 25 oz (0.7 kg)
Tùy chọn License cho WiFi Meraki MR series
License Description
Meraki Enterprise License
LIC-ENT-1YR Cisco Meraki MR Enterprise License and Support, 1 Year
LIC-ENT-3YR Cisco Meraki MR Enterprise License and Support, 3 Years
LIC-ENT-5YR Cisco Meraki MR Enterprise License and Support, 5 Years
LIC-ENT-7YR Cisco Meraki MR Enterprise License and Support, 7 Years
LIC-ENT-10YR Cisco Meraki MR Enterprise License and Support, 10 Years
Meraki Advanced License
LIC-MR-ADV-1Y Cisco Meraki MR Advanced License and Support, 1 Year
LIC-MR-ADV-3Y Cisco Meraki MR Advanced License and Support, 3 Years
LIC-MR-ADV-5Y Cisco Meraki MR Advanced License and Support, 5 Years
Meraki Upgrade License
LIC-MR-UPGR-1Y Cisco Meraki MR ENT to ADV Upgrade License, 1 Year
LIC-MR-UPGR-3Y Cisco Meraki MR ENT to ADV Upgrade License, 3 Year
LIC-MR-UPGR-5Y Cisco Meraki MR ENT to ADV Upgrade License, 5 Years



MR42-HW : Meraki MR42 Cloud Managed AP

Data sheet Cloud-Managed Wireless Access Points MR Series

Thông số kỹ thuật:

  • Radios
    • 2.4 GHz 802.11b/g/n client access radio
    • 5 GHz 802.11a/n/ac client access radio
    • 2.4 & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
    • 2.4 GHz Bluetooth radio with Bluetooth Low Energy and Beacon support
    • Concurrent operation of all four radios
    • Max aggregate frame rate 1.9 Gbit/s
    • Supported frequency bands (country-specific restrictions apply):
      • 2.412-2.484 GHz
      • 5.150-5.250 GHz (UNII-1)
      • 5.250-5.350 GHz (UNII-2)
      • 5.470-5.600, 5.660-5.725 (UNII-2e)
      • 5.725-5.825 GHz (UNII-3)
  • Antenna
    • Integrated omni-directional antennas (5 dBi gain at 2.4 GHz, 5.5 dBi gain at 5 GHz)
    • Individual antenna elements for each radio
  • 802.11ac Wave 2 & 802.11n Capabilities
    • 3x3 multiple input, multiple output (MIMO) with three spatial streams
    • SU-MIMO and MU-MIMO support
    • Maximal ratio combining (MRC) & beamforming
    • 20 & 40 MHz channels (802.11n)
    • 20, 40, & 80 MHz channels (802.11ac)
    • Up to 256-QAM on both 2.4 & 5 GHz
    • Packet aggregation
  • Power
    • Power over Ethernet: 37 - 57 V (802.3af compatible, with functionality-restricted 802.3af mode supported)
    • Alternative 12V DC input
    • Power consumption: 20 W max (802.3at)
    • Power over Ethernet injector and DC adapter sold separately
  • LED Indicators
    • Multi-color & multi-function status indicator
  • Interfaces
    • 1 × 10/100/1000Base-T Ethernet (RJ45)
    • 1 × DC power connector (5.5mm x 2.5mm, center positive)
  • Mounting
    • All standard mounting hardware included
    • Desktop, ceiling, and wall mount capable
    • Ceiling tile rail (9/16, 15/16 or 1 ½" flush or recessed rails)
    • Assorted cable junction boxes
    • Bubble level on mounting cradle for accurate horizontal wall mounting
  • Physical Security
    • Security screw included
    • Kensington lock hard point
    • Anti-tamper cable bay
    • Concealed mount plate
  • Environment
    • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
    • Humidity: 5 to 95% non-condensing
  • Physical Dimensions
    • 10.0” x 6.1” x 1.5” (253.4 mm x 155.8 mm x 37.1 mm), not including deskmount feet or mount plate
    • Weight: 25 oz (0.7kg)
  • Security
    • Integrated Layer 7 firewall with mobile device policy management
    • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
    • Flexible guest access with device isolation
    • VLAN tagging (802.1q) and tunneling with IPsec VPN
    • PCI compliance reporting
    • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
    • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
    • TKIP and AES encryption
    • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
  • Quality of Service
    • Advanced Power Save (U-APSD)
    • WMM Access Categories with DSCP and 802.1p support
    • Layer 7 application traffic identification and shaping
  • Mobility
    • PMK and OKC credential support for fast Layer 2 roaming
    • Distributed or centralized Layer 3 roaming
  • Analytics
    • Embedded location analytics reporting and device tracking
    • Global L7 traffic analytics reporting per network, per device, & per application
  • Warranty
    • Lifetime hardware warranty with advanced replacement included
  • Ordering Information
    • MR42-HW Meraki MR42 Cloud Managed 802.11ac AP
    • MA-PWR-30W-XX Meraki AC Adapter for MR Series (XX = US, EU, UK, or AU)
    • MA-INJ-4-XX Cisco Meraki 802.3at PoE Injector (XX = US, EU, UK, or AU)
