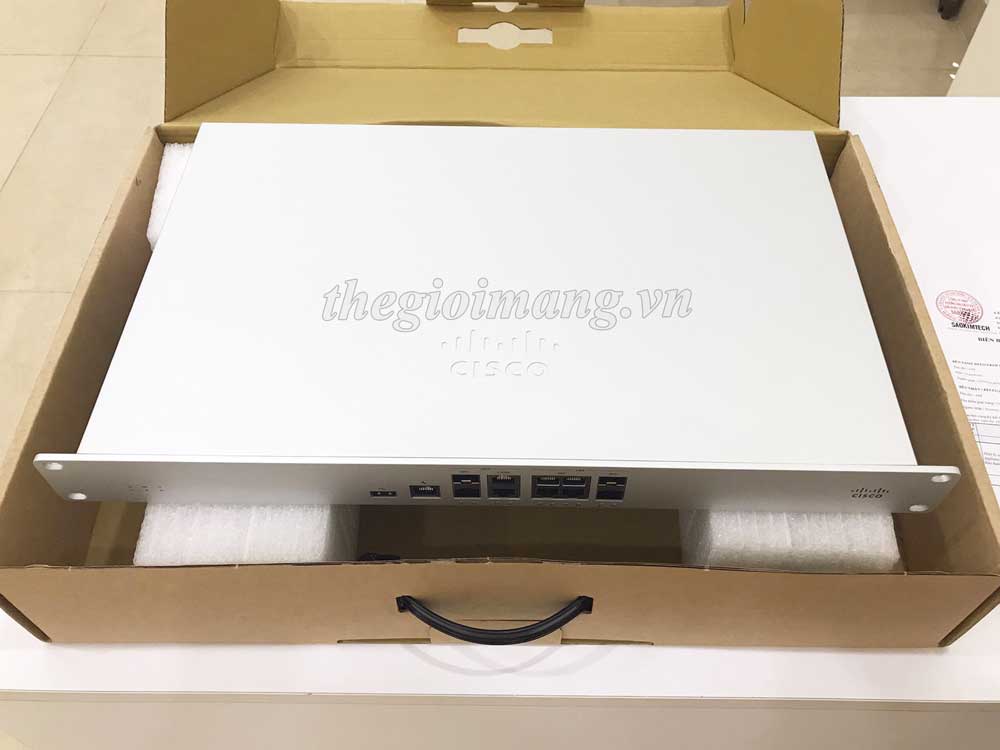

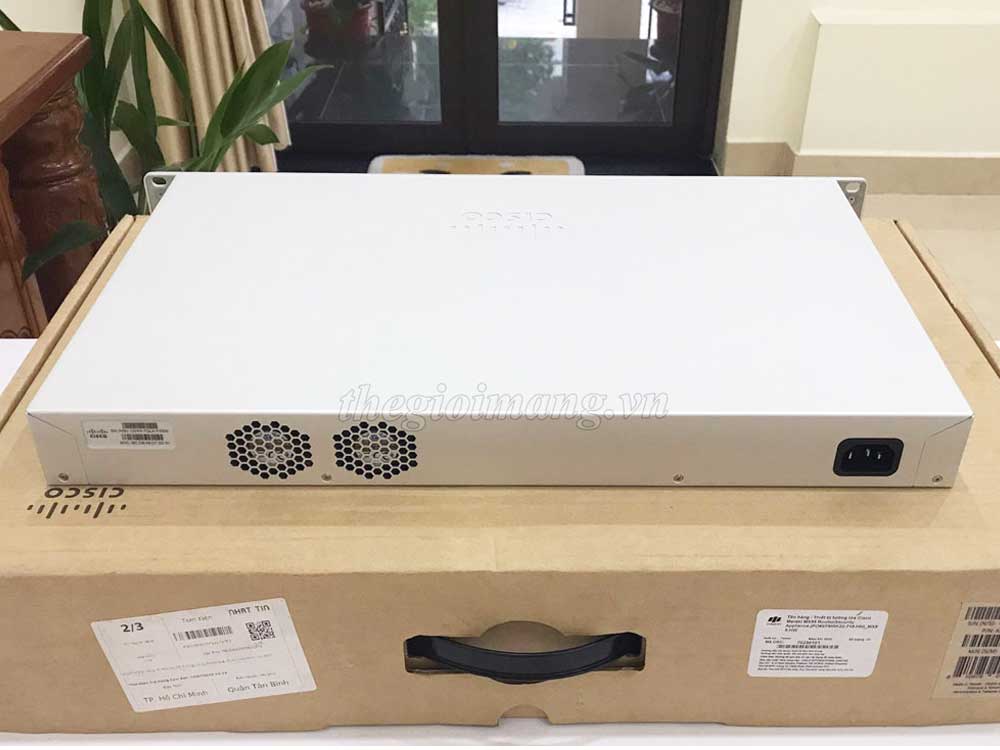

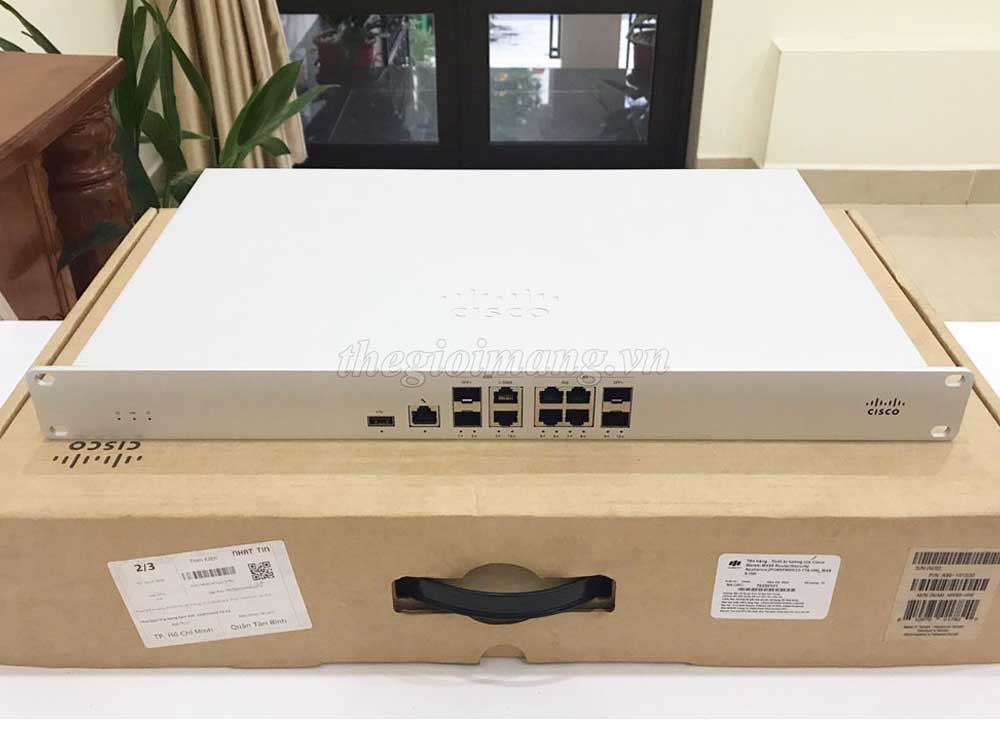

Meraki MX95-HW

MX95-HW Cisco Meraki MX95 Security and SD-WAN Appliance

WAN: 2x 10G SFP+, 2x 2.5GbE RJ45 (1x PoE), 1x USB (cellular failover)
LAN: 4x GbE RJ45, 2x 10GbE SFP+
Firewall Throughput: 2.5 Gbps
VPN Throughput: 2.5 Gbps
Recommended clients: 500
License Options: Enterprise, Advanced Security, Secure SD-WAN

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Tường lửa Meraki MX95 là thiết bị bảo mật doanh nghiệp được thiết kế để triển khai phân tán với nhu cầu quản trị từ xa trên các môi trường chi nhánh cỡ Trung bình. Nó lý tưởng cho các quản trị viên mạng yêu cầu tính năng dễ triển khai và bộ tính năng hiện đại. Bảng điều khiển (Dashboard) Meraki cho phép triển khai MX95 đơn giản và dễ dàng với cấu hình trước tối thiểu ở hầu hết mọi vị trí.

Meraki MX95 có 4 cổng WAN (2x10G SFP+ và 2x2.5GbE RJ45), 6 cổng LAN (4xGE RJ45 và 2x10G SFP+). MX95 phù hợp để triển khai cho nhiều môi trường doanh nghiệp.

Meraki MX95

Meraki MX95 cung cấp các tính năng sau:

Được quản lý thông qua Bảng điều khiển Cisco Meraki
Tự động nâng cấp Firmware
Cân bằng liên kết WAN
Tự động chuyển đổi dự phòng WAN
SD-WAN qua Meraki AutoVPN
Tường lửa trạng thái L3/L7
Quy tắc tường lửa dựa trên địa lý
NAT 1:1 và 1: Many
Hỗ trợ Vlan / DHCP có thể định cấu hình
Định tuyến tĩnh
Điểm cuối VPN máy khách
Điểm cuối Meraki AutoVPN và L2TP/IPSec VPN
Tích hợp Active Directory
Lọc nội dung
Bảo vệ phần mềm độc hại (AMP) với tích hợp Threat Grid tùy chọn
Bảo vệ IDS/IPS
Định hình lưu lượng truy cập tùy chỉnh
Thống kê sử dụng khách hàng trong lịch sử
Hỗ trợ luồng mạng
Tích hợp nhật ký hệ thống
Công cụ chụp gói từ xa

Thông số kỹ thuật Meraki MX95

Meraki Model	MX95
Recommended Use Cases	Medium to large branch with up to 500 users
NGFW throughput	2.5 Gbps
Advanced Security Throughput	2.5 Gbps
Maximum site-to-site VPN Throughput	2.5 Gbps
Maximum site-to-site VPN Tunnels	500
WAN Interfaces (Dedicated)	2x 10 GbE SFP+ 2x 2.5 GbE RJ45 (1x PoE+)
LAN Interfaces (fixed)	4x GbE RJ45 2x 10 GbE SFP+
Mounting	1U rack
Dimensions (W x D x H)	19.08” x 11.23“ x 1.73” (484.6 mm x 285.2 mm x 44 mm)
Weight	6.99 lb (3.17 kg)
Power Supply	Internal 100-127VAC, 200-240VAC (50/60Hz)
Power Load (idle/max)	42W / 109W
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95%

Tùy chọn License cho Cisco Meraki MX95

License	Description
Enterprise License and Support
LIC-MX95-ENT-1YR	Cisco Meraki MX95, 1-year Enterprise License and Support
LIC-MX95-ENT-3YR	Cisco Meraki MX95, 3-year Enterprise License and Support
LIC-MX95-ENT-5YR	Cisco Meraki MX95, 5-year Enterprise License and Support
Advanced Security License and Support
LIC-MX95-SEC-1YR	Cisco Meraki MX95, 1-year Advanced Security License and Support
LIC-MX95-SEC-3YR	Cisco Meraki MX95, 3-year Advanced Security License and Support
LIC-MX95-SEC-5YR	Cisco Meraki MX95, 5-year Advanced Security License and Support
Secure SD-WAN Plus License and Support
LIC-MX95-SDW-1YR	Cisco Meraki MX95, 1-year Secure SD-WAN Plus License and Support
LIC-MX95-SDW-3YR	Cisco Meraki MX95, 3-year Secure SD-WAN Plus License and Support
LIC-MX95-SDW-5YR	Cisco Meraki MX95, 5-year Secure SD-WAN Plus License and Support

MX95-HW : Meraki MX95 Security and SD-WAN Appliance

Data sheet Meraki MX Series

Management
- Managed via the web using the Cisco Meraki dashboard
- Single dashboard management of wired and wireless networks
- Zero-touch remote deployment (no staging needed)
- Automatic firmware upgrades and security patches
- Template-based multi-network management
- Org-level two-factor authentication and single sign-on
- Role-based administration with change logging and alerts
Network and firewall services
- NGFW, 1:1 NAT, DMZ
- Identity-based policies
- Auto VPN: automated site-to-site (IPsec) VPN for
- hub-and-spoke or mesh topologies
- Client (IPsec L2TP) VPN
- Multiple WAN IP, PPPoE, NAT
- VLAN support and DHCP services
- Static routing
- User and device quarantine
Advanced security services
- Content filtering (Webroot BrightCloud CIPA-compliant
- URL database)
- Web-search filtering (including Google/Bing SafeSearch)
- YouTube for Schools
- Intrusion-prevention sensor (Cisco SNORT®-based)
- Cisco Advanced Malware Protection (AMP)
- AMP Threat Grid
Monitoring and reporting
- Throughput, connectivity monitoring, and email alerts
- Detailed historical per-port and per-client usage statistics
- Application usage statistics
- Org-level change logs for compliance and change management
- VPN tunnel and latency monitoring
- Network asset discovery and user identification
- Periodic emails with key utilization metrics
- Device performance and utilization reporting
- Netflow support
- Syslog integration
WAN Performance Management
- WAN link aggregation
- Automatic layer 3 failover (including VPN connections)
- 3G/4G USB modem failover or single uplink
- Application-level (layer 7) traffic analysis and shaping
- Ability to choose WAN uplink based on traffic type
- SD-WAN: dual-active VPN with policy-based routing and dynamic path selection
Monitoring and Management
- Web based management and configuration
- Throughput, connectivity monitoring and alerts
- Network asset discovery and user identification
- Built-in network-wide reporting, monitoring and alerts
- Centralized policy management
- Real-time diagnostic and troubleshooting over the web
- Automatic firmware upgrades and security patches
- Searchable network-wide event logs
Management
- Live remote packet capture
- Real-time diagnostic and troubleshooting tools
- Aggregated event logs with instant search
Interfaces
- WAN: 2 × 10 GbE SFP+, 2 × 2.5 GbE RJ45 (1x PoE+)
- LAN: 4 × GbE RJ45, 2 × 10 GbE SFP+
Performance
- Stateful firewall throughput: 2.5 Gbps
- VPN throughput: 2.5 Gbps
- Site-to-site VPN Tunnels : 500
- Recommended for Medium to large branch (up to 500 users)
Power
- Internal 100-127VAC, 200-240VAC (50/60Hz)
Environment
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5 to 95% non-condensing
Warranty
- Lifetime hardware warranty with advanced replacement included

Tùy chọn Phụ kiện / SFP Transceivers

Product ID	Description
MA-PWR-150WAC	1x Meraki MX105 power supply unit (PSU)
MA-PWR-CORD-EU	1x AC power cable, EU. plug
MA-RCKMNT-KIT-1	Rack mount screws kit. (Not included with MX95 and MX105)
MA-SFP-1GB-SX	Multi-mode fiber (MMF)
MA-SFP-1GB-LX10	Single-mode fiber (SMF)
MA-SFP-1GB-TX	N/A (RJ45 copper SFP)
MA-SFP-10GB-SR	Multi-mode fiber (MMF)
MA-SFP-10GB-LR	Single-mode fiber (SMF)
MA-SFP-10GB-LRM	Single-mode fiber (SMF)
MA-SFP-10GB-LRM	Multi-mode fiber (MMF)
MA-SFP-10GB-ER	Single-moder fiber (SMF)
MA-SFP-10GB-ZR	Single-mode fiber (SMF)
MA-CBL-TA-1M	10 GSFP+Cu, 1 m passive twinax
MA-CBL-TA-3M	10 GSFP+Cu, 3 m passive twinax
