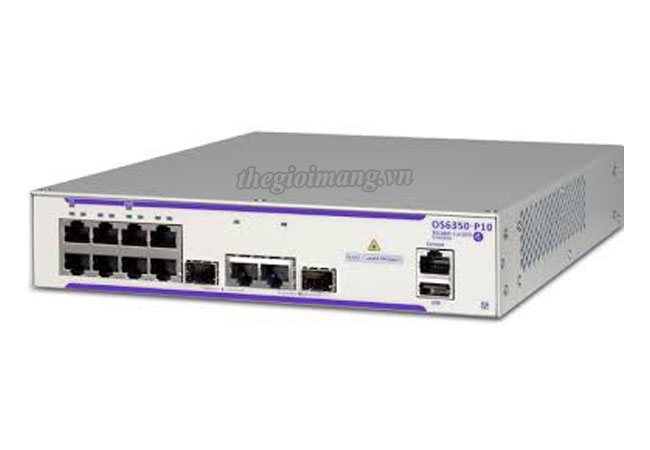

Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6350-P10
| Model | OS6350-P10 |
| RJ-45 10/100/1000 ports | 8 |
| RJ-45/SFP 10/100/1000 combo ports | 2 |
| PoE ports | 8 |
| Dimensions | |
| Switch width | 21.5 cm (8.50 in) |
| Switch height | 4.4 cm (1.73 in) |
| Switch depth | 28 cm (11 in) |
| Performance (aggregated) | |
| Switch capacity (with 2GigE uplinks) | 20 Gb/s |
| Max frame rate (2GigE uplinks) | 14.88 Mp/s |
| Operating conditions | |
| Operating temperature | 0°C to +45°C 32°F to +113°F |
| Storage temperature | -40°C to +75°C -40°F to +167°F |
| Humidity (operating and storage) | 5% — 95% |
| MTBF (hours) | 547,284 |
| Power supply efficiency | 85,60% |
| Fanless design (Yes/No) | Yes |
| Acoustic (dB) | 0 |
| System power consumption (watts/BTU) | |
| 100% traffic | 15.2 W/51.86 |
| PoE power budget | 120W |
| Max PoE power/port (up to the power budget) | 31 W |
Transceivers and stacking cables
| SFP-GIG-LH70 | 1000Base-LH transceiver with an LC interface for single mode fiber over 1550 nm wavelength. Typical reach of 70 km. |
| SFP-GIG-LH40 | 1000Base-LH transceiver with an LC interface for single mode fiber over 1310 nm wavelength. Typical reach of 40 km. |
| SFP-GIG-LX | 1000Base-LX transceiver with an LC interface for single mode fiber over 1310 nm wavelength. Typical reach of 10 km |
| SFP-GIG-SX | 1000Base-SX transceiver with an LC interface for multimode fiber over 850 nm wavelength. Typical reach of 300 m. |
| SFP-GIG-EXTND | 1000Base-SX transceiver with an LC interface for single mode fiber over 850 nm wavelength. Typical reach of 2 km. |
| SFP-GIG-T 1000 | Base-T Gigabit ethernet transceiver Supports category 5, 5E, and 6 copper cabling up to 100m. SFP supports 1000 Mbit/s ONLY on the OS6350 SFP ports |
| OS6350-CBL-60CM | 60 centimeters long 5Gbs SFP+ direct stacking cable for OS6350 24 and 48 port models |
| OS6350-CBL-1M | 1M meter long 5Gbs SFP+ direct stacking cable for OS6350 24 and 48 port models |
| OS6350-CBL-3M | 3M meters long 5Gbs SFP+ direct stacking cable for OS6350 24 and 48 port models |
| OS6350-CBL-7M | 7M meters long 5Gbs SFP+ direct stacking cable for OS6350 24 and 48 port models |
OS6350-P10 : Gigabit Ethernet standalone chassis in a 1U by 1/2 rack form factor with 8 10/100/1000 Base-T ports, 2 Gigabit RJ45/SFP ports.
Data sheet Alcatel-Lucent OmniSwitch 6350 Gigabit Ethernet LAN switch family
