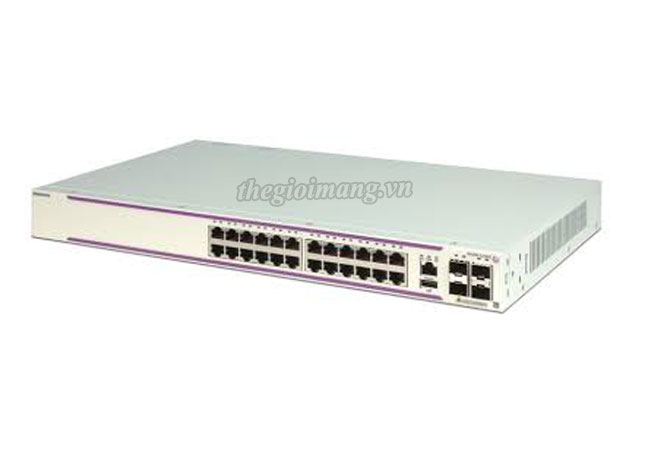

Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6350-P24
| Model | OS6350-P24 |
| RJ-45 10/100/1000 ports | 24 |
| Performance (Gigabit models) | |
| Switch capacity with 4xGb/suplinks | 56 Gb/s |
| Switch frame rate with 4xGb/s uplinks | 41.66 Mp/s |
| Port | |
| Gigabit SFP ports | 4 |
| Gigabit/5Gb/s Stacking Ports | 2/2 |
| PoE ports | 24 |
| Dimensions | |
| Width | 44.0 cm (17.32 in) |
| Height | 4.4 cm (1.73 in) |
| Depth | 25.2 cm (9.92 in) |
| Weight | 5.05 kg (11.0 lb) |
| Operating conditions | |
| Operating temperature | 0°C to +45°C 32°F to +113°F |
| Storage temperature | -40°C to +75°C -40°F to +167°F |
| Humidity (operating and storage) | 5% — 95% |
| Fan (variable speed)* | 3 fans |
| Acoustic (dB) at 27°C | < 32 dB (A) |
| Mean Time Between Failures (MTBF) at 25°C (hours) | 421,866 |
| System power consumption (W)** | 30 W |
| Power supply specifications | |
| Internal/external | Internal |
| Nominal Input voltage | 90-220 V AC |
| Output voltage | 12V DC/54V DC |
| Wattage | 525 W |
| PoE power budget | 380 W |
| PoE device heat dissipation (BTU) | 1296 |
| Power supply efficiency | 85% |
Transceivers and stacking cables
| SFP-GIG-LH70 | 1000Base-LH transceiver with an LC interface for single mode fiber over 1550 nm wavelength. Typical reach of 70 km. |
| SFP-GIG-LH40 | 1000Base-LH transceiver with an LC interface for single mode fiber over 1310 nm wavelength. Typical reach of 40 km. |
| SFP-GIG-LX | 1000Base-LX transceiver with an LC interface for single mode fiber over 1310 nm wavelength. Typical reach of 10 km |
| SFP-GIG-SX | 1000Base-SX transceiver with an LC interface for multimode fiber over 850 nm wavelength. Typical reach of 300 m. |
| SFP-GIG-EXTND | 1000Base-SX transceiver with an LC interface for single mode fiber over 850 nm wavelength. Typical reach of 2 km. |
| SFP-GIG-T 1000 | Base-T Gigabit ethernet transceiver Supports category 5, 5E, and 6 copper cabling up to 100m. SFP supports 1000 Mbit/s ONLY on the OS6350 SFP ports |
| OS6350-CBL-60CM | 60 centimeters long 5Gbs SFP+ direct stacking cable for OS6350 24 and 48 port models |
| OS6350-CBL-1M | 1M meter long 5Gbs SFP+ direct stacking cable for OS6350 24 and 48 port models |
| OS6350-CBL-3M | 3M meters long 5Gbs SFP+ direct stacking cable for OS6350 24 and 48 port models |
| OS6350-CBL-7M | 7M meters long 5Gbs SFP+ direct stacking cable for OS6350 24 and 48 port models |
OS6350-P24 : Gigabit Ethernet stackable chassis in a 1RU form factor with 24 10/100/1000 PoE Base-T ports, 2 Gigabit SFP ports and 2 SFP uplink/stacking ports
Data sheet Alcatel-Lucent OmniSwitch 6350 Gigabit Ethernet LAN switch family
