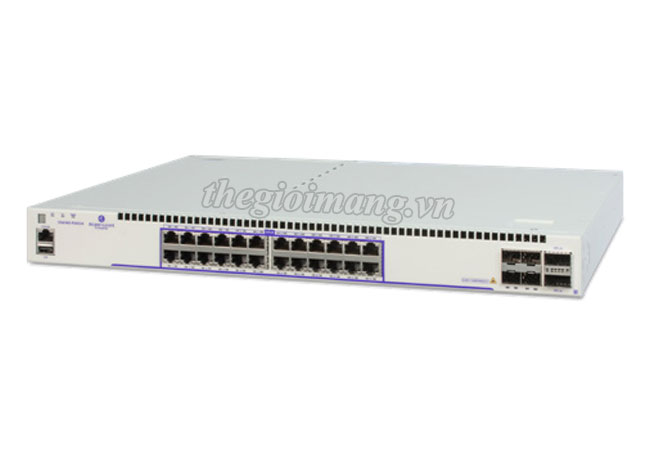

Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6560-PXZ24
Model | OS6560-PXZ24 |
Gigabit PoE port count | 24 |
Multi-Gigabit port count | 24 |
1G/10G SFP+ | 4 |
20G QSFP+ stacking ports | 2 |
MACSec capable ports | 0 |
USB port | 1 |
IEEE 1588v2 PTP support | N/S |
Console port | 1 |
Primary slide-in PSU slot | 1 |
Backup slide-in PSU slot | 1 |
Fans | 2 |
File system flash | 2 GB |
RAM | 2 GB |
Max switching ASIC capacity | 336 Gb/s |
Switch Capacity with 4x10GE ports and 2x20GE stacking ports (all ports, full duplex) | 280 Gb/s |
Switch frame rate with 4x10GE ports and 2x20GE stacking ports @ 64-byte packet | 208 Mpps |
Stacking Capacity (aggregated) | 80 Gb/s |
System power consumption | 42 W/92 W |
System heat dissipation | 143/314 (BTU/h) |
Power consumption w/PoE | 600 W |
Heat dissipation w/PoE | 2047 (BTU/h) |
Acoustics (dB) @27C* | 37-54 (dBA) |
MTBF (hours) | 372k/352k |
Height | 4.4 cm (1.73 in) |
Width | 44 cm (17.33 in) |
Depth | 35 cm (13.78 in) |
Weight | 4.58 kg (10.1 lb) |
Operating temperature | 0° C to 45° C (32° F to 113° F) |
Storage temperature | -40° C to 85° C (-40° F to 185° F) |
Humidity (operating) | 5% to 95% non-condensing |
Power supplies
OS6560-BP-P | OS6560-BP-P modular 300W AC PoE backup power supply. Provides system and PoE backup power to one OS6560 PoE switch. Ships with power cord. |
OS6560-BP-PH | OS6560-BP-PH modular 600W AC PoE backup power supply. Provides system and PoE backup power to one OS6560 PoE switch. Ships with power cord. |
OS6560-BP-PX | OS6560-BP-PX modular 920W AC PoE backup power supply. Provides system and PoE backup power to one OS6560 PoE switch. Ships with power cord. |
Transceivers and cables
OS6560-CBL-40 | OS6560 20 Gigabit direct attached stacking copper cable (40 cm, QSFP+) |
OS6560-CBL-100 | OS6560 20 Gigabit direct attached stacking copper cable (100 cm, QSFP+) |
OS6560-CBL-300 | OS6560 20 Gigabit direct attached stacking copper cable (300 cm, QSFP+) |
SFP-10G-C1M | 10 Gigabit direct attached uplink/stacking copper cable (1 m, SFP+) |
SFP-10G-C3M | 10 Gigabit direct attached uplink/stacking copper cable (3 m, SFP+) |
SFP-10G-C7M | 10 Gigabit direct attached uplink/stacking copper cable (7 m, SFP+) |
SFP-GIG-T | 1000Base-T Gigabit Ethernet Transceiver (SFP MSA). SFP works at 1000 Mb/s speed and full-duplex mode |
SFP-GIG-SX | 1000Base-SX Gigabit Ethernet optical transceiver (SFP MSA) |
SFP-GIG-LX | 1000Base-LX Gigabit Ethernet optical transceiver (SFP MSA) |
SFP-GIG-LH40 | 1000Base-LH Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 40 km on 9/125 µm SMF |
SFP-GIG-LH70 | 1000Base-LH Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 70 km on 9/125 µm SMF |
SFP-10G-SR | 10 Gigabit optical transceiver (SFP+). Supports multimode fiber over 850 nm wavelength (nominal) with an LC connector. Typical reach of 300 m |
SFP-10G-LR | 10 Gigabit optical transceiver (SFP+). Supports monomode fiber over 1310 nm wavelength (nominal) with an LC connector. Typical reach of 10 km |
SFP-10G-ZR | 10 Gigabit optical transceiver (SFP+). Supports data transmission at 1550 nm over up to 80km single mode fiber. LC connector type. |
SFP-10G-ER | 10 Gigabit optical transceiver (SFP+). Supports monomode fiber over 1550 nm wavelength (nominal) with an LC connector. Typical reach of 40 km |
OS6560-PXZ24 : A bundle of OS6560-P24Z24 with a 920W power supply. Multi-GigE fixed chassis in 1RU size. Includes 24 RJ-45 100/1G/2.5G BaseT HPoE, 4xSFP+ (1G/10G) and 2x20G stacking ports, 920W AC supply, power cord, user guides, and 19” rack mount hardware.
