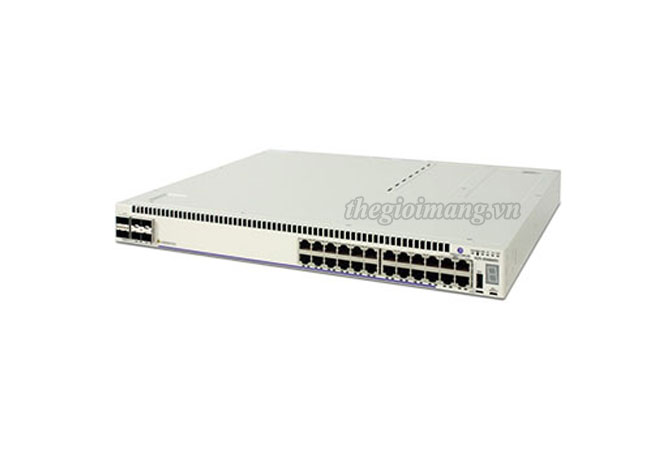

Thiết bị mạng Alcatel-Lucent OmniSwitch OS6860E-24
| Model Product | OS6860E-24 |
| Gigabit port count | 24 |
| 1G/10G SFP+ | 4 |
| 20G QSFP+ VFL ports | 2 |
| USB port | 1 |
| Out-of-band EMP port | 1 |
| RS-232 port | 1 |
| Console port | 1 |
| Primary slide-in PSU slot | 1 |
| Backup slide-in PSU slot | 1 |
| Fans | 0 |
| File system flash | 2 GB |
| RAM | 2 GB |
| Max raw fabric capacity | 224 Gb/s |
| Throughput (at 64-byte packet) | 154.9 Mpps |
| Power consumption (idle)** | 38.9 W |
| Power consumption (full load)** | 48.0 W |
| Heat dissipation (idle)** | 132.7 BTU/h |
| MTBF with AC power supply | 353,806 h |
| Acoustic noise (dB) at 25C | 45,8 |
| Height | 4.4 cm (1.73 in) |
| Width | 44 cm (17.33 in) |
| Depth | 35 cm (13.78 in) |
| Weight (chassis and fan) | 4.58 kg (10.1 lb) |
| Weight (fully populated)*** | 5.26 kg (11.6 lb) |
| Altitude | 13,000 ft |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |
| Power supplies | OS6860-BP OS6860-BP-D |
| IEEE 802.3at PoE ports | - |
| 60 W of PoE ports | - |
| Air flow | Front to back |
