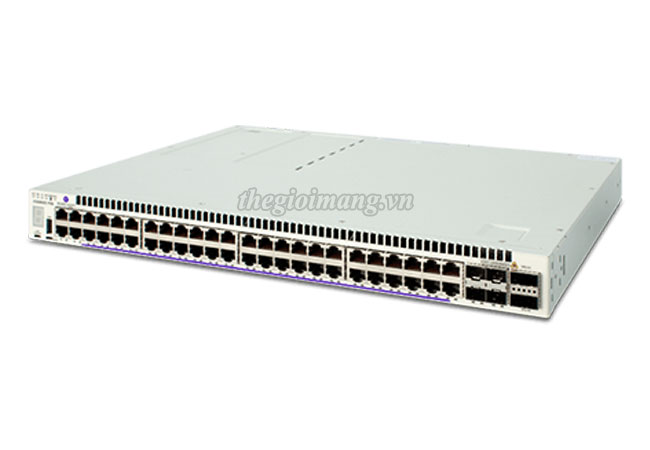

Thiết bị mạng Alcatel-Lucent OmniSwitch OS6860E-P48
Model Product | OS6860E-P48 |
Gigabit port count | 48 (PoE) |
1G/10G SFP+ | 4 |
20G QSFP+ VFL ports | 2 |
USB port | 1 |
Out-of-band EMP port | 1 |
RS-232 port | 1 |
Console port | 1 |
Primary slide-in PSU slot | 1 |
Backup slide-in PSU slot | 1 |
Fans | 1 |
File system flash | 2 GB |
RAM | 2 GB |
Max raw fabric capacity | 264 Gb/s |
Throughput (at 64-byte packet) | 190.6 Mpps |
Power consumption (idle)** | 72.9 W |
Power consumption (full load)** | 904 W |
Heat dissipation (idle)** | 248.7 BTU/h |
MTBF with AC power supply | 121,442 h |
Acoustic noise (dB) at 25C | 43,5 |
Height | 4.4 cm (1.73 in) |
Width | 44 cm (17.33 in) |
Depth | 35 cm (13.78 in) |
Weight (chassis and fan) | 5.03 kg (11.1 lb) |
Weight (fully populated)*** | 6.49 kg (14.3 lb) |
Altitude | 13,000 ft |
Operating temperature | 0°C to 45°C (32°F to 113°F) |
Storage temperature | -40°C to 85°C (-40°F to 185°F) |
Humidity (operating) | 5% to 95% non-condensing |
Humidity (storage) | 5% to 95% non-condensing |
Power supplies | OS6860-BPPX |
IEEE 802.3at PoE ports | 48 |
60 W of PoE ports | 4 |
Air flow | Front to back |
