Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6860N-U28 :
Thiết bị mạng Alcatel-Lucent OmniSwitch OS6860N-U28
| Model | OS6860N-U28 |
| Gigabit port count | 24 |
| 1G/10G SFP+ | 4 |
| 10/25G SFP28 | 4 |
| USB port | 1 |
| Out-of-band EMP port | 1 |
| RS-232 port | 1 |
| Console port | 1 |
| Primary slide-in PSU slot | 1 |
| Backup slide-in PSU slot | 1 |
| Fans | 3 |
| File system flash | 16 GB |
| RAM | 4 GB |
| Max raw fabric capacity | 960 Gb/s |
| Throughput (at 64-byte packet) | 541.7 Mpps |
| Power consumption (idle)** | 79 W |
| Power consumption (full load)** | 171 W |
| Heat dissipation (idle)** | 583.5 BTU/h |
| MTBF with AC power supply | 138,559 h |
| Acoustic noise (dB) at 25C | 52 |
| Weight (fully populated)*** | 4.99 kg (11.0 lb) |
| Altitude | 13,000 ft |
| Operating temperature | 0°C to 45°C |
| (32°F to 113°F) | |
| Storage temperature | -40°C to 85°C |
| (-40°F to 185°F) | |
| Humidity (operating) | 5% to 95% |
| non-condensing | |
| Humidity (storage) | 5% to 95% |
| non-condensing | |
| Power supplies | OS6860-BP |
| OS6860-BP-D | |
| IEEE 802.3at PoE ports | - |
| 60 W of PoE ports | - |
| Air flow | Front to back |

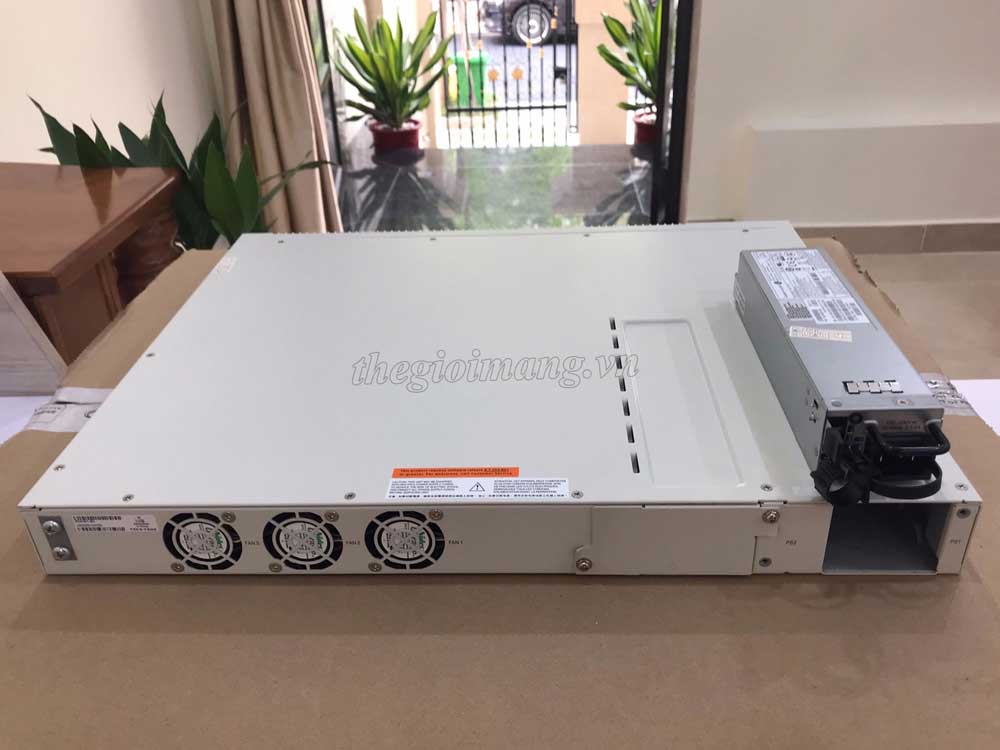

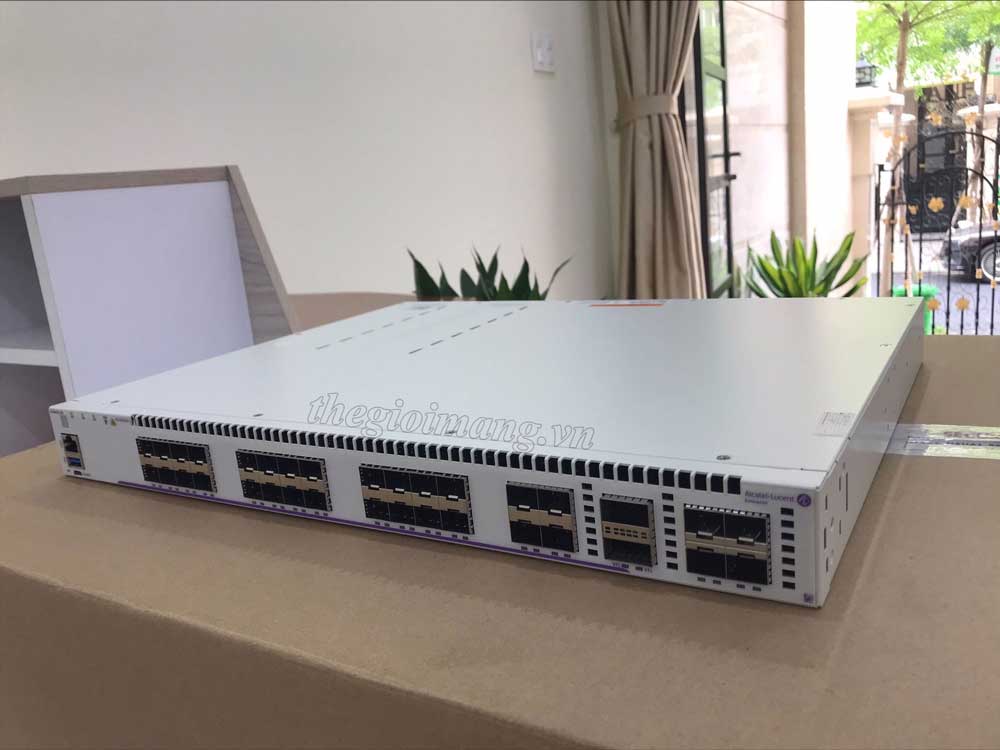

OS6860N-U28: Fixed-configuration chassis in a 1U form factor with 24x100/1000 Base-X SFP ports, 4x 1G/10G SFP+ ports, four SFP28 (10G/25G) ports and 2 x 100G QSFP28 Virtual Chassis link ports. All ports are MACSec capable. The bundle includes one system AC power supply, country-specific power cord, user manuals, access card, hardware for mounting in a 19” rack and a micro-USB-to-USB console adapter
