Planet GS-4210-16UP8T4X là thiết bị chuyển mạch quản lý Gigabit 802.3bt PoE++ có các chứng năng PoE thông mình của hãng Planet để cải thiện khả năng của các ứng dụng doanh nghiệp. Switch cung cấp quản lý xếp chồng kép IPv6/IPv4 và công cụ chuyển mạch L2/L4 Gigabit tích hợp. GS-4210-16UP8T4X đi kèm 16 cổng Gigabit 802.3bt PoE++, thêm 8 cổng đồng Gigabit, và 4 cổng quang 10 Gigabit, với tổng công suất nguồn là 420 watt. Thiết bị chuyển mạch mang đến giải pháp mạng nhanh chóng, an toàn và hiệu quả dành cho mô hình mạng nhỏ và mạng doanh nghiệp.

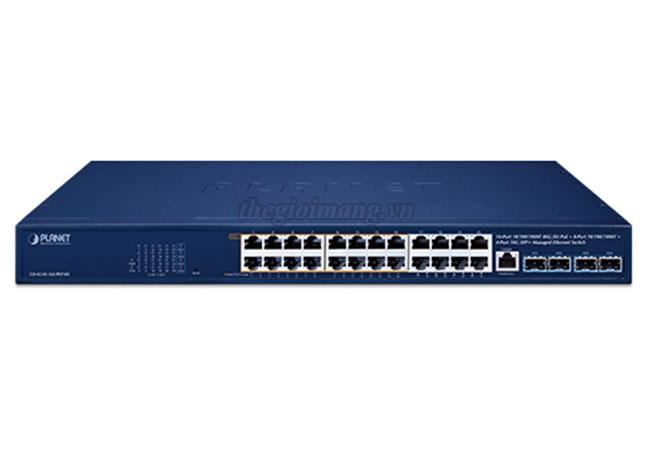

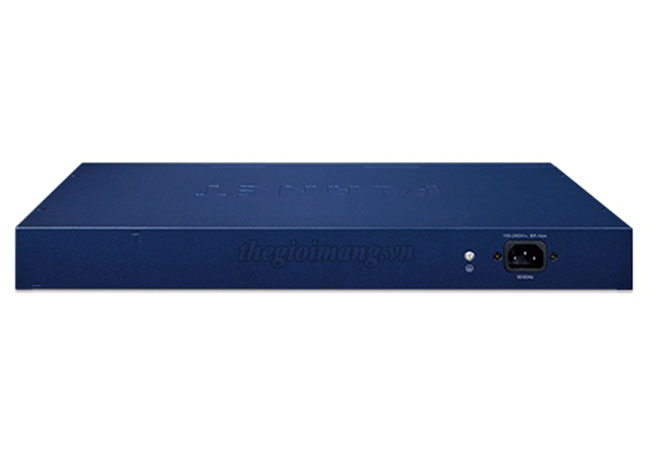

Planet GS-4210-16UP8T4X

Thông số kỹ thuật Planet GS-4210-16UP8T4X

Model	GS-4210-16UP8T4X
Hardware Specifications
Copper Ports	24 10/100/1000BASE-T RJ45 copper ports
PoE Injector Port	16 ports with 802.3bt PoE++ injector function (Ports 1 to 16)
SFP Slots	4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4) Backward compatible with 100/1G/2.5GBASE-X SFP transceivers
Console	1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Power Requirements	AC 100~240V, 50/60Hz
Power Consumption/ Dissipation	Maximum 476 watts/1624.02 BTU (full loading)
Dimensions (W x D x H)	440 x 207 x 44mm
Weight	3182g
Installation	Rack mount
Surge Protection	Common mode 4KV, Differential mode 2KV
ESD Protection	Contact Discharge 6KV DC Air Discharge 8KV DC
Fan	2 smart fans
Switching Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	128Gbps/non-blocking
Switch Throughput@64Bytes	95.23Mpps @64 bytes
Address Table	16K entries
Shared Data Buffer	12Mbits
Flow Control	IEEE 802.3x pause frame for full duplex
Jumbo Frame	Back pressure for half duplex
Power over Ethernet
PoE Standard	IEEE 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at/af PoE PSE
PoE Power Supply Type	802.3bt : End-span+Mid-span 802.3at : End-span
PoE Power Output	Port 1 to 16 – 95W (max.)
Power Pin Assignment	802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) 802.3at PoE: End-span: 1/2(-), 3/6(+)
PoE Power Budget	420 watts (max)
Standards & Environment
Regulatory Compliance	FCC Part 15 Class A, CE
Operating Temperature	0 ~ 50 degrees C
Storage Temperature	-10 ~ 60 degrees C
Humidity	5 ~ 95% (non-condensing)

Data sheet Planet GS-4210-16UP8T4X

Software Functions	GS-4210-16UP8T4X 16-Port 10/100/1000T 802.3bt PoE + 8-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
PoE Management Functions
Enhanced PoE Mode	System PoE Admin Mode Consumption Mode/Allocation Mode Temperature Threshold
Enhanced PoE Mode	Standard/Legacy/UPoE
Active PoE Device Live Detection	Yes
PoE Power Recycling	Yes, daily or predefined schedule
PoE Schedule	4 schedule profiles
PoE Extended Mode	Yes, max. up to 250 meters
Layer 2 Function
Port Mirroring	TX/RX/both Many-to-1 monitor Up to 4 sessions
VLAN	802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping	IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups
MLD Snooping	IPv6 MLD snooping v1, v2, up to 256 multicast groups
QoS	8 mapping IDs to 8 level priority queues - Port number - 802.1p priority - DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control
Ring	Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms
Security Functions
Access Control List	IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries
Port Security	Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication
MAC Security	IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries
Enhanced Security	DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard
Management Functions
Basic Management Interfaces	Console Web browser Telnet SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
System Management	Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS/CloudViewerPro
Event Management	Remote/Local Syslog System log
