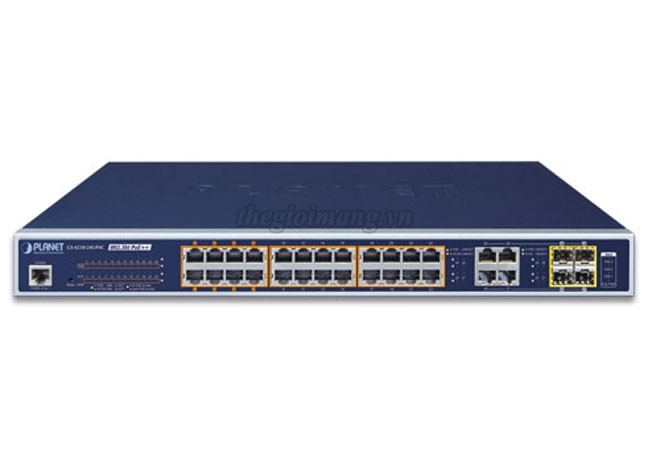

Planet GS-4210-24UP4C: 24-Port 10/100/1000T 802.3bt PoE++ plus 4-Port Gigabit TP/SFP Combo Managed Switch
Thiết bị chuyển mạch Planet GS-4210-24UP4C
| Model | GS-4210-24UP4C |
|---|---|
| Hardware Specifications | |
| Copper Ports | 28 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Slots | 4 x 100/1000BASE-X SFP interface shared with port-25 to port-28 Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Ports | 24 ports with 802.3at/af/802.3bt PoE++ injector function with port-1 to port-24 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 56Gbps/non-blocking |
| Switch Throughput@64 bytes | 41.67Mpps |
| Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| ESD Protection | Contact Discharge 4KV DC Air Discharge 8KV DC |
| Enclosure | Metal |
| Weight | 5kg |
| Power Consumption/Dissipation | 900 watts (max.)/3070 BTU |
| Fan | 3 x smart fan |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at/af PoE PSE |
| PoE Power Supply Type | ■ 802.3bt ■ UPoE/POH ■ End-span ■ Mid-span ■ Force |
| Power Pin Assignment | ■ 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) ■ UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) ■ End-span: 1/2(-), 3/6(+) ■ Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget | 720 watts, operating temperature < 40 degrees C 660 watts, operating temperature between 40 to 49 degrees C 600 watts, operating temperature around 50 degrees C (Factory default mode) |
| PoE Management Functions | |
| Active PoE Device Detection | Yes |
| PoE Power Recycle | Yes, daily or predefined schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Yes, max. up to 250 meters |
| PoE Port Management | ■ Port Enable/Disable/Schedule ■ PoE mode control - 802.3bt - UPoE - 802.3at End-span - 802.3at Mid-span ■ Force mode ■ Port Priority |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
| VLAN | 802.1Q tagged VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 2 groups of 4-port trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
| QoS | 8 mapping IDs to 8 level priority queues - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP field in IP packet Traffic classification based, strict priority and WRR |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
| Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | Web browser; Telnet; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer |
| Event Management | Remote/Local Syslog System log |
| Environment & Standard | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE, LVD |
Data sheet Planet GS-4210-24UP4C
Planet GS-4210-24UP4C
24-Port 10/100/1000T 802.3bt PoE++ plus 4-Port Gigabit TP/SFP Combo Managed Switch
Physical Port
Switching
Power over Ethernet
Layer 2 Features
Quality of Service
Multicast
Security
Management
