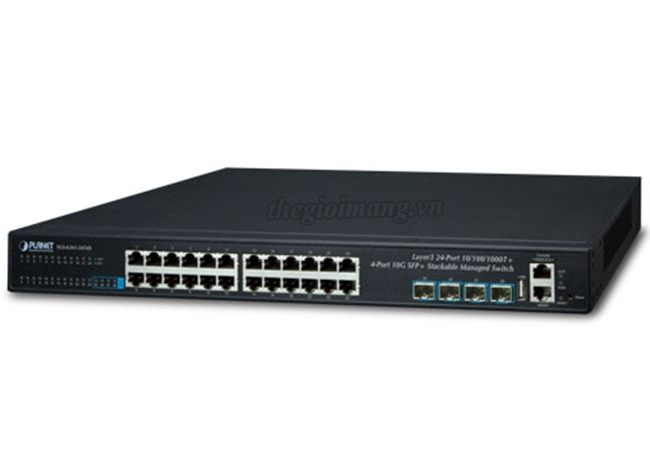

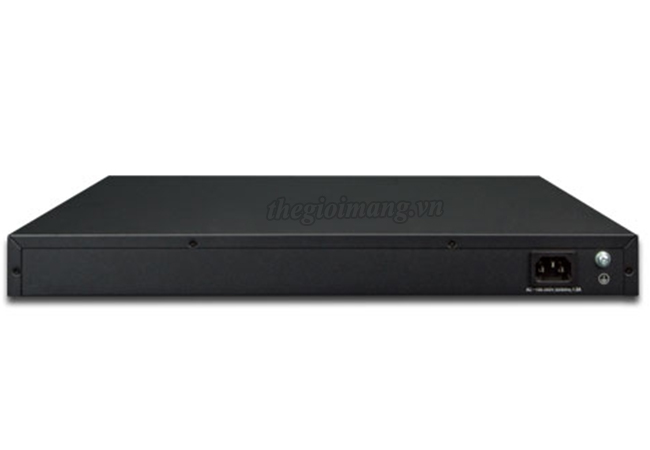

Thiết bị chuyển mạch Planet SGS-6341-24T4X
| Product | SGS-6341-24T4X |
|---|---|
| Hardware Specifications | |
| Hardware Version | 2 |
| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots | 4 10GBASE-SR/LR SFP+ interfaces (port-25 to port-28) Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 128Gbps/non-blocking |
| Switch Throughput | 95.23Mpps |
| Address Table | 16K MAC address table with auto learning function |
| ARP Table | 4K |
| Routing Table | 1024 (IPv4 + IPv6) |
| IP Interface | 1024 |
| ACL Table | 1024 |
| Shared Data Buffer | 1.5MB |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 10KB |
| Dimensions (W x D x H) | 440 x 240 x 43.6 mm, 1U height |
| Weight | 3170g |
| Power Consumption | 26 watts/88.66 BTU |
| Power Requirements | AC 100~240V, 50/60Hz |
| Fan | Fanless design |
| IPv4 Layer 3 Functions | |
| IP Routing Protocol | ■ Static route ■ RIPv1/v2 ■ OSPFv2 ■ BGPv4 ■ Policy-based routing (PBR) ■ LPM routing (MD5 authentication) |
| Multicast Routing Protocol | ■ IGMP v1/v2/v3 ■ DVMRP ■ PIM-DM/SM ■ PIM-SSM |
| Layer 3 Protocol | ■ VRRP v1/v3 ■ ARP ■ ARP Proxy ■ IGMP Proxy |
| IPv6 Layer 3 Functions | |
| IP Routing Protocol | ■ RIPng ■ OSPFv3 ■ BGPv4+ ■ IPv6 LPM Routing ■ IPv6 Policy-based Routing (PBR) ■ IPv6 VRRPv3 ■ IPv6 URPF ■ IPv6 RA |
| Multicast Routing Protocol | ■ PIM-SM/DM for IPv6 ■ MLD for IPv6 (v1) ■ MLDv1/v2 ■ MLD Snooping, 6 to 4 Tunnels ■ IPv6 Any Cast RP ■ Multicast receive control ■ Illegal multicast source detect |
| Layer 3 Protocol | ■ Configured Tunnels ■ ISATAP ■ GRE Tunnel |
| Other | ICMPv6,ND,DNSv6 |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Bandwidth control on each port Port loopback detect |
| Port Status | Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
| VLAN | 802.1Q tagged based VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN |
| Bandwidth Control | TX/RX/Both |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 128 groups with 8 ports per trunk group |
| QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: - IEEE 802.1p CoS/ToS - IPv4/IPv6 DSCP - Port-based WRR |
| Ring | Supports ITU-G G.8032 ERPS |
| Multicast | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 4K multicast groups (IPv4 + IPv6) |
| Access Control List | Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 1K entries |
| Security | Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82 Command line authority control based on user levels |
| Authentication | IEEE 802.1x port-based network access control AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS |
| Management Function | |
| System Configuration | Console, Telnet, SSHv2, Web browser, SSL, SNMP v1, v2c and v3 |
| Secure Management Intefaces | SSHv1/v2, SSL, SNMPv3 |
| Management | Supports both IPv4 and IPv6 addressing Supports the user IP security inspection for IPv4/IPv6 SNMP Supports MIB and TRAP Supports IPv4/IPv6 FTP/TFTP Supports IPv4/IPv6 NTP Supports RMON 1, 2, 3, 9 four groups Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password Supports IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management Supports CLI, console, Telnet Supports SNMP v1, v2c and v3 Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area Supports Syslog server for IPv4 and IPv6 Supports TACACS+ Supports IPv4 and IPv6 DHCP server |
| IP Cluster (Stacking) Compatibility List | XGS3-24242v2 XGS3-24042v3 SGS-6341-24T4Xv2 SGS-6341-24P4Xv2 SGS-6341-16S8C4XR SGS-6341-48T4X XGS-5240-24X2QR |
| Hardware Stacking Compatibility List | SGS-6341-24T4Xv2 SGS-6341-24P4Xv2 SGS-6341-16S8C4XR SGS-6341-48T4X |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
