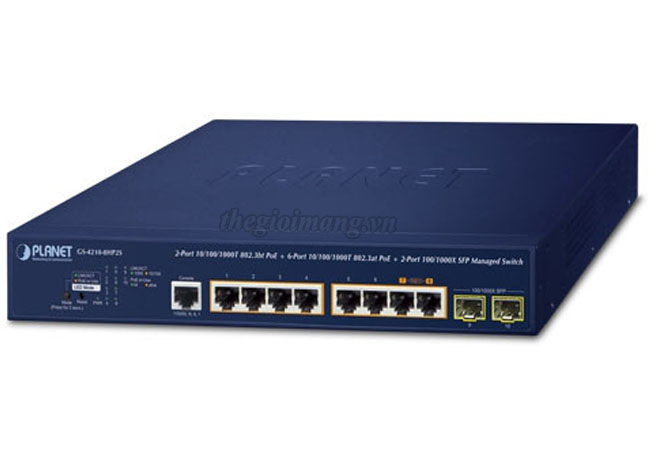

Planet GS-4210-8HP2S

Planet GS-4210-8HP2S: 2-Port 10/100/1000T 802.3bt PoE + 6-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch ● 8-port Gigabit Ethernet PoE++ ● 2-slot 100/1000BASE-X mini-GBIC/SFP ● RJ45 console interface ● 240-watt PoE budget.

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị chuyển mạch Planet GS-4210-8HP2S

Model	GS-4210-8HP2S
Hardware Specifications
Copper Ports	8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP Slots	2 x 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM
PoE Injector Port	6 ports with 802.3at PoE+ injector function with port-1 to port-6 2 ports with 802.3bt PoE++ injector function with port-7 to port-8
Switch Architecture	Store-and-Forward
Switch Fabric	20Gbps / non-blocking
Switch Throughput @64Bytes	14.88Mpps
Address Table	8K entries
Shared Data Buffer	4.1 megabits
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Jumbo Frame	10K bytes
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Power Requirements	100~240V AC, 50/60Hz, auto-sensing
Dimensions (W x D x H)	280 x 229 x 44 mm, 1U height
ESD Protection	Contact Discharge 6KV DC Air Discharge 8KV DC
Enclosure	Metal
Weight	1920g
Power Consumption/Dissipation	280 watts (max.)/2013.2BTU
Fan	1 x smart fan Supports fanless mode
Power over Ethernet
PoE Standard	IEEE 802.3af/802.3at PoE/PSE (Ports 1-6) IEEE 802.3bt PoE++ PSE (Ports 7-8)
PoE Power Supply Type	End-span (Ports 1-6) End-span/Mid-span/802.3bt/UPoE/Legacy (Ports 7-8)
PoE Power Output	Ports 1-6: Per PoE+ port 54V DC, max. 36 watts Ports 7-8: 802.3bt mode, maximum 90 watts UPoE mode, maximum 95 watts Force-mode, maximum 60 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts
Power Pin Assignment	End-span: 1/2 (-), 3/6 (+) Mid-span: 4/5 (+), 7/8 (-) 802.3bt/UPoE: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
PoE Power Budget	240 watts with standard mode 100 watts with standard mode
PoE Management Functions
Active PoE Device Detection	Yes
PoE Power Recycle	Yes, daily or predefined schedule
PoE Schedule	4 schedule profiles
PoE Extend Mode	Yes, max. up to 250 meters
PoE Port Management	Port Enable/Disable/Schedule PoE mode control 802.3bt UPoE 802.3at End-span 802.3at Mid-span Force mode Port Priority
Layer 2 Functions
Port Mirroring	TX/RX/Both Many-to-1 monitor Up to 4 sessions
VLAN	802.1Q tagged-based VLAN Up to 255 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Protocol VLAN Voice VLAN Private VLAN (Protected port) GVRP
Link Aggregation	IEEE 802.3ad LACP and static trunk Supports 2 groups of 2 port trunk
Spanning Tree Protoco	IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping	IGMP (v1/v2/v3) snooping IGMP Querier Up to 255 multicast groups
MLD Snooping	MLD (v1/v2) snooping, up to 255 multicast groups
Access Control List	IPv4/IPv6 IP-based ACL/MAC-based ACL
QoS	8 mapping IDs to 8 level priority queues - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP field in IP packet Traffic classification based, strict priority and WRR
Security	IEEE 802.1X port-based authentication Built-in RADIUS client to cooperate with RADIUS server RADIUS/TACACS+ user access authentication IP-MAC port binding MAC filtering Static MAC address DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard
Management Functions
Basic Management Interfaces	Web browser; Telnet; SNMP v1, v2c Firmware upgrade by HTTP/TFTP Protocol through Ethernet network Remote/Local syslog System log LLDP protocol SNTP
Secure Management Interfaces	SSHv1/v2, TLS v1.2, SNMP v3
System Management	Firmware upgrade by HTTP/TFTP protocol through Ethernet network Remote/Local Syslog System log LLDP protocol SNTP PLANET Smart Discovery Utility PLANET UNI-NMS central management software
Environments
Operating Temperature	0~40 degrees C (Fanless mode enabled) 0~50 degrees C (Default)
Storage Temperature	-20 ~ 70 degrees C
Humidity	5 ~ 95% (non-condensing)
Regulatory Compliance	FCC Part 15 Class A, CE, LVD

Data sheet Planet GS-4210-8HP2S

Những tính năng chính Industrial switch Planet GS-4210-8HP2S

Physical Port

8-port 10/100/1000BASE-T RJ45 copper with PoE injector function
2 100/1000BASE-X mini-GBIC/SFP slots
RJ45 console interface for switch basic management and setup

Power over Ethernet

Complies with IEEE 802.3bt PoE++ and 802.3at PoE+ standard PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Selectable PoE mode: End-span/Mid-span/802.3bt/UPoE/Legacy
Ports 1 to 6 support up to 36 watts
Ports 7 to 8 support up to 95 watts
Each PoE port supports 54V DC power to powered device
240-watt PoE budget
Auto detects powered device
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters in standard mode and 250m in extended mode
PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PoE extension
Intelligent PoE features
- PD alive check
- PoE schedule
- Scheduled power recycling

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Protocol VLAN
- Voice VLAN
- Private VLAN
- Management VLAN
- GVRP
Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU filtering and BPDU forwarding
Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops

Quality of Service

Ingress and egress rate limit per port bandwidth control
Storm control support
- Broadcast/Unknown unicast/Unknown multicast
Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

Supports IPv4 IGMP snooping v2 and v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering

Security

Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- RADIUS/TACACS+ login user access authentication
Access control list
- IPv4/IPv6 IP-based ACL
- MAC-based ACL
MAC security
- Static MAC
- MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention
SSH/SSL

Management

IPv4 and IPv6 dual stack management
Switch management interface
- Web switch management
- Telnet command line interface
- SNMP v1 and v2c switch monitoring
- SSHv2 and TLSv1.2 and SNMP v3 secure access
SNMP Management
- Four RMON groups (history, statistics, alarms and events)
- SNMP trap for interface link up and link down notification
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through web interface
- Dual images
- Hardware reset button for system reboot or reset to factory default
SNTP Network Time Protocol
Network Diagnostic
- SFP-DDM (digital diagnostic monitor)
- Cable diagnostics
- ICMPv4/ICMPv6 remote ping
Link Layer Discovery Protocol (LLDP) and LLDP-MED
Event message logging to remote Syslog server
PLANET smart discovery utility
Smart fan with speed control
