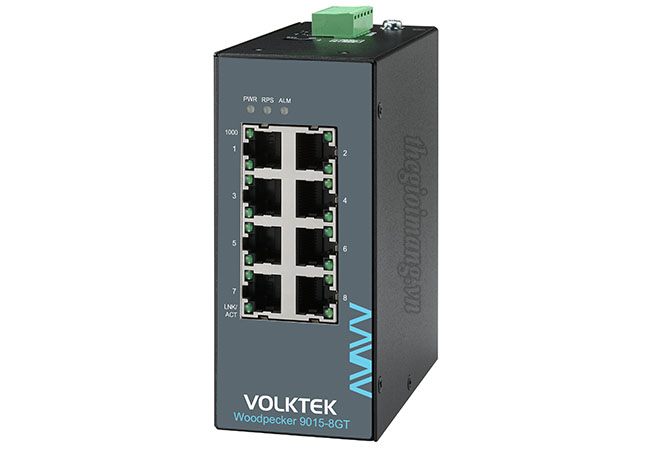

Volktek Woodpecker 9015-8GT (9015-8GT-I) : Managed 8 x 10/100/1000 RJ45 Switch
Thiết bị chuyển mạch Công nghiệp Volktek Woodpecker 9015-8GT
| Model | Woodpecker 9015-8GT |
|---|---|
| Interface | |
| Ports | 8 x 10/100/1000Base-T |
| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Indicator | PWR, RPS, ALM, SFP, 1000, LNK/ACT |
| Performance | Jumbo Frame Size: 10KBytes MAC Table Entries: 8K Switch Fabric: 16Gbps L2 Forwarding Rate: 11.9Mpps |
| Power | |
| Input Voltage | Primary input: 24~48VDC Redundant inputs: 24~48VDC |
| Connection | Teminal Block |
| Power Consumption | Max. 10W (24V/0.35A) |
| Alarm Relay | One relay output 1A @ 24V DC |
| Mechanical and Environment | |
| Housing | Metal (IP30 Protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 550 g (1.2 lb) |
| Dimension (WxHxD) | 50 x 1116 x 100 mm (1.97 x 4.6 x 4 in) |
Data sheet Voltek Woodpecker 7013-9015-8GT
| Certifications | Volktek Woodpecker 9015-8GT (9015-8GT-I) Managed 8 x 10/100/1000 RJ45 Switch |
|
|---|---|---|
| Standards and Certifications | ||
| EMI | FCC Part 15 Subpart B Class A EN 55011:2016 Class A EN 55032: Class A CISPR 32 Class A EN 61000-6-4 |
|
| EMS | EN 55024 EN 61000-6-2 EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (Burst) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) |
|
| Shock | IEC 60068-2-27 | |
| Freefall Test | IEC 60068-2-31 | |
| Vibration | IEC 60068-2-6 | |
| Optional Accessories | ||
| Power Supply | SDR-120-48: 120W DIN-Rail 48V DC Industrial Power Supply, -25°C~70°C (-13°F~158°F) | |
| GBM-104 | 1000BASE-SX 1.25G, Multi-mode SFP, 500m | |
| GBM-123TS | 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10Km, 0°C~70°C (32°F~158°F) | |
| GBM-123RS | 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10Km, 0°C~70°C (32°F~158°F) | |
