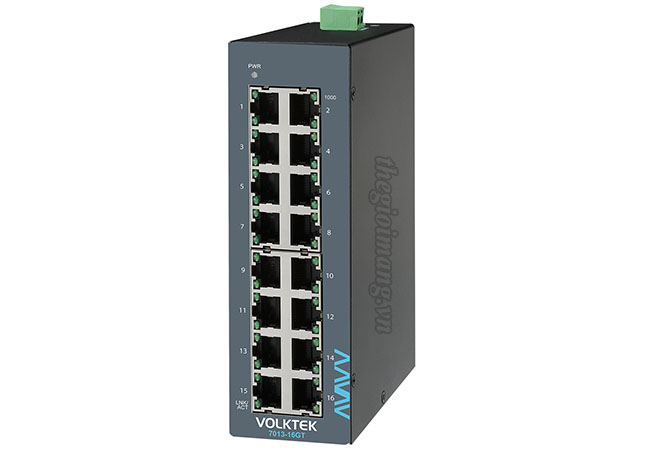

Volktek Woodpecker 7013-16GT-I : Unmanaged 16 x 10/100/1000 RJ45 Industrial Switch
Thiết bị chuyển mạch Công nghiệp Volktek Woodpecker 7013-16GT-I
| Model | Woodpecker 7013-16GT-I |
|---|---|
| Interface | |
| Ports | 16 x 10/100/1000BASE-T (RJ45) |
| Connectors | Terminal Block |
| LED Indicator | PWR |
| Performance | Jumbo Frame Size: 10KBytes MAC Table Entries: 8K L2 Forwarding Rate: 23.8Mpps Switch Fabric: 32Gbps |
| QoS | 8 Hardware Queues Support priority tagged frame(VID=0) |
| Power | |
| Input Voltage | Primary input 12~48VDC |
| Connection | Teminal Block |
| Power Consumption | 12W |
| Reverse Polarity | Present |
| Mechanical and Environment | |
| Housing | Metal (IP30 Protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight (w/ RJ45 cap) | 900 g (2.18 lb) |
| Weight (w/o RJ45 cap) | 880 g (1.94 lb) |
| Dimension (WxHxD) | 50 x 160 x 120 mm (1.97 x 6.36 x 4.72 in) |
Data sheet Voltek Woodpecker 7013-16GT-I
| Certifications | Volktek Woodpecker 7013-16GT-I Unmanaged 16 x 10/100/1000 RJ45 Industrial Switch |
|
|---|---|---|
| Standards and Certifications | ||
| CE | EMI | FCC Part 15 Subpart B Class A EN 55011 class A EN 55032 class A EN 61000-6-4 |
| EMS | EN 61000-6-2 EN 55024 EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (Burst) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) |
|
| Shock Test | IEC 60068-2-27 | |
| Freefall Test | IEC 60068-2-31 | |
| Vibration | IEC 60068-2-6 | |
| Safety | UL 61010-1, UL 61010-2-201 | |
| Optional Accessories | ||
| Power Supply | SDR-120-48: 120W DIN-Rail 48VDC Industrial Power Supply, -25°C~70°C (-13°F~158°F) | |
