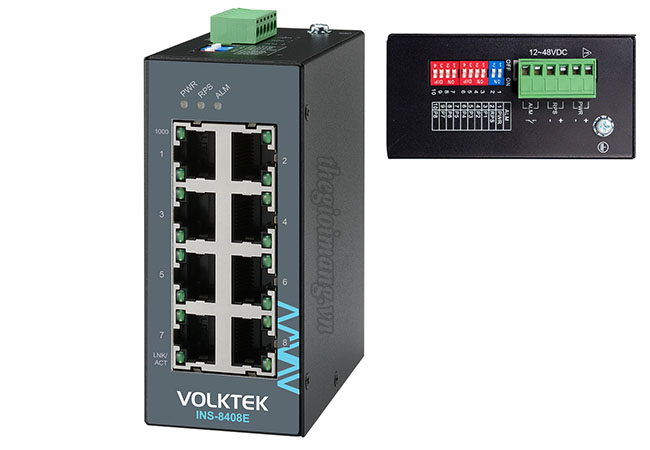

Volktek INS-8408E : Premium Unmanaged 8 x 10/100/1000 RJ45 Industrial Switch
Thiết bị chuyển mạch Công nghiệp Volktek INS-8408E
| Model | INS-8408E |
|---|---|
| Interface | |
| Ports | 8 x 10/100/1000BASE-T (RJ45) |
| DIP Switch | PWR, RPS, P1 ~ P8 |
| LED Indicator | PWR, RPS, ALM, 1000, LNK/ACT |
| Performance | Jumbo Frame Size: 9216 Bytes MAC Table size: 4K Throughput: 14,880 pps to 10 Mbps ports 148,800 pps to 100 Mbps ports 1,488,000 pps to 1000 Mbps ports Switch Fabric: 16Gbps Forwarding Rate: 11.9Mpps |
| Power | |
| Input Voltage | Primary input 12~48VDC Redundant input 12~48VDC |
| Connection | Teminal Block |
| Max Power Consumption | 5W |
| Alarm Relay | One relay output, 1 A @ 24V DC |
| Reverse Polarity Protection | Present |
| Over Load Protection | Present |
| Mechanical and Environment | |
| Housing | Metal (IP30 Protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 480 g |
| Dimension (WxHxD) | 50 x 115.8 x 99.6 mm (1.97 x 4.56 x 3.9 in) |
| Certifications | Volktek INS-8408E Premium Umanaged 8 x 10/100/1000 RJ45 Industrial Switch |
|
|---|---|---|
| Standards and Certifications | ||
| CE | EMI | FCC Part 15 Subpart B Class A EN 55011 / BS EN 55011 Class A EN 55032 / BS EN 55032 Class A EN 61000-6-4 / BS EN 61000-6-4 |
| EMS | EN 55035 / BS EN 55035 EN IEC 61000-6-2 / BS EN IEC 61000-6-2 EN 61000-4-2 ( ESD ) EN 61000-4-3 ( RS ) EN 61000-4-4 ( Burst ) EN 61000-4-5 ( Surge ) EN 61000-4-6 (CS ) EN 61000-4-8 (PFMF) |
|
| Shock Test | IEC 60068-2-27 | |
| Freefall Test | IEC 60068-2-31 | |
| Vibration | IEC 60068-2-6 | |
| Optional Accessories | ||
| Power Supply | SDR-120-48: 120W DIN-Rail 48VDC Industrial Power Supply, -25°C~70°C (-13°F~158°F) | |
