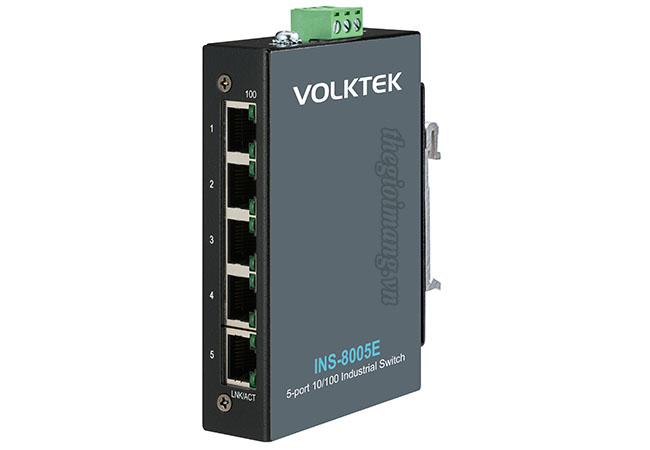

Volktek INS-8005E : Unmanaged 5 x 10/100 RJ45 Industrial Switch
Thiết bị chuyển mạch Công nghiệp Volktek INS-8005E
| Model | INS-8005E |
|---|---|
| Interface | |
| Ports | 5 x 10/100Base-TX (RJ45) |
| Performance | Jumbo frame Size: 9216 Bytes MAC Table Entries: 2K Throughput: 14,880 pps to 10 Mbps ports 148,800 pps to 100 Mbps ports Switch Fabric: 1Gbps Forwarding Rate: 0.74Mpps |
| Power | |
| Input Voltage | 12~48VDC |
| Connection | Teminal Block |
| Max Power Consumption | 3W |
| Reverse Polarity Protection | Present |
| Overload Protection | Present |
| Mechanical and Environment | |
| Housing | Aluminum (IP30 Protection) |
| Mounting | DIN-Rail, Wall Mount |
| Operating Temperature | -40°C~75°C (-40°F~167°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 183.4 g |
| Dimension (WxHxD) | 23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in) |
| Certifications | Volktek INS-8005E Unmanaged 5 x 10/100 RJ45 Industrial Switch |
|
|---|---|---|
| Features | ||
| Functions | LLDP Filter, Flow Control, VLAN Passthru, Port Priority(Port 1), 802.1p CoS/QoS, Storm Control, iQoS (EIP/PROFINET/GOOSE QoS) | |
| Standards and Certifications | ||
| CE | EMI | FCC Part 15 Subpart B Class A EN 55011 / BS EN 55011 Class A EN 55032 / BS EN 55032 Class A EN 61000-6-4 / BS EN 61000-6-4 |
| EMS | EN 55035 / BS EN 55035 EN 61000-6-2 / BS EN 61000-6-2 EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (Burst) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) |
|
| Shock | IEC 60068-2-27 | |
| Freefall | IEC 60068-2-31 | |
| Vibration | IEC 60068-2-6 | |
| Safety | UL 61010-1, UL 61010-2-201 | |
| Optional Accessories | ||
| Power Supplies | SDR-120-48: 120W DIN-Rail 48VDC Industrial Power Supply, -25°C~70°C (68°F~158°F) | |
