Planet GS-5220-16UP4S2XR: L3 16-Port 10/100/1000T 802.3bt PoE + 4-Port 100/1000X SFP + 2-Port 10G SFP+ Managed Switch with System Redundant Power

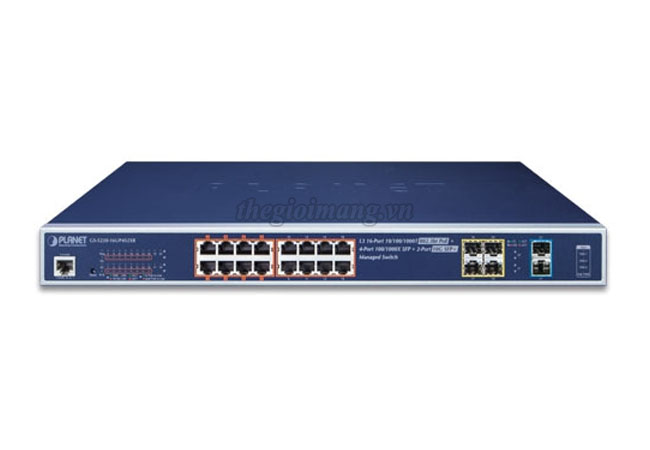

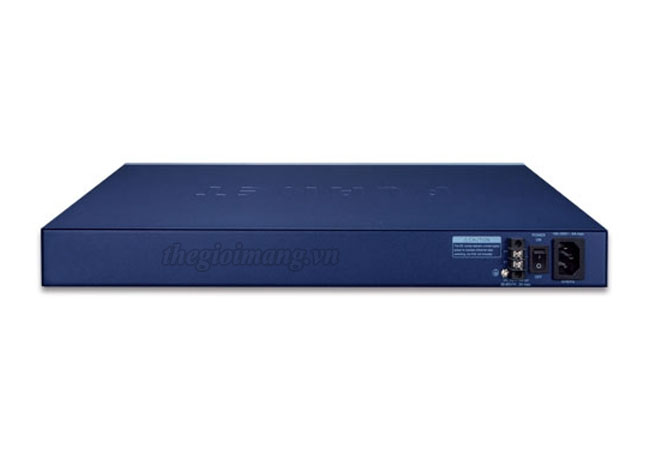

Thiết bị chuyển mạch Planet GS-5220-16UP4S2XR
| Model | GS-5220-16UP4S2XR | |
|---|---|---|
| Hardware Specifications | ||
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports | |
| SFP Slots | 4 100/1000BASE-X SFP interfaces, Compatible with 100BASE-FX SFP transceiver |
|
| SFP+ Slots | 2 10GBASE-SR/LR SFP+ interfaces (Port-17 to Port-18) Backward compatible with 1000BASE-SX/LX/BX SFP transceiver |
|
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) | |
| Reset Buton | < 5 sec: System reboot > 5 sec: Factory default |
|
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height | |
| Weight | 4503g | |
| Power Consumption | AC: Max. 439.4 watts/1498.3 BTU (include PoE) DC: Max. 31.9 watts/108.7 BTU (system only) |
|
| Power Requirements - AC | AC 100~240V, 50/60Hz, 7A | |
| Power Requirements - DC | DC 36~60V, 2A | |
| ESD Protection | 6KV DC | |
| Fan | 3 smart fans | |
| Switching | ||
| Switch Architecture | Store-and-Forward | |
| Switch Fabric | 80Gbps/non-blocking | |
| Throughput | 59.52Mpps@ 64Bytes | |
| Address Table | 16K entries, automatic source address learning and aging | |
| Shared Data Buffer | 32M bits | |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
|
| Jumbo Frame | 10K bytes | |
| Power over Ethernet | ||
| PoE Standard | 802.3bt PoE++ PSE Type-4 and Type-4 PSE Backward compatible with IEEE 802.3af/802.3at PoE PSE |
|
| PoE Power Supply Type | 802.3bt PoE++ UPoE End-span Mid-span Force |
|
| PoE Power Output | Per port 52~54V DC 802.3bt Type-4 mode, Port-1 to Port-8: maximum 90 watts 802.3bt Type-3 mode, Port-9 to Port-24: maximum 60 watts UPoE mode, Port-1 to Port-8: maximum 95 watts UPoE-mode, Port-9 to Port-24: maximum 72 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts Force mode: maximum 60 watts |
|
| Power Pin Assignment | 802.3bt : 1/2(-), 3/6(+),4/5(+), 7/8(-) UPoE : 1/2(-), 3/6(+),4/5(+), 7/8(-) End-span : 1/2(-), 3/6(+) Mid-span : 4/5(+), 7/8(-) |
|
| PoE Power Budget | 400 watts (max.) | |
| PoE Management | ||
| Active POE device alive detects | Yes | |
| PoE Power Recycle | Yes, daily or predeinded schedule | |
| PoE Schedule | 4 schedule profiles | |
| PoE System Management | System PoE Admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-temperature threshold alarm PoE usage threshold alarm |
|
| PoE Port Management | Port Enable/Disable/Schedule PoE mode control 802.3bt UPoE 802.3at End-span 802.3at Mid-span Force mode Port Priority |
|
| Layer 3 Functions | ||
| IP Interfaces | Max. 128 VLAN interfaces | |
| Routing Table | Max. 128 routing entries | |
| Routing Protocols | IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing |
|
| Layer 2 Functions | ||
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
|
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
|
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 4K VLAN groups, out of 4095 VLAN IDs |
|
| Link Aggregation | IEEE 802.3ad LACP/static trunk 11 groups with 6 port per trunk |
|
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
|
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet |
|
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP multicast groups |
|
| MLD Snooping | IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Supports 255 MLD groups |
|
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries |
|
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~10000Mbps Egress: 100Kbps~10000Mbps |
|
| Switch Management | ||
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c | |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 | |
| Management Functions | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility |
|
| Environments & Standards Conformance | ||
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|
| Regulatory Compliance | FCC Part 15 Class A, CE | |
Data sheet Planet GS-5220-16UP4S2XR
Những tính năng chính Switch Planet GS-5220-16UP4S2XR
Physical Port
802.3bt Power over Ethernet Plus Plus
Layer 2 Features
Layer 3 Features
Quality of Service
Multicast
Security
Management
