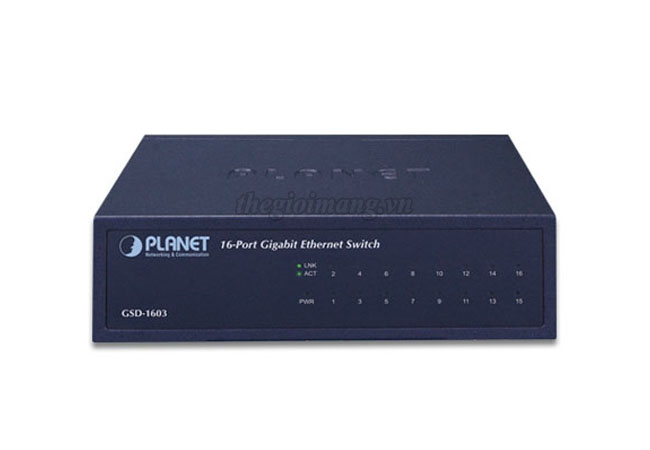

Thiết bị chuyển mạch Planet GSD-1603
|
Model |
GSD-1603 |
|---|---|
|
Hardware Specifications |
|

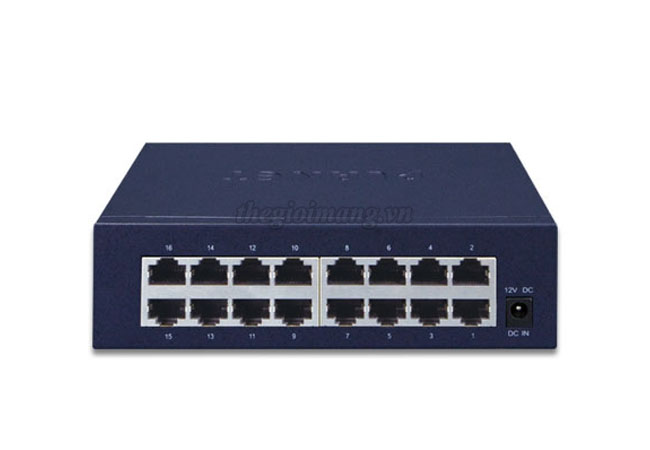

| 10/100/1000BASE-T | 16 auto MDI/MDIX RJ45 ports |
| LED Display | One for Power, one for Link/Act per port |
| Enclosure | Metal |
| Dimension (W x D x H) | 155 x 118 x 46 mm |
| Weight (g) | 538g |
| Power Requirements(External power adapter) | 12V DC, 1A |
| Power Consumption | 10 watts/34 BTU |
|
Switching Specifications |
|
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 8K |
| Flow Control | Back pressure for half-duplex IEEE 802.3x pause frame for full-duplex |
| Switch Fabric | 32Gbps |
| Throughput (packet per second) | 23.8Mpps@64 bytes |
| Jumbo packet size | 9K |
|
Standards Conformance |
|
| Standards Compliance | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Full-duplex Flow Control) IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Regulatory Compliance | FCC Part 15 Class B, CE |
|
Environments |
|
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
| Humidity | Operating: 5~95% Storage: 5~95% (non-condensing) |
