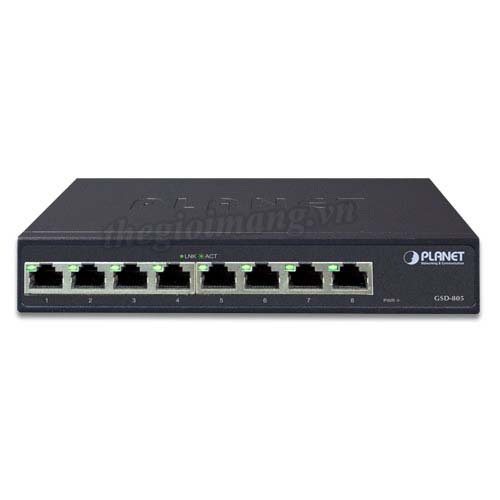

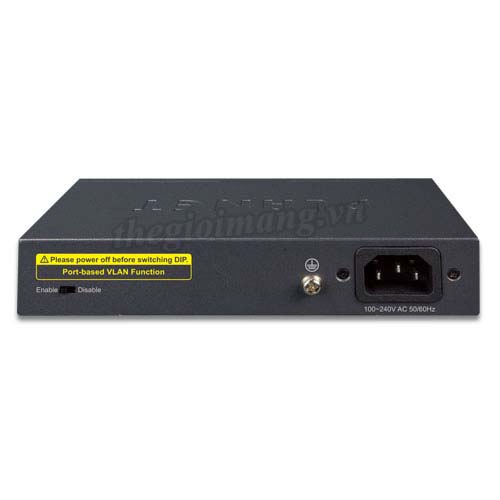

Thiết bị chuyển mạch Planet GSD-805
| Product | GSD-805 |
|---|---|
| Hardware Specifications | |
| Network Connector | 8-Port RJ45 for 10/100/1000BASE-T, auto MDI/MDIX |
| Switch Architecture | Store and Forward switch architecture |
| MAC Address Table | 8K MAC address table with auto learning function |
| Packet Buffer | 1Mbit |
| Switch Fabric | 16Gbps |
| Switch Throughput | 11.9Mpps @64 bytes |
| Jumbo Packet | 9216 bytes |
| Flow Control | Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex |
| Power Requirements | Internal power 100-240V AC, 50/60Hz, 0.2A |
| Power Consumption | Max. 2.4 watts/8.1 BTU |
| Dimensions (W x D x H) | 168 x 93 x 32mm |
| ESD Protection | Contact Discharge 4KV DC Air Discharge 6KV DC |
| EFT Protection | ESD (Ethernet): 2KV Surge (EFT for power): 4KV |
| Surge Protection | Different module ±1.5KV Common mode ±2KV |
| Electrostatic Standard | ±2KV |
| Weight | 428g |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
