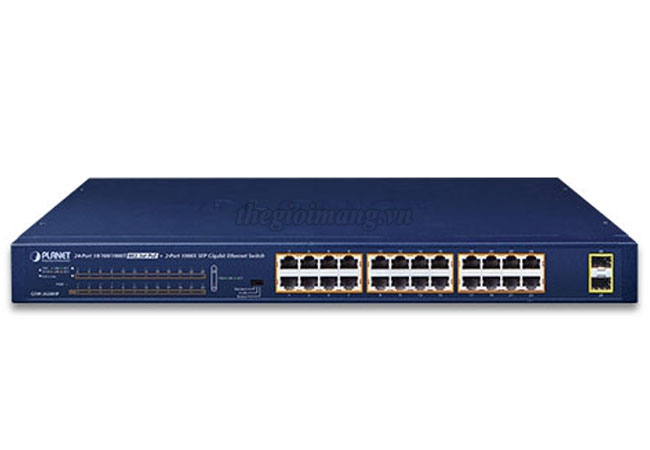

Planet GSW-2620HP: 24-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch
Thiết bị chuyển mạch Planet GSW-2620HP
| Model | GSW-2620HP |
|---|---|
| Hardware Specifications | |
| 10/100/1000BASE-T Copper Ports | 24 auto-MDI/MDI-X ports |
| 802.3af/802.3at PoE+ Injector Port | 24 |
| 1000BASE-X SFP/mini-GBIC Slots | 2 |
| DIP Switch | Selectable operation mode - Standard - VLAN - Extend |
| Dimension (W x D x H) | 440 x 208 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 2.79kg |
| Power Requirements | 100~240V AC, 50/60Hz, 3A max. |
| Power Consumption/Dissipation | Max. 282 watts/962 BTU |
| Thermal Fan | 2 |
| Protection | 6KV surge protection 8KV ESD protection |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 52Gbps/non-blocking |
| Switch Throughput@64bytes | 38.7Mpps |
| MAC Address Table | 8K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | Back pressure for half-duplex IEEE 802.3x pause frame for full-duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 240 watts |
| Standard & Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
