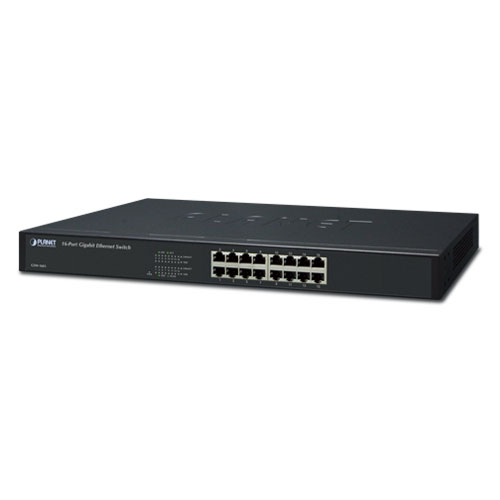

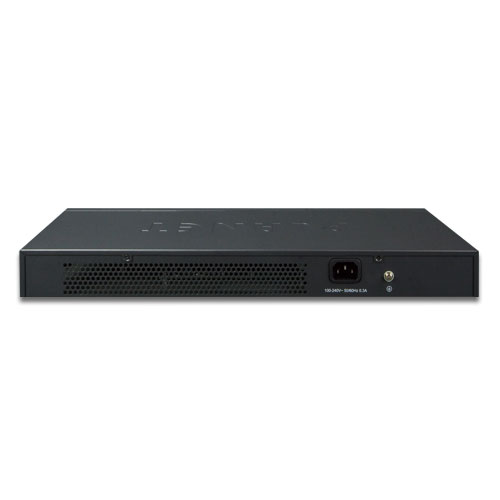

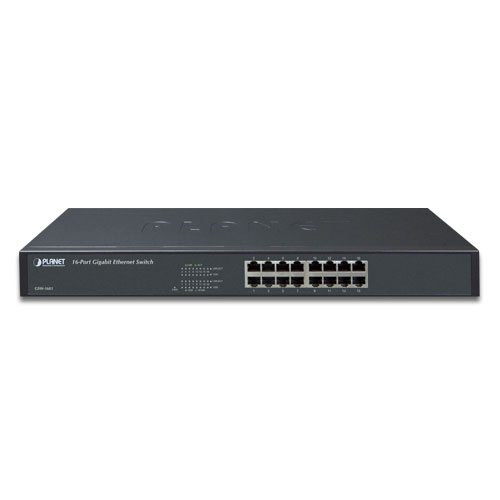

Switch Planet GSW-1601: 16-Port 10/100/1000Mbps Gigabit Ethernet Switch ● Throughput: 23.8Mpps ● Switch Fabric: 32Gbps ● DIP Switch: Standard, Flow Control Off, VLAN and Extend
Thiết bị chuyển mạch Planet GSW-1601
| Product | GSW-1601 |
|---|---|
| Hardware Specification | |
| Hardware Version | 9 |
| 10/100/1000BASE-T MDI/MDIX Ports | 16 |
| Throughput (packet per second) | 23.8Mbps |
| Switch Fabric | 32Gbps |
| Power Consumption/Dissipation | 9.4 watts/32 BTU |
| Power Requirement | 100~240V AC, 0.16A, 50-60Hz |
| Dimension (W x H x D) | 440 x 208 x 44mm, 1U height |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 8K entries |
| Jumbo Packet Size | 9K |
| Flow Control | Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex |
| DIP Switch | Operation mode selection:
|
| Environment | |
| Operating | Operating Temperature: 0~50 degrees C Relative Humidity: 5% to 95% (non-condensing) |
| Storage | Temperature: -10~70 degrees C Relative Humidity: 5% to 95% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Data sheet Planet GSW-1601 | ||
|---|---|---|
| DIP Switch Mode | Function | |
| Standard (default) | This mode makes the Gigabit Ethernet Switch operate as a general switch and all ports operate at 10/100/1000Mbps auto-negotiation | |
 |
||
| Flow Control Off | This mode disables the Gigabit Ethernet Switch flow control function | |
| VLAN |
This mode makes the GSW-1601 operate as a VLAN isolation switch and 1. Port 1 to port 14 will isolate respectively. 2. Port 1 to port 14 can only communicate with port 15 and port 16 (uplink port). |
|
 |
||
| Extend | This mode makes the GSW-1601 operate as a distance extension switch and port 1 to port 8 can only transmit distance of 200m at speed of 10Mbps. | |
 |
||
