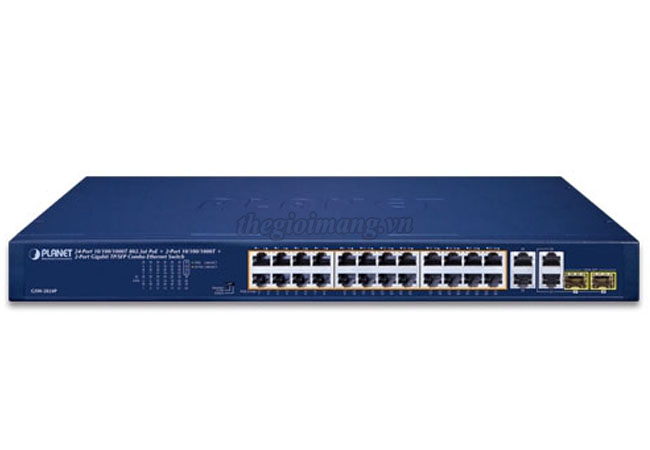

Planet GSW-2824P : 24-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port Gigabit TP/SFP Combo Ethernet Switch (250W)
Thiết bị chuyển mạch Planet GSW-2824P
| Model | GSW-2824P | |
|---|---|---|
| Hardware Specifications | ||
| 10/100/1000BASE-T Copper Ports | 28 auto MDI/MDIX | |
| 1000BASE-X SFP/mini-GBIC Slots | 2 | |
| DIP Switch | Selectable operation mode - Standard - VLAN - Extend |
|
| Dimensions (W x D x H) | 441.5 x 207.3 x 44 mm (1U height) | |
| Enclosure | Metal | |
| Weight | 3022g | |
| Power Requirements | 100~240V AC, 50/60Hz, 5A max. | |
| Power Consumption/Dissipation | Max. 278 watts/948 BTU | |
| Thermal Fan | 2 | |
| ESD Protection | Contact discharge of ±6KV DC, Air discharge of ±8KV DC |
|
| Surge Protection | ±6KV | |
| Installation | Desktop or rack-mount installation | |
| Switch | ||
| Switch Architecture | Store-and-Forward | |
| Switch Fabric | 56Gbps | |
| Switch Throughput@64 bytes | 41.66Mpps | |
| MAC Address Table | 8K entries | |
| Jumbo Frame | 9216 bytes | |
| Flow Control | IEEE 802.3x pause frame for full duplex; back pressure for half duplex | |
| Power over Ethernet | ||
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE | |
| PoE Injector Ports | 24 | |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) | |
| PoE Power Output | Per port 54±1V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54±1V DC, 600mA. max. 32 watts (IEEE 802.3at) |
|
| PoE Power Budget | 250 watts | |
| Environments & Standards | ||
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5~ 95% (non-condensing) |
|
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|
| Humidity | 5 ~ 95% (non-condensing) | |
| Regulatory Compliance | FCC Part 15 Class A, CE | |
