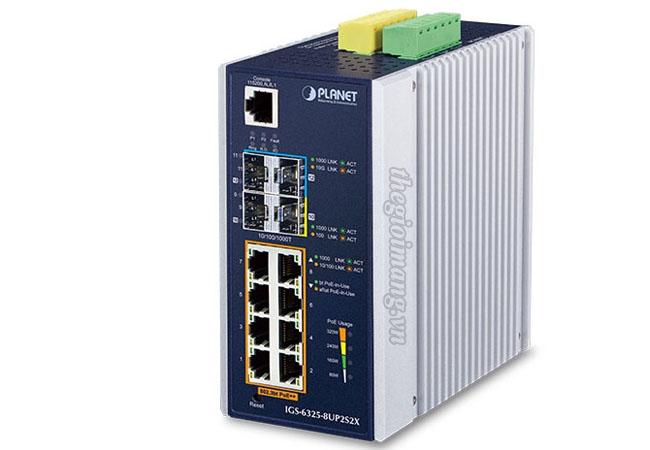

Thiết bị chuyển mạch Công nghiệp Planet IGS-6325-8UP2S2X

Model	IGS-6325-8UP2S2X
Hardware Specifications
Copper Ports	8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports	2 x 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10) Compatible with 100BASE-FX and 2500BASE-X SFP
SFP+ Slots	2 x 10GbBASE-SR/LR SFP+ slot interfaces (Port-11 and Port-12) Compatible with 1000BASE-X SFP and 2500BASE-X SFP
PoE Injector Port	8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console	1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Foward
Switch Fabric	60 Gbps/non-blocking
Throughput (packet per second)	44.64Mpps@ 64 bytes packet
Address Table	16K entries, automatic source address learning and aging
Shared Data Buffer	32 Mbits
Jumbo Frame	10Kbytes
SDRAM	512Mbytes
Flash Memory	64Mbytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Connector	Removable 6-pin terminal block for power input - Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface - Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI)	2 digital input: - Level 0: -24~2.1V (±0.1V) - Level 1: 2.1~24V (±0.1V) - Input load to 24V DC, 10mA max.
Digital Output (DO)	2 digital output: - Open collector to 24VDC, 100mA
Enclosure	IP30 aluminum case
Installation	DIN-rail kit or wall mounting
Dimensions (W x D x H)	76.8 x 107.3 x 152 mm
Weight	1152g
Power Requirements	Dual DC 48~56V, 7.5A max. (>52V DC for 802.3bt PoE++ output recommended)
Power Consumption	Max. 29 watts/98.96BTU@56V DC input (System on) Max. 401 watts/1,368.27BTU@56V DC input (Full loading with 802.3bt PoE++ function)
ESD Protection	Air 8KV DC Contact 6KV DC
Surge Protection	4KV DC
Power over Ethernet
PoE Standard	IEEE 802.3bt PoE++ Type-4 PSE Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type	■ 802.3bt ■ UPOE/POH ■ End-span ■ Mid-span ■ Force
PoE Power Output	802.3bt PoE++ - Per port 52V~56V DC (depending on the power supply), max. 90 watts UPoE(PoH) - Per port 52V~56V DC (depending on the power supply), max. 95 watts IEEE 802.3at Standard - Per port 52V~56V DC (depending on the power supply), max. 36 watts Force - Per port 52V~56V DC (depending on the power supply), max. 60 watts
Power Pin Assignment	End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 802.3bt/UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Budget	360W maximum (depending on power input)
Environments
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)

Data sheet Planet IGS-6325-8UP2S2X

PoE Management Functions
Active PoE device alive detects	✔
PoE Power Recycle	✔ - daily or predeinded schedule
PoE Schedule	4 schedule profiles
PoE Extend Mode	✔ - max. 160 to 200 meters
PoE System Management	System PoE Admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-termperature threshold alarm PoE usage threshold alarm
PoE Port Management	Port Enable/Disable/Schedule PoE mode control - 802.3bt - UPoE - 802.3at End-span - 802.3at Mid-span Force mode Port Priority
Layer 3 Functions
IP Interfaces	Max. 128 VLAN interfaces
Routing Table	Max. 128 routing entries
Routing Protocols	IPv4 hardware static routing IPv6 hardware static routing IPv4 OSPFv2 dynamic routing
Layer 2 Functions
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX / RX / both Many-to-1 monitor
VLAN	802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4000 VLAN groups, out of 4095 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/Static Trunk Supports 3 trunk group with 4 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping	IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups
MLD Snooping	IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups
Access Control List	IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries
Bandwidth Control	Per port bandwidth control - Ingress: 500Kbps~13000Mbps - Egress: 500Kbps~13000Mbps
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet
Synchronization	IEEE 1588v2 PTP(Precision Time Protocol) - Peer-to-peer transparent clock - End-to-end transparent clock
Management
Basic Management Interfaces	Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSHv1/SSHv2, TLS, SSL, SNMP v3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A CE: EN55032, EN55035
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
