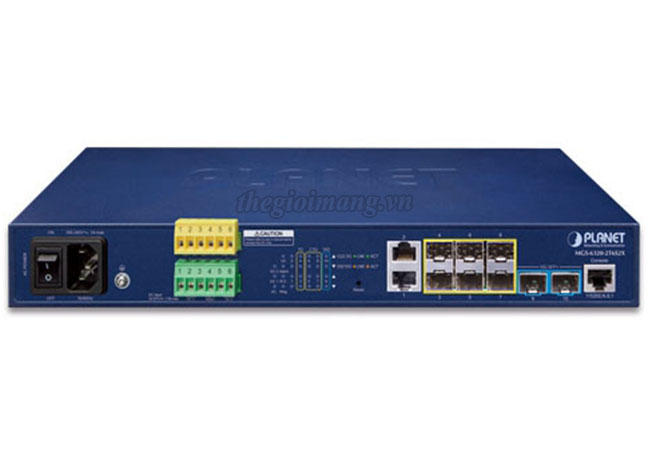

Model	MGS-6320-2T6S2X
Hardware Specifications
Copper Ports	2 100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port 1 and port 2)
SFP Ports	2 1000BASE-SX/LX/BX SFP ports (Port 3 and port 4) Compatible with 100BASE-FX SFP. 4 100/1000/2500BASE-X SFP ports (Port 5 and port 8)
SFP+ Ports	2 1000/2500/10GBASE-X SFP ports (Port 9 and port 10)
Console	1 x RJ45 serial port (115200, 8, N, 1)
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
RAM	512MBytes
Flash Memory	64MBytes
Dimensions (W x D x H)	330 x 153 x 44 mm, 1U high
Weight	1486g
Power Requirements	AC 100~240V, 50/60Hz 1A 24V DC @ 1.5A, Range: 24V ~ 57V DC
Power Consumption	Max. 16.2 watts/55.2 BTU (AC input) Max. 17.6 watts/60 BTU (DC input)
Alarm	One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V
DI/DO	2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24VDC, 100mA max.
ESD Protection	6KV DC
Switching Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	68Gbps/non-blocking
Throughput	50.59Mpps@ 64 bytes packet
Address Table	8K entries, automatic source address learning and aging
RAM	512Mbytes
Flash	64Mbytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Jumbo Frame	10K bytes
Standards & Environment
Regulatory Compliance	FCC Part 15 Class A, CE
Operating	Temperature: -10 ~ 60 degrees C for DC power input 0 ~ 50 degrees C for AC power input Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Data sheet Planet MGS-6320-2T6S2X

Software Functions	MGS-6320-2T6S2X L3 2-Port 100/1000T + 2-Port 100/1000X SFP + 4-Port 2.5G SFP + 2-Port 10G SFP+ Metro Ethernet Switch
Layer 3 Functions
IP Interfaces	Max. 32 VLAN interfaes
Routing Table	Max. 32 routing entries Max. 1K routing table entries
Routing Protocols	IPv4 RIPv1/v2 IPv4 OSPFv2 IPv6 OSPFv3 IPv4 hardware static routing IPv6 hardware static routing
Layer 2 Function
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable Port link capability control
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX/RX/Both Many-to-1 monitor Supports up to 5 sessions
VLAN	IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/Static Trunk Supports 5 trunk groups with 10 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet
Ring	Supports ERPS, and complies with ITU-T G.8032
IGMP Snooping	IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support
MLD Snooping	MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support
Bandwidth Control	Per port bandwidth control Ingress: 500Kb~13128Mbps Egress: 500Kb~13128Mbps
Security Functions
Access Control List	IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries
Security	Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries
AAA	RADIUS client TACACS+ client
Network Access Control	IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication
Switch Management Functions
Basic Management Interfaces	Console; Telnet; Web Browser; SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET NMS system and CloudViewer
Event Management	Remote syslog Local system log SMTP
