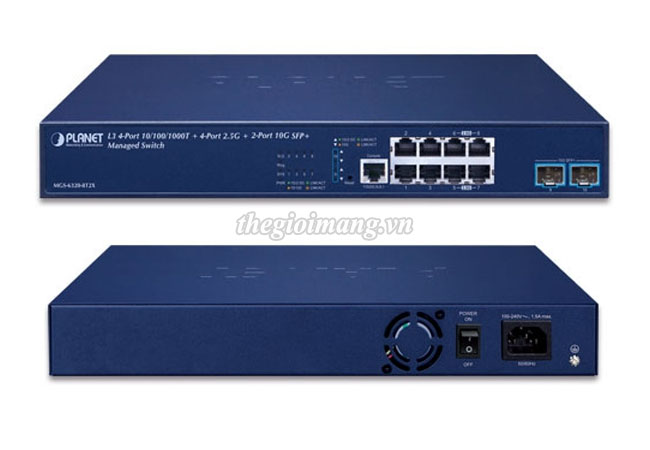

Planet MGS-6320-8T2X

Planet MGS-6320-8T2X : L3 4-Port 10/100/1000T+ 4-Port 2.5G + 2-Port 10G SFP+ Managed Switch

  • 4-port 10/100/1000 RJ45
  • 4-port 10/100/1000/2500 RJ45
  • 2-slot SFP+
  • RJ45 type RS232 console interface
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Planet MGS-6320-8T2X

Model MGS-6320-8T2X
Hardware Specifications
Copper Ports 4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-4
4x 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X interface with Port-5 to Port-8
SFP+ Slots 2 x 1G/2.5G/10GBASE-X SFP interfaces with Port-9 to Port-10
Console 1 x RJ45-to-DB9, RS232 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
RAM 512Mbytes
Flash Memory 64Mbytes
Dimensions (W x D x H) 330 x 150 x 44.5mm, 1U height
Weight 1436g
Power Requirements 100~240V AC, 50/60Hz, 1.5A
Power Consumption Max. 9.9 watts/33.76BTU (Power on without any connection)
Max. 18.48 watts/63.02BTU (Full loading)
ESD Protection 6KV DC
Surge Protection 4KV DC
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 68Gbps/non-blocking
Throughput 50.59Mpps@ 64Bytes packet
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4.1Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Environments & Standards
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Regulatory Compliance FCC Part 15 Class A, CE

Data sheet Planet MGS-6320-8T2X


Software Specification MGS-6320-8T2X
L3 4-Port 10/100/1000T+ 4-Port 2.5G + 2-Port 10G SFP+ Managed Switch
Layer 3 Functions
IP Interfaces Max. 32 VLAN interfaces
Routing Table Max. 32 static route entries
Max. 1K routing table entries
Routing Protocols IPv4 RIPv2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring TX/RX/both
Many-to-1 monitor
Supports up to 5 sessions
VLAN IEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP (static trunk)
Supports 4 trunk groups with 10 ports per trunk
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth Control Per port bandwidth control
  Ingress: 10Kbps~13000Mbps
  Egress: 10Kbps~13000Mbps
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports Major ring and sub-ring
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/TOS field in IP packet
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
  MAC Address
  IP Address
  Ethertype
  Protocol Type
  VLAN ID
  DSCP
  802.1p Priority
Up to 512 entries
Security Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management Interfaces Console;Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
Event Management Remote
System log
SMTP
