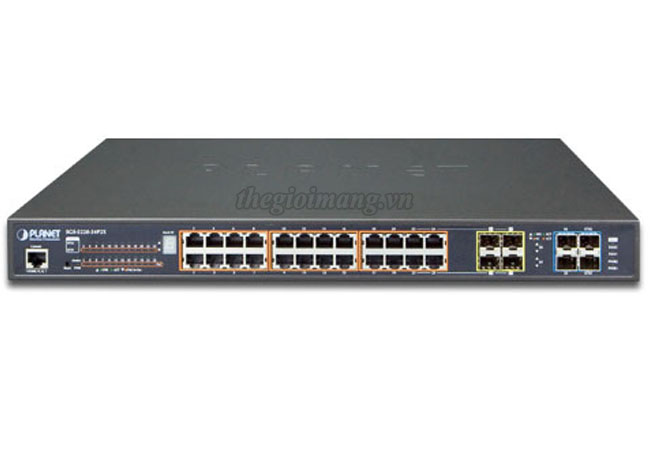

Switch Planet SGS-5220-24P2X: L2+ 24-Port 10/100/1000T 802.3at PoE + 2-Port 10G SFP+ Stackable Managed Switch / 440W
Thiết bị chuyển mạch Planet SGS-5220-24P2X
| Model | SGS-5220-24P2X |
| Hardware Specifications | |
|---|---|
| Copper Ports | 24 x 10/ 100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports |
| 10/100/1000Mbps / SFP Combo Interfaces | 4 x 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (Mini-GBIC) supports 100/1000Mbps Dual mode DDM, shared with Port-21 to Port-24 |
| 10Gbps Fiber Uplink Ports | 2 x 1/10GBASE-SR/LR SFP+ slots |
| 10Gbps Fiber Stackable Ports | 2 x 10GBASE-SR/LR SFP+ slots |
| Console | 1 x RJ45 serial port (115200, 8, N, 1) |
| Switch Fabric | 128Gbps / non-blocking |
| Throughput | 95.2Mpps@64Bytes |
| Address Table | 32K entries, automatic source address learning and ageing |
| Shared Data Buffer | 4.1megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Power Requirements | 100~240V AC, 50/60Hz |
| Power Consumption (Full Loading) | 502 watts (max.)/ 1712.8 BTU Max. |
| ESD Protection | 6KV DC |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| Weight | 4887g |
| Stacking Functions | |
| Stacking Ports | 2 SFP+ slots |
| Stacking Numbers | 16 |
| Stacking Bandwidth | 40Gbps full duplex |
| Stack ID Display | 7-Segment LED display (1~9, A~F, 0) |
| Stack Topology | Ring / Chain / Back-to-Back |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per Ports 56V DC, Max. 30.8 watts |
| PoE Power Budget | 440 watts (max.) @ 25 degrees C 380 watts (max.) @ 50 degrees C |
| PoE Ability | PD @ 7 watts 24 units PD @ 15.4 watts 24 units PD @ 30.8 watts 14 units |
| Layer 2 Functions | |
| Basic Management Interfaces | Console, Telnet, Web Browser, SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| Port Configuration | Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP / Static Trunk Supports 14 groups of 8-Port trunk |
| QoS | Traffic classification based, Strict priority and WRR 8-level priority for switching - Port Number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP Packet |
| IGMP Snooping | IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support |
| MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support |
| Access Control List | IP-based ACL / MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 500Kb~80Mbps Egress: 64Kb~80Mbps |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
