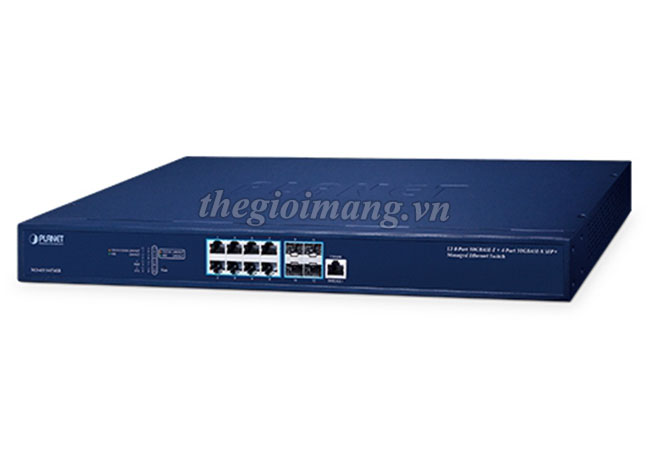

XGS-6311-8T4XR - Planet L3 8-Port 10GE + 4-Port 10G SFP+ Mgd Eth Switch w/ Dual AC
Planet XGS-6311-8T4XR là bộ chuyển mạch được quản lý lớp 3, với 8 cổng 10GBASE-T RJ45 và 4 cổng quang 10G SFP+ có thể kết hợp với PLANET UNI-NMS, để giúp cho việc quản trị mạng dễ dàng và hiệu quả hơn. Thiết bị được thiết kế dành cho hệ thống AP Wi-Fi 6/6E/7, NAS và Máy chủ yêu cầu băng thông cao.
Các tính năng chính Planet XGS-6311-8T4XR - L3 10G Managed Switch:
Thông số kỹ thuật
| Model | XGS-6311-8T4XR |
|---|---|
| Hardware Specifications | |
| Copper Ports | 8 100/1G/2.5G/5G/10GBASE-T RJ45 auto negotiation ports (Ports 1 to 8) |
| SFP+ Slots | 4 10GBASE-X SFP+ interfaces (Ports 9 to 12) Compatible with 1G/2.5GBASE-SX/LX/BX SFP transceiver |
| Console | 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
| CPU | MIPS 800MHz |
| RAM | 512Mbytes |
| Flash Memory | 32Mbytes |
| Dimensions (W x D x H) | 441.5 x 207.5 x 44 mm, 1U height |
| Weight | 2831g |
| Power Consumption | Max. 22.3 watts/76BTU (Power on without any connection) Max. 56 watts/190.96 BTU (Full loading) |
| Power Requirements | Dual AC 100~240V, 50/60Hz |
| Fan | 2 |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 240Gbps/non-blocking |
| Switch Throughput | 178.56Mpps |
| Address Table | 32K MAC address table with auto learning function |
| ARP Table | 8K |
| Routing Table | 12K |
| IP Interface | 1024 |
| ACL Table | 4K |
| Shared Data Buffer | 16MB |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 12KB |
| Standards & Environment | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
Data sheet Planet XGS-6311-8T4XR
| Software Functions | XGS-6311-8T4XR L3 8-Port 10GBASE-T + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch with Dual 100~240V AC Redundant Power |
|---|---|
| IPv4 Layer 3 Functions | |
| IP Routing Protocol | Static route RIPv1/v2 OSPFv2 BGP4 Hardware-based Layer 3 routing |
| Layer 3 Protocol | ARP ARP Proxy IGMP Proxy |
| IPv6 Layer 3 Functions | |
| IP Routing Protocol | IPv6 Static Route RIPng OSPFv3 BGP6 (BGP4+) PIM6 IPv6 RA (Router Advertisement) IPv6 LPM Routing Hardware-based Layer 3 routing SNMP over IPv6 Support IPv6 IPSec Support IPv6 ACL |
| Other | ICMPv6,ND,DNSv6 DNS over IPv6 Support Layer 2 Function |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect |
| Port Status | Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
| VLAN | 802.1Q tagged based VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN |
| Bandwidth Control | TX/RX/Both |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group |
| QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR |
| Multicast | IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024 |
| Security Functions | |
| Access Control List | Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 2K entries |
| Security | Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels |
| AAA | TACACS+ and IPv4/IPv6 over RADIUS |
| Authentication | IEEE 802.1x port-based network access control |
| Management Functions | |
| Basic Management Interfaces | Console;Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| Management | IPv4 and IPv6 dual stack management SNMP over IPv6 Support User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups HTTP over IPv6 Supports IPv4/IPv6 FTP/TFTP IPv4/IPv6 SNTP/NTP Supports ping, trace route function for IPv4 and IPv6 RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH IPv4/IPv6 Telnet IPv6 Radius+ Support The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 IPv6 TACACS+ support PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro |
