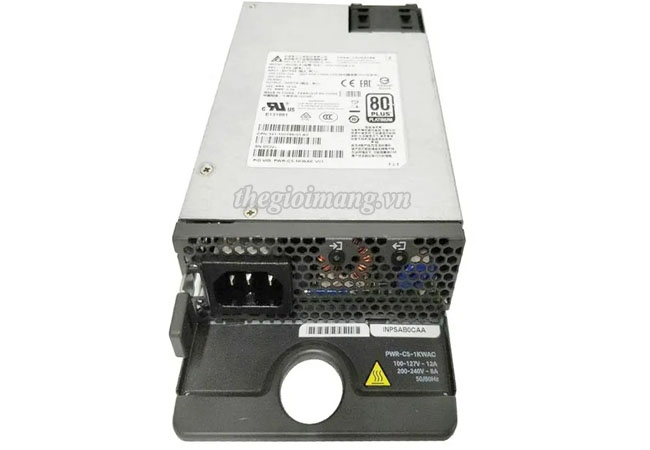

PWR-C5-1KWAC= Cisco 1KW AC Config 5 Power Supply - Compatible with: Catalyst 9200, 9200L.
Bộ nguồn Cisco PWR-C5-1KWAC
| SKU | PWR-C5-1KWAC= |
| Power supply rated maximum | 1000W |
| Total output BTU (Note: 1000 BTU/hr = 293W) | 3412BTU/hr, 1000W |
| Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
| Input current | 12-6A |
| Output ratings | 54V at 16.5A |
| Output holdup time | 20 ms minimum at 100VAC |
| Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
| Power cord rating | 15A |
| Physical specifications | (H x W x D): 1.58 x 4.0 x 7.6 in Weight: 2 lb (0.9 kg) |
| Operating temperature | Normal operating temperature* and altitudes: ● -5°C to +45°C, up to 5000 feet (1500m) ● -5°C to +40°C, up to 10,000 feet (3000m) *Minimum ambient temperature for cold start is 32°F (0°C) Short-term* exceptional conditions: (9200L/9200 only) ● -5°C to +50°C, up to 5000 feet (1500m) ● -5°C to +45°C, up to 10,000 feet (3000m) ● -5°C to +45°C, at sea level with single fan failure *Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | -40 to 158°F (-40 to 70°C) |
| Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
| Altitude | 10,000 ft. (3000 meters), up to 45°C |
| MTBF (hours) | 1,600,060 |
| EMI and EMC compliance | FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55024, EN300 386*, EN 61000-3-2, EN 61000-3-3 EN 61000-6-1 |
| Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| LED indicators | “AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK |
