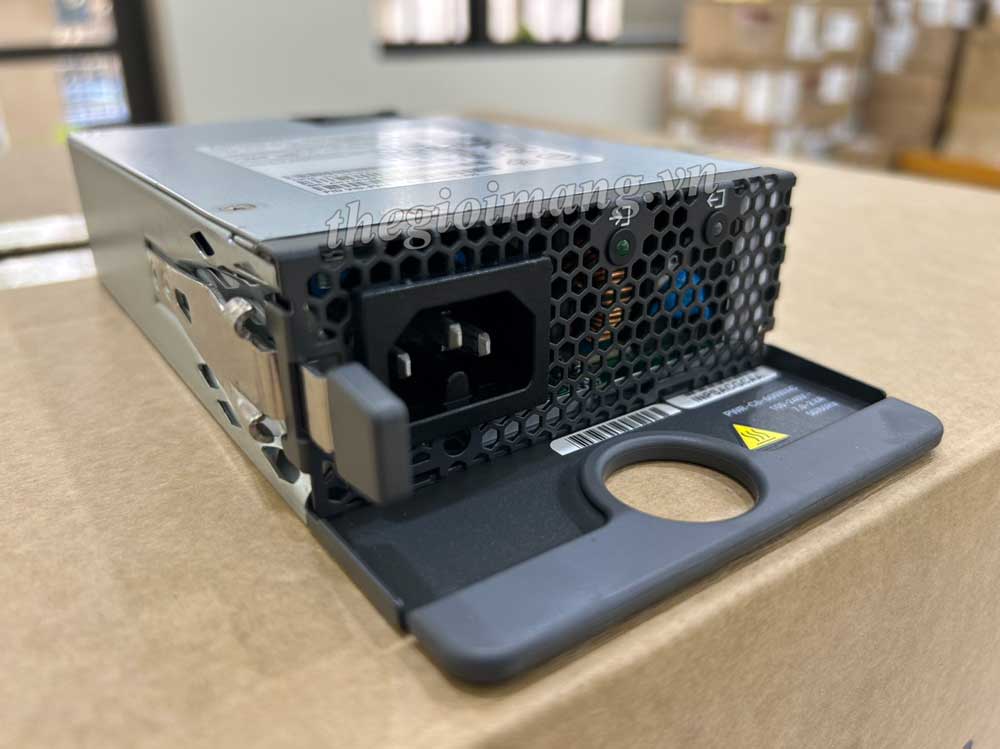

Power Cisco PWR-C5-600WAC=

Nguồn 600WAC Cisco PWR-C5-600WAC=

  • Cisco 600W AC Config 5 Power Supply
  • Tương thích với: Catalyst C9200, C9200L
  • Hàng chính hãng Cisco
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Nguồn 600WAC Config 5 Power Supply Cisco PWR-C5-600WAC

SKU PWR-C5-600WAC=
Power supply rated maximum 600W
Total output BTU (Note: 1000 BTU/hr = 293W) 2047.3BTU/hr, 600W
Input-voltage range and frequency 100-240VAC, 50-60 Hz
Input current 7-2.8A
Output ratings 54V at 11.1A
Output holdup time 20 ms minimum at 100VAC
Power-supply input receptacles IEC 320-C16 (IEC60320-C16)
Power cord rating 15A
Physical specifications (H x W x D): 1.58 x 4.0 x 7.6 in
Weight: 1.7 lb (0.77 kg)
Operating temperature Normal operating temperature* and altitudes:
 ● -5°C to +45°C, up to 5000 feet (1500m)
 ● -5°C to +40°C, up to 10,000 feet (3000m)
*Minimum ambient temperature for cold start is 32°F (0°C)

Short-term* exceptional conditions: (9200L/9200 only)
 ● -5°C to +50°C, up to 5000 feet (1500m)
 ● -5°C to +45°C, up to 10,000 feet (3000m)
 ● -5°C to +45°C, at sea level with single fan failure

*Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15
occurrences
Storage temperature -40 to 158°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing 5 to 90% noncondensing
Altitude 10,000 ft. (3000 meters), up to 45°C
MTBF (hours) 1,600,060
EMI and EMC compliance FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55024, EN300 386*, EN 61000-3-2, EN 61000-3-3
EN 61000-6-1
Safety compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
LED indicators “AC OK”: Input power to the power supply is OK
“PS OK”: Output power from the power supply is OK

PWR-C5-600WAC= : Cisco 600W AC Config 5 Power Supply


Datasheet Cisco Catalyst 9200
