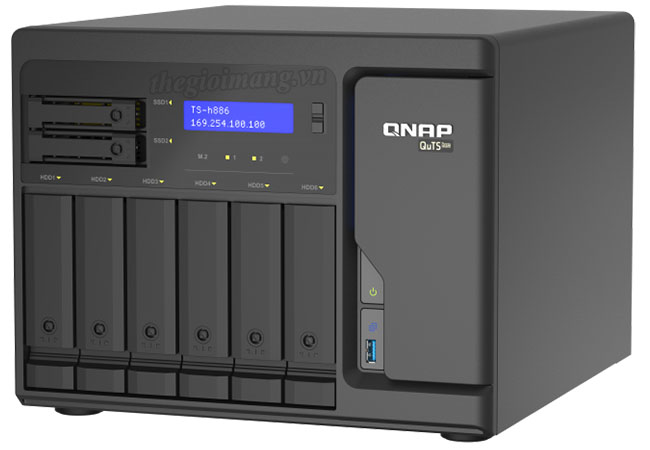

Thiết bị lưu trữ NAS QNAP TS-h886 (TS-h886-D1602-8G) : 8-bay NAS, Intel® Xeon® D-1602 2-core/4-thread processor, up to 3.2 GHz, 8 GB UDIMM DDR4 ECC (2 x 4 GB)
Thiết bị lưu trữ NAS QNAP TS-h866 (TS-h886-D1602-8G)
| Mã sản phẩm | TS-h866-D1602-8G | |
|---|---|---|
| CPU | • Intel® Xeon® D-1602 2-core/4-thread processor, up to 3.2 GHz • Architecture: 64-bit x86 • Floating Point Unit: Yes • Encryption Engine: AES-NI • Hardware-accelerated Transcoding: Optional via a PCIe adapter |
|
| System Memory | • System: 8 GB UDIMM DDR4 ECC (2 x 4 GB) • Maximum: 128 GB (4 x 32 GB) • Memory Slot: 4 x UDIMM DDR4 |
|
| Flash Memory | 5 GB (Dual boot OS protection) | |
| Drive Bays | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s | |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
|
| Hot-swappable | Yes | |
| M.2 SSD Slot | 2 x M.2 2280/22110 NVMe Gen3 x4 slots | |
| SSD Cache Acceleration Support | Yes | |
| GPU pass-through | Yes | |
| SR-IOV | Yes | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M/10M) | |
| Jumbo Frame | Yes | |
| PCIe Slots | 2 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x8 |
|
| USB 3.2 Gen 1 port | 3 | |
| Form Factor | Tower | |
| LED Indicators | System status, LAN, USB, Disk 1~8, M.2 SSD 1~2 | |
| Buttons | Power, Reset, USB Auto Copy | |
| Dimensions (HxWxD) | 231.9 × 292.9 × 319.8 mm | |
| Weight (Net) | 8.5 ~ 10.11 kg | |
| Operating temperature | 0 - 40°C (32°F - 104°F) | |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | |
| Power Supply Unit | 250W PSU, 100~240V | |
| Power Consumption: Operating Mode, Typical |
75.79 W | |
| Fan | System fan: 2 x 80mm, 12VDC CPU fan: 1 x 90mm, 12VDC |
|
| Kensington Security Slot | Yes | |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 | |
Datasheet QNAP TS-h866 (TS-h886-D1622-8G)
QNAP TS-h886 (TS-h886-D1602-8G) : 8-bay NAS, Intel® Xeon® D-1602 2-core/4-thread processor, up to 3.2 GHz, 8 GB UDIMM DDR4 ECC (2 x 4 GB),2 × M.2 22110/2280 NVMe PCIe Gen3 x4, 4 × 2.5GbE, 2 × PCIe Gen3 x8, 3 × USB 3.2 Gen 1 Port, 250W PSU, 100~240V
