Mô tả sản phẩm

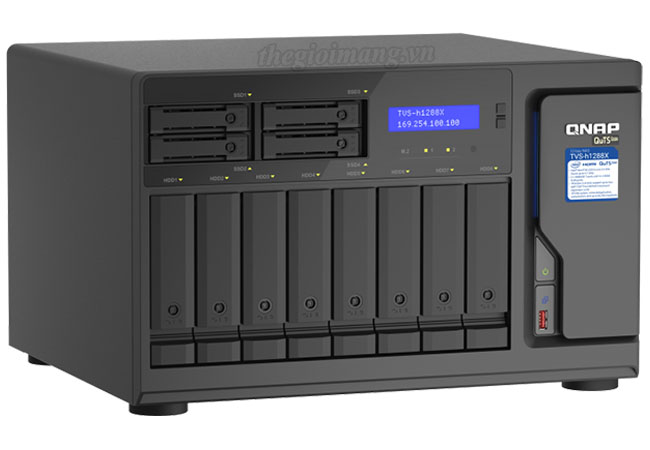

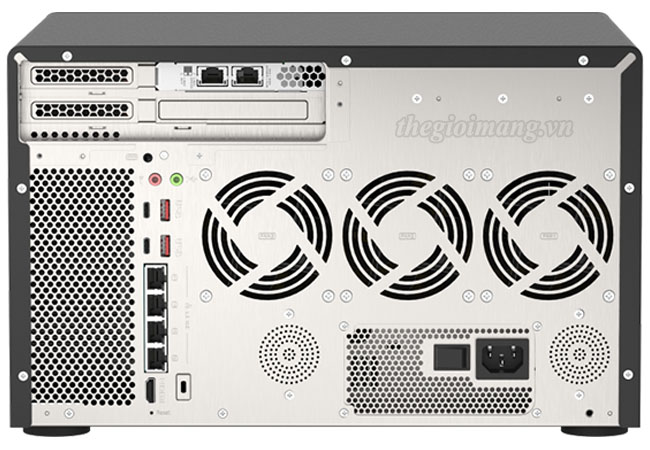

Thiết bị lưu trữ NAS QNAP TVS-h1288X

Mã sản phẩm	TVS-h1288X-W1250-16G
CPU	Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz)
CPU Architecture	64-bit x86
Graphic Processors	Intel® UHD Graphics P630
Floating Point Unit	✔
Encryption Engine	✔ (AES-NI)
Hardware-accelerated Transcoding	✔
System Memory	16 GB ECC UDIMM DDR4 (2 x 8 GB)
Maximum Memory	128 GB (4 x 32 GB)
Memory Slot	4 x Long-DIMM DDR4
Flash Memory	5GB (Dual boot OS protection)
Drive Bays	8 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch bays: - 3.5-inch SATA hard disk drives - 2.5-inch SATA hard disk drives - 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives
Hot-swappable	✔
M.2 SSD Slot	2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots
SSD Cache Acceleration Support	✔
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	4
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)	Optional via a PCIe adapter
10 Gigabit Ethernet Port	2 x 10GBASE-T (10G/1G)
Thunderbolt Port	Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter
PCIe Slots	3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4
USB 3.2 Gen 2 (10Gbps) Port	2 x Type-C 3 x Type-A
Media I/O	- HDMI Output: 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) - Audio Input: 1 x 3.5 mm dynamic microphone jacks - Audio Output: 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
Form Factor	Tower
LED Indicators	System status, LAN, USB, Disk 1~12, M.2 SSD 1~2
LCD Display/ Button	✔
Buttons	Power, Reset, USB Auto Copy
Dimensions (HxWxD)	234.6 × 369.9 × 319.8 mm
Weight (Net)	11.27 kg
Operating temperature	0 - 40 °C
Power Supply Unit	550W PSU, 100~240V
Power Consumption	97.492 W
Fan	System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC
Max. Number of Concurrent Connections (CIFS)	9000

Xem thêm

Thông số kỹ thuật

8-Bays, Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz), 6 GB DDR4 ECC memory (2 x 8 GB), ideal for high-speed media collaboration over Thunderbolt™ 3 and 10GbE virtual machine applications.

2 × 10GBASE-T and 4 × 2.5GbE LAN ports.
PCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards.
Supports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion.
4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz).
USB 3.2 Gen 2 (10Gbps) Port, Thunderbolt™ 3 connectivity by installing QXP-T32P expansion cards in the PCIe Gen 3 x4 slots.

Data sheet QNAP TVS-h1288X

Xem thêm thông số kỹ thuật
