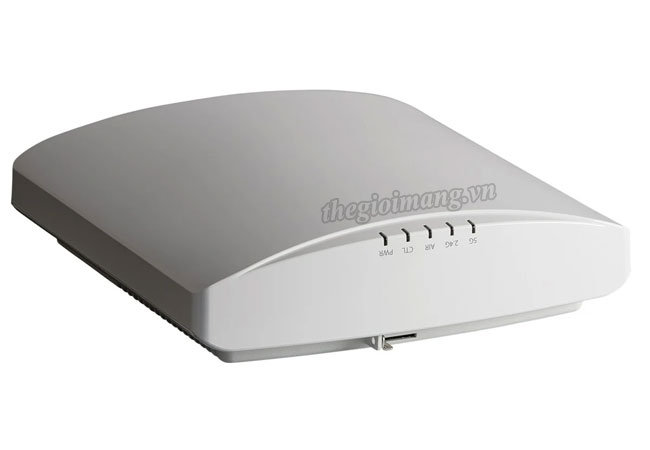

Thiết bị Wi-Fi 6 Indoor Access Point Ruckus R730
Model | Ruckus R730 |
WI-FI | |
Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac/ax |
Supported Rates | · 802.11ax: 4 to 4800 Mbps · 802.11ac: 6.5 to 3467 Mbps · 802.11n: 6.5 to 600 Mbps · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps |
Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
MIMO | · 8x8 MU-MIMO · 8x8 SU-MIMO |
Spatial Streams | · 8 MU-MIMO · 8 SU-MIMO |
Radio Chains and Streams | · 8x8:8 |
Channelization | · 20, 40, 80MHz |
Modulation | · OFDMA (up to 1024-QAM) |
Security | · WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK · WIPS/WIDS |
Other Wi-Fi Features | · WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/vHotspot · Hotspot 2.0 · Captive Portal · WISPr |
RF | |
Antenna Type | · BeamFlex+ Adaptive Antennas with 4000+ unique antenna patterns · Horiziontal and Vertical polarization (PD-MRC) |
Antenna Gain (max) | · Up to 2 dBi |
Frequency Bands | · 2.4 - 2.484 GHz · 5.17 - 5.33 GHZ · 5.49 - 5.71 GHz · 5.735 - 5.835 GHz |
PERFORMANCE AND CAPACITY | |
Peak PHY Rates | · 2.4GHz: 1.148 Gbps (11ax) · 5GHz: 4.8 Gbps (11ax) |
Client Capacity | · Up to 1024 clients per AP |
Simultaneous VoIP Clients | · Up to 60 per AP |
SSID | · Up to 16 per radio |
NETWORKING | |
Controller Platform Support | · SmartZone (SZ3.6.2 and SZ v5.1.1) · ZD (ZD10.1.2) · Standalone · Please note: R730 is *not* supported on SZ v5.0.x and SZ v5.1.0 · Cloud |
Mesh | · SmartMesh™ wireless meshing technology |
IP | · IPv4, IPv6 |
VLAN | · 802.1Q · BSSID-based (16 BSSIDs / radio) · Port-based · Dynamic, per user based on RADIUS |
802.1x | · Wired & wireless · Authenticator & Supplicant |
Tunnel | · RUCKUSGRE, SoftGRE |
Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting |
IoT Capable | · Yes |
OTHER RADIO TECHNOLOGIES | |
IoT | · BLE, Zigbee |
PHYSICAL INTERFACES | |
Ethernet | · 1x 1/2.5/5 Gbps port, RJ-45 · 1x 10/100/1000 Mbps port, RJ-45 |
USB | · 1 USB 2.0 port, Type A |
PHYSICAL CHARACTERISTICS | |
Physical Size | · 22.19 x 24.96 x 6 cm · 8.74 x 9.83 x 2.36 in. |
Weight | · 1.53 kg · 3.37 lbs |
Mounting | · Wall, Acoustic ceiling, Desk · Secure Bracket (sold separately) |
Physical Security | · Hidden Latching Mechanism |
Operating Temperature | · -0C (32F) to 50°C (122°F) |
Operating Humidity | · Up to 95%, non-condensing |
901-R730-WW00 : R730 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, Ultra-High Density performance, 12 spatial streams, adaptive antennas, PoE support. Includes adjustable acoustic drop ceiling bracket. Two Ethernet ports with 1GbE and 5Gbe. Does not include power adaptor
901-R730-Z200 : R730 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, Ultra-High Density performance, 12 spatial streams, adaptive antennas, PoE support. Includes adjustable acoustic drop ceiling bracket. Two Ethernet ports with 1GbE and 5Gbe. Does not include power adaptor
Data sheet Ruckus R730 Indoor 802.11ax 8x8:8 Wi-Fi Access Point with Multi-gigabit backhaul
