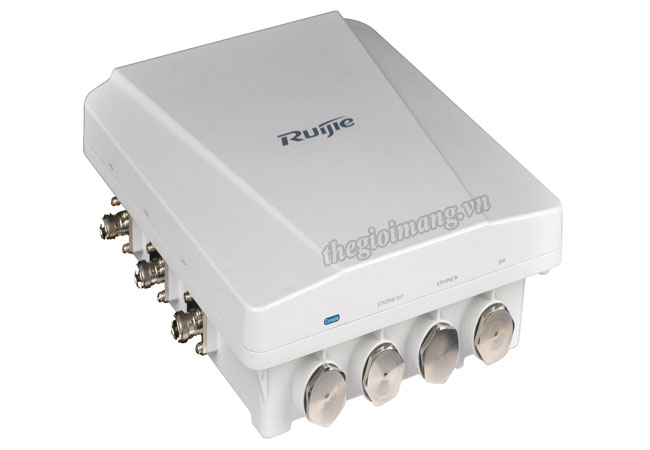

Ruijie RG-AP630(IDA2) Outdoor Wireless Access Point :
Thiết bị Wi-Fi Outdoor Access Point Ruijie RG-AP630(IDA2)
| Model | Ruijie RG-AP630(IDA2) |
| Target Deployments | • For big campus, wireless city, harbour, storage room, mine |
| Basic Specifications | |
| Radio | • Concurrent dual-radio dual-band |
| Protocol | • 802.11a/b/g/n/ac Wave2 |
| Operating Bands | • 802.11b/g/n: 2.4GHz to 2.483GHz • 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries) |
| Antenna | • Built-in Directional Smart Antenna (support external/internal antenna switching) |
| Antenna Loba Orientation | • Internal Directional: Horizontal 60 degrees,Vertical 30 degrees |
| Antenna Gain | • 10dBi |
| Max Throughput | • Build-in antenna model: - 800Mbps@2.4G - 1733Mbps@5G - 2.533Gbps per AP; • External antenna model: - 600Mbps@2.4G - 1300Mbps@5G - 1.9Gbps per AP |
| Spatial Streams | • 4 |
| Modulation | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps • MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
| Receiver Sensitivity | • 11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps) • 11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), - 77dBm(54Mbps) • 11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15 • 11ac HT20: -90dBm (MCS0) , -63dBm (MCS9) • 11ac HT40: -85dBm(MCS0) , -60dBm (MCS9) • 11ac HT80: -82dBm(MCS0) , -58dBm (MCS9) |
| Maximum Transmit Power | • 27dBm Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations. |
| Adjustable Power | • 1dBm |
| IP Rating | • IP67 |
| Ports | |
| Service Port | • One 10/100/1000Base-T Port(ETH1/PoE IN) • One 1000M SFP Port(Combo Port) |
| Management Port | • 1 Console Port(RJ45) |
| Power | |
| Power Supply | • PoE+ (802.3at) |
| Power Consumption | • <25W |
| WLAN | |
| Maximum clients per AP | • Up to 512 |
| SSID capacity | • Up to 16 per radio • Up to 32 per AP |
| SSID hiding | • Support |
| Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID | • Support |
| Remote Intelligent Perception Technology (RIPT) | • Support |
| X-speed | • Support |
| Intelligent load balancing based on the number of users or traffic | • Support |
| STA control | • SSID/radio-based |
| Bandwidth control | • STA/SSID/AP-based speed control |
| Preference for 5GHz (band select) | • Support |
| Wireless position tracking | • Support |
| Dynamic Frequency Selection(DFS) | • Future Release Support |
| Security | |
| PSK, Web, and 802.1x authentication | • Support |
| Data encryption | • WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
| QR code authentication | • Support |
| SMS authentication | • Support |
| PEAP authentication | • Support |
| Data frame filtering | • Whitelist, static/dynamic blacklist |
| User isolation | • Support |
| Rogue AP detection and countermeasure | • Support |
| Dynamic ACL assignment | • Support |
| WAPI | • Support |
| RADIUS | • Support |
| CPU Protection Policy (CPP) | • Support |
| Network Foundation Protection Policy (NFPP) | • Support |
| Wireless Intrusion Detection System(WIDS) | • Support |
| Wireless Intrusion Prevention System (WIPS) | • Support |
| Routing | |
| IPv4 address | • Static IP address or DHCP reservation |
| IPv6 CAPWAP tunnel | • Support |
| ICMPv6 | • Support |
| IPv6 address | • Manual or automatic configuration |
| Multicast | • Support |
| Management and Maintenance | |
| Network management | • SNMP v1/v2C/v3, Telnet, SSH, TFTP, and web management |
| Visualized wireless heat map analysis | • Support (need to integrate with SNC) |
| Real-time spectrum analysis | • Support (need to integrate with SNC) |
| Fault detection and alarm | • Support |
| Cloud AC management | • Support |
| Statistics and logs | • Support |
| FAT/FIT switching | • The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. • The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. |
| External Characteristics | |
| Lock | • Support |
| LED Indicators | • Power status and WDS signal strength |
| Relevant Standard | |
| Wi-Fi Alliance Certification | • Support |
| Safety Standard | • GB4943, , EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC Standard | • GB9254-2008, EN301 489, EN55022 |
| Health Standard | • EN 50385, |
| Radio Standard | • FCC Part15,EN300328, EN301893 |
| Vibration Standard | • GB/T 2423 |
| Specifications | |
| Dimensions (W x D x H) (mm) | • 276 × 246 × 90 |
| Weight | • <2.5kg |
| Work Environment | |
| Temperature | • Operating Temperature: -40°C to 65°C (heater module will be enabled at -15°C) • Storage Temperature: -40°C to 85°C |
| Humidity | • Operating Humidity: 0% to 100% (non-condensing) • Storage Humidity: 0% to 100% (non-condensing) |
| Installation Mode | • Wall/pole-mount installation |
RG-AP630(IDA2) : Outdoor Wireless Access Point, IP67 rating, built-in directional smart antenna and lightning arrester, 4×4 MIMO, 4 spatial streams, support internal/external antenna switching, support concurrent 802.1 1a/b/g/n/ac and Wave 2, FAT/FIT mode, PoE+.
Data sheet Ruijie RG-AP630 Outdoor Wireless Access Point Series
