Ruijie RG-RAP6260(G) AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor Access Point :
Thiết bị Wi-Fi 6 Outdoor Access Point Ruijie Reyee RG-RAP6260(G)
Model | Ruijie RG-RAP6260(G) |
Radio | • Dual-stream dual-band |
Protocol | • Concurrent 802.11a/b/g/n/ac/ax |
Operating Bands | • 802.11b/g/n/ac/ax :2.4G ~ 2.4835GHz • 802.11a/n/ac/ax: 5G:5.150~5.350GHz,5.725~5. (country specific) |
Antenna | • Internal antennas (2.4G: 4dBi,5G: 6dBi) |
Spatial Streams | • 2.4G 2x2MIMO 5G 2x2MIMO |
Max Throughput | • Up to 575Mbps at 2.4G • Up to 1200Mbps at 5G • Totally 1775Mbps per AP |
Modulation | • DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM |
Receive Sensitivity | • 11b:-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps) • 11a/g:-89dBm(6Mbps),-80dBm(24Mbps),-76dBm(36Mbps),-71dBm(54Mbps) • 11n:-83dBm@MCS0,-65dBm@MCS7,-83dBm@MCS8,-65dBm@MCS15 • 11ac HT20:-83dBm(MCS0), -57dBm(MCS9) • 11ac HT40:-79dBm(MCS0), -57dBm(MCS9) • 11ac HT80:-76dBm(MCS0), -51dBm(MCS9) • 11ax:HE80:-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11) |
Maximum Output Power of the Transmitter (Single Stream) |
• 2.4GHz(2.4~2.4835GHz):26dBm • 5GHz(5.150~5.250GHz,5.725~5.850GHz):25dBm (country-specific,comply with local laws) |
Adjustable Power | • 1dBm |
Dimensions | • 298mm×298mm×65mm (excluding mounting kits) |
Weight | • ≤1.35kg (excluding mounting kits) |
Service Ports | • 1 10/100/1000 Base-T Ethernet port supports PoE IN; • 1 100/1000 Base-X SFP Port |
Management Port | • N/A |
LED Indicator | • Single indicator (Blue light) |
Power Supply | • 802.3at PoE (Warning:802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) |
Power Consumption | • ≤17W |
Bluetooth | • Support |
Environment | • Operating Temperature:-40°C~65°C • Storage Temperature:-40°C~85°C • Operating humidity:0%~100%, non-condensing • Storage humidity:0%~100%,condensing/non-condensing |
Installation | • Ceiling/Wall-Mountable |
Safety Standard | • GB4943、IEC 60950-1 |
EMC Standard | • GB9254、EN301 489,EN50155:EN50121 |
Vibration Standard | • IEC61373 |
Radio Standard | • EN300 328,EN301 893 |
MTBF | • >400000H |
WLAN | • Maximum number of clients: 512 • Recommended number of clients: 100 • Up to 8 SSID • Support SSID hiding • Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID • SSID-based and radio-based STA limit • Support Layer 2 user isolation |
Roaming | • Support layer 2 and layer 3 roaming |
Security | • Support PSK authentication • Support static blacklist and whitelist • Support WPA(TKIP),WPA2(AES),WPA-PSK data encryption |
Routing | • Support static IP address, DHCP, PPPoE Dial |
Management and Maintenance | • Support unified networking of all network equipment • Support local or remote management with Ruijie Cloud APP • Support local management with web • Support remote management with Ruijie Noc Cloud platform |
Platform Management Features | • Automatic RF adjustment via the platform • Unified configuration via the platform • Unified monitoring via the platform |
Ruijie RG-RAP6262(G) Wi-Fi 6 Outdoor Omnidirectional Access...
Liên hệ để có giá tốt

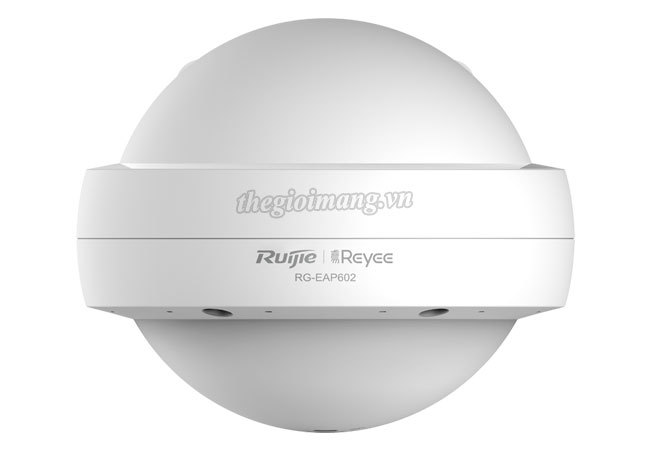

Ruijie RG-EAP602 AC1200 Dual Band Gigabit Outdoor Access Point...
