Model	Ruijie RG-RAP6262(G)
Basic Feature
Wi-Fi Standards	• Wi-Fi 6 (IEEE 802.11ax) • Wi-Fi 5 (IEEE 802.11ac Wave2) • Wi-Fi 4 (IEEE 802.11n)
RF Design	• 2.4 GHz, 2×2, MU-MIMO • 5 GHz, 2×2, MU-MIMO
Max. Wi-Fi Speed	• 2.4 GHz: 574 Mbps • 5 GHz: 1201 Mbps
Antenna	• 4
Antenna Type	• Built-In Omnidirectional
Antenna Gain	• 2.4 GHz: 3 dBi • 5 GHz: 5 dBi
Transmit Power	• EIRP ≤ 26 dBm(2.4GHz) ≤ 25 dBm( 5GHz ) country-specific restrictions apply
Fixed Ports	• 2×10/100/1000 Base-T
Max. Clients	• 256, 64(2.4GHz) or 256(Total)
Recommended Clients	• 100 • 11AX Terminal: 16(2.4GHz) + 84(5GHz) • 11AC Terminal: 16(2.4GHz)+64(5GHz)
Max. SSIDs	• 8
Software Feature
WLAN Basic Features
SSID Hiding	• Support
Power Adjustment	• Support
Roaming	• Layer 2 roaming • Layer 3 roaming
OFDMA	• Support
Target wake time (TWT)*	• Support
WMM	• Support
Radar Signal Detection and Frequency Hopping	• Support
WLAN Security
Security Mode	• WPA-PSK, WPA2-PSK, WPA/WPA2-PSK;
Blacklist and Whitelist	• Support
Enhanced User Experience
Wi-Fi Optimization	• Support
Automatic RF adjustment via the platform	• Support
User Isolation	• Layer 2 user isolation
STA limit	• Support
Removing Low-RSSI STAs	• Support
Configuring STAs' RSSI Threshold	• Support
Average Speed Threshold	• Support
Adjusting Sending Rate of Beacon and Probe Response	• Support
Syslog Recording Why Users Lose Connection	• Support
Auto Channel and Power Adjustment on Cloud	• Support
RSSI Threshold for STA Access	• Support
Quick channel adjustment (auto channel selection)	• Support
Networks
Network Access Mode	• DHCP Client
VLAN	• Support
System
Cloud Management	• Support
App Management	• Support
App Upgrade	• Support
App Restart	• Support
Scheduled Restart	• Support
Local Upgrade	• Support
Online Upgrade	• Support
Factory Reset	• Support
WLAN Features
Frequency Bandwidth	• 2.4 GHz: 20/40 MHz • 5 GHz: 20/40/80 MHz
Recommended Wi-Fi Coverage Radius	• 2.4G 50m, 5G 150m
Max. Wi-Fi Coverage Radius	• 2.4G 100m, 5G 300m
Operation Frequency Bands	• 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz • 802.11a/n/ac: 5.150 GHz to 5.350 GHz • 802.11a/n/ac/ax: 5.470 to 5.725 GHz , 5.725 to 5.850 GHz country-specific restrictions apply
Physical
LED Indicator	• 3× system LED indicator
Buttons	• 1×Reset button
Dimensions (W x D x H)	• 200mm × 220mm × 166mm(Without Mounting Bracket)
Weight	• 1.2kg(Without Mounting Bracket)
Power
Power Supplies	• IEEE 802.3at PoE • DC 12V/1.5A
Power Consumption	• ≤ 18W
DC Port Dimensions	• Outer Diameter: 5.5 mm • Inner Diameter: 2.1 mm • Length: 10 mm
Environmental
Operating Temperature	• -30°C to 65°C
Storage Temperature	• -40°C to 85°C
Operating Humidity	• 0% to 100% (Noncondensing)
Storage Humidity	• 0% to 100% (Noncondensing)
IP(Ingress Protection)	• IP68
Port Surge	• 4 kV
MTBF	• >250000H

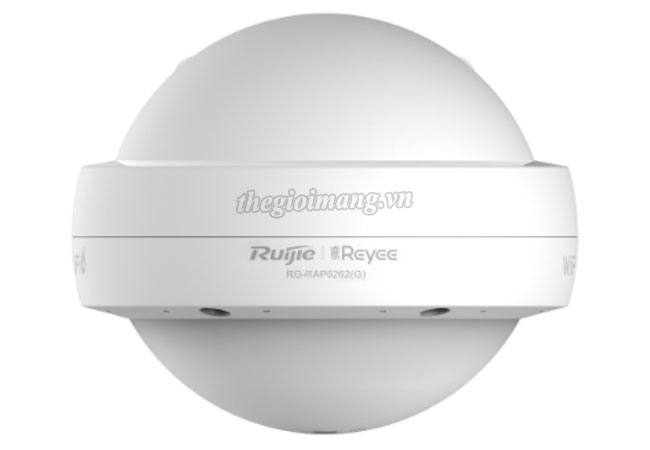

RG-RAP6262(G) : 802.11AX-compliance Wi-Fi 6 high-power outdoor omnidirec-tional dual-band access point, with built-in high-gain omnidirec-tional antennas, providing a maximum access rate of 574 Mbps + 1201 Mbps, supporting both DC power supply and PoE power supply

Data sheet Ruijie RG-RAP6262(G) Wi-Fi 6 Outdoor Omnidirectional Access Point
