Switch Trendnet TI-PG102i-M

Trendnet TI-PG102i-M : ● 8 x Gigabit PoE+ ports ● 2 x SFP slots ● Supports 100/1000Base-FX fiber SFP modules ● PoE power budget: 240W@48VDC or 124W@24VDC ● PoE alive check restarts unresponsive PoE powered devices ● 20Gbps switching capacity ● Hardened IP30 rated metal housing ● Includes DIN-rail mounting bracket ● Operating temperature range of -10° – 75° C (14° – 167° F) ● Supports LACP, STP/RSTP, VLAN, and IGMP Snooping ● IEEE 802.1p QoS with queue scheduling support ● Bandwidth control per port ● Dual redundant power inputs with overload current protection ● Alarm output triggered by power failure ● Power supply sold separately (models: TI-S24048, TI-S48048, TI-S12024)
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Trendnet TI-PG102i-M

Model TI-PG102i-M
Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.1ax
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3az
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports
  • 2 x 100/1000Mbps SFP slots
  • 6-pin removable terminal block (primary/RPS power inputs & alarm relay output)
  • DIP switches
  • LED indicators
  • Reset button
Data Transfer Rate
  • Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch fabric: 20Gbps
  • RAM buffer: 128MB
  • MAC address table: 8K entries
  • Jumbo frames: 10KB
  • Forwarding mode: store and forward
  • Forwarding rate: 14.88Mpps (64-byte packet size)
Management
  • HTTP web-based GUI
  • CLI: Telnet / SSHv2
  • SNMP v1, v2c, v3
  • SNMP trap (up to 5 receivers)
  • RMON groups 1/2/3/9
  • Device configuration backup & restore, upgrade firmware, reboot, and reset to default
  • Multiple administrative or read-only user accounts
  • Enable or disable power saving mode per port
  • Static MAC entries
  • LLDP (Link layer discovery protocol)
  • Netlite device map
  • ONVIF device discovery
  • SNTP
  • SMTP alert
  • Syslog
  • Port statistics/utilization
  • Traffic monitor
  • Port mirror: one to one, many to one
  • Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
  • Loopback detection
  • DHCP relay/option 82
  • ERPS (Ethernet Ring Protection Switching) G8032v2
  • SFP DDMI (Digital Diagnostic Monitoring Interface)
MIB
  • MIB II RFC 1213
  • Bridge MIB RFC 1493
  • RMON (Group 1,2,3,9) RFC 2819 RFC 1757
Spanning Tree
  • IEEE 802.1d STP (spanning tree protocol)
  • IEEE 802.1w RSTP (rapid spanning tree protocol)
  • BPDU filter, guard, and root guard
Link Aggregation
  • Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)
Quality of Service (QoS)
  • 802.1p Class of service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth control per port
  • Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
VLAN
  • 802.1Q tagged VLAN
  • MAC-based VLAN
  • Port isolation
  • Up to 256 VLAN groups, ID range 1-4094
Multicast
  • IGMP snooping v1, v2, v3
  • IGMP querier
  • IGMP fast leave
  • Up to 256 multicast groups
  • Static multicast entries
Access Control
  • 802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
  • DHCP snooping/screening
  • Trusted host/IP access list for management access
  • Port Security/MAC address learning restriction (Up to 100 entries per port)
  • Static/dynamic ARP inspection
ACL
  • Source/Destination MAC address
  • Source/Destination IP address
  • Source Interface
  • VLAN ID
  • EtherType
  • TCP/UDP port 1-65535
Special Features
  • Netlite device discovery and map display in GUI
  • Port security: MAC address learning restriction per port
  • DHCP relay/option 82 & DHCP server snooping/screening support
  • Wide operating temperature range
  • Dual redundant power inputs
  • Alarm relay triggered by power failure
  • Surge and ESD protection
Power
  • PWR (Primary) terminal input: 24 – 57V DC
  • RPS (Redundant) terminal input: 24 – 57V DC
  • Compatible power supply: TI-S12024 (120W), TI-S24048 (240W), TI-S48048 (480W) sold separately
  • Max. Consumption: 13W (no PoE load), 253W (full PoE load)
PoE
  • PoE budget: 240W@48V DC input, 124W@24V DC input
  • 802.3at: Up to 30W per port
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • PoE auto classification
  • PoE port priority/power scheduling/PD alive check
  • Over current/short circuit protection

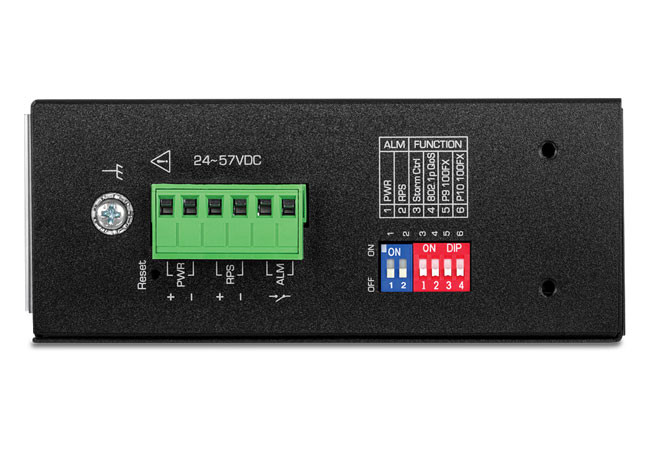

Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.5 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-26
  • Stranded wire (AWG): 12-26
  • Wire strip length: 10-11mm
Dip Switch
Switch Status Function
1 OFF Disable alarm relay for PWR power input
ON Enable alarm relay for power failure on PWR power input
2 OFF Disable alarm relay for RPS power input
ON Enable alarm relay for power failure on RPS power input
3 OFF Storm control managed by switch configuration
ON Enable storm control (Broadcast and DLF rate set to 300pps)
Takes precedence over storm control switch configuration
4 OFF 802.1p QoS managed by switch configuration
ON Enable 802.1p QoS on ports 1 and 2 (Set CoS priority to tag 4 on ports 1 and 2)
Takes precedence over 802.1p QoS switch configuration
5 OFF Port 9 SFP set to Gigabit speed full duplex
ON Port 9 SFP set to 100Mbps speed full duplex
6 OFF Port 10 SFP set to Gigabit speed full duplex
ON Port 10 SFP set to 100Mbps speed full duplex
Alarm Relay Output
  • Relay output with current carrying capacity of 1A, 24V DC
  • Short circuit mode when one power source is connected
  • Open circuit mode when two power sources are connected
Enclosure
  • IP30 rated metal enclosure
  • Fanless passive cooling
  • DIN-Rail mount
  • Grounding point
  • ESD (Ethernet) Protection: 8KV DC
  • Surge (Power) Protection: 6KV DC
MTBF
  • 562,234 hours @ 25° C
  • 142,948 hours @ 75° C
Operating Temperature
  • -10° – 75° C (14° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
Weight
  • 930g (2.05 lbs.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
