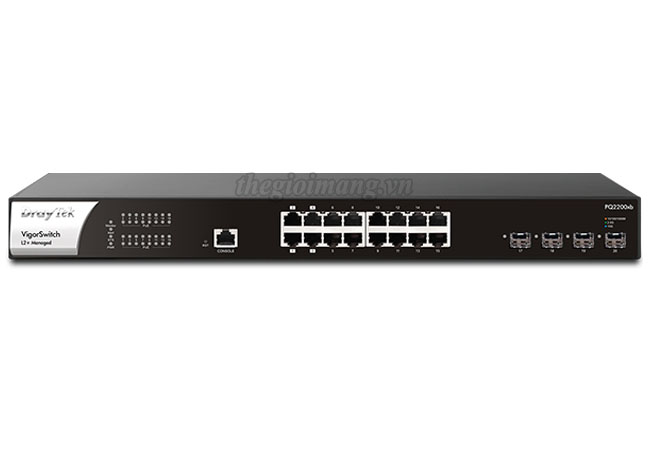

DrayTek VigorSwitch Q2200xb - Full 2.5GbE L2+ Managed Switch with PoE++
Thiết bị chuyển mạch DrayTek VigorSwitch Q2200xb
| Sản phẩm | VigorSwitch Q2200xb |
|
Interface
|
|
|
LAN Port |
16x 10/100/1000/2500Mbps Ethernet, RJ-45 4x 1000Mbps/10Gbps SFP+ slot |
| Console Port | 1x RJ-45 |
| Button | 1x Factory Reset Button |
| PoE | |
| PoE Capable Ports | 4x PoE/PoE+/PoE++ (802.3af/at/bt), up to 90W per port, Type mode A 12x PoE/PoE+ (802.3af/at), up to 30W per port, Type mode A |
| PoE Power Budget | 400 watts |
| Power Cycle on Port | Manual, Auto by Ping check timeout |
| PoE | Power Limit: Có Scheduled On/Off : Có |
|
Capacity
|
|
| Buffer Size | 12 Mbit |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.04 Mpps (64 bytes) |
| MAC Address Table | 16k |
| Jumbo Frame | Up to 10 KB |
| L3 Routing Table | 6k static route + 512 prefix route |
|
Physical
|
|
| Power Input | AC 100-240V @ 6A |
| Dimension (mm) | 440(W) x 281(D) x 44(H) |
| Weight | 4.3 kg (9.0 lb) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Management |
|
