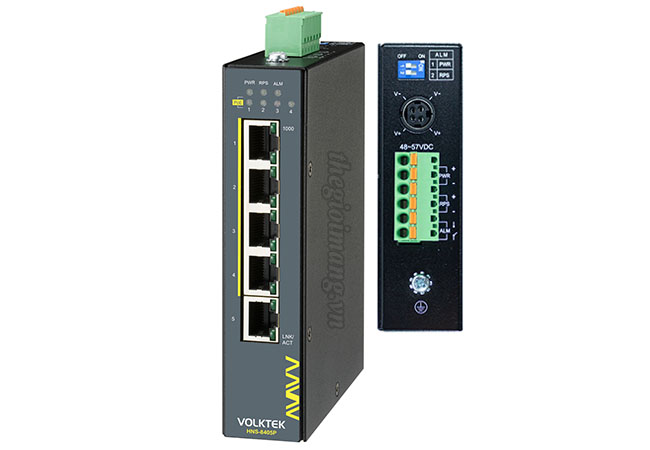

Volktek HNS-8405P - Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 Switch
Thiết bị chuyển mạch Công nghiệp Volktek HNS-8405P
| Model | HNS-8405P |
|---|---|
| Interface | |
| Ports | 4 x 10/100/1000BASE-T (PoE RJ45) 1 x 10/100/1000BASE-T (RJ45) |
| DIP Switch | Primary/Redundant Power Voltage Drop Alarm setting |
| LED Panel | PWR, RPS, ALM, PoE, 1000, LNK/ACT |
| Performance | Throughput: 14,880 pps to 10 Mbps ports 148,800 pps to 100 Mbps ports 1,488,000 pps to 1000 Mbps ports Switch fabric: 10Gbps MAC table size: 8K Jumbo Frame size: 10KBytes |
| Power | |
| Input Voltage | Primary inputs: 48V~57V DC Redundant inputs: 48V~57V DC |
| Connection | Teminal Block, Mini-DIN |
| Power Consumption | System: 9W 130 W (with 4 PoE plus fully loaded) |
| Alarm Relay | One relay output, 1A @ 24V DC |
| Mechanical and Environment | |
| Housing | Metal Case (IP30 Protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 500 g (1.1 lb) |
| Dimension (WxHxD) | 31 x 136 x 105 mm (1.22 x 5.36 x 4.13 in) |
| Features & Certifications | Volktek HNS-8405P Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 Switch |
|---|---|
| Features | |
| Functions | VLAN Passthru |
| PoE+ Functions | Up to 4 IEEE 802.3at powered devices Supports PoE Power up to 30W for each PoE port Auto detect powered device (PD) Remote Power Feeding up to 100m |
| Certifications | |
| EMI | FCC Part 15 Subpart B Class A EN 55011 class A EN 55032 class A EN 61000-6-4 |
| EMS | EN 61000-6-2 EN 55024 EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (Burst) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Optional Accessories | |
| Power Supply | IRA-160: 160W, 52V, Industrial Grade Power Adapter -30°C~60°C (-22°F~140°F) for 110V AC input / -30°C~70°C (-22°F~158°F) for 220V AC inpu |
| GBM-104 | 1000BASE-SX 1.25G, Multi-mode SFP, 500 m |
| GBM-123TS | 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10Km, 0°C~70°C (32°F~158°F) |
| GBM-123RS | 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10Km, 0°C~70°C (32°F~158°F) |
