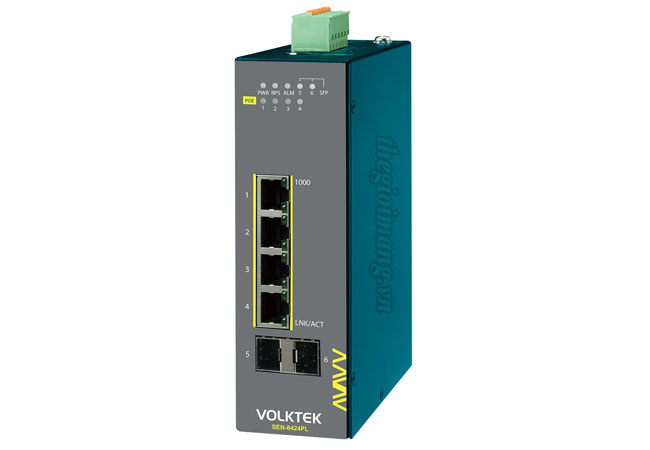

Volktek SEN-8424PL - Lite Managed 4 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch
Thiết bị chuyển mạch Công nghiệp Volktek SEN-8424PL
| Model | SEN-8424PL |
|---|---|
| Interface | |
| Ports | 4 x 10/100/1000BASE-T (PoE RJ45) 2 x 100FX/GbE SFP |
| DIP Switch | Power voltage drop alarm setting (PWR & RPS) |
| LED Panel | PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT |
| Performance | Jumbo frame Size: 10KBytes MAC Table Entries: 8K Switch Fabric: 12Gbps |
| Power | |

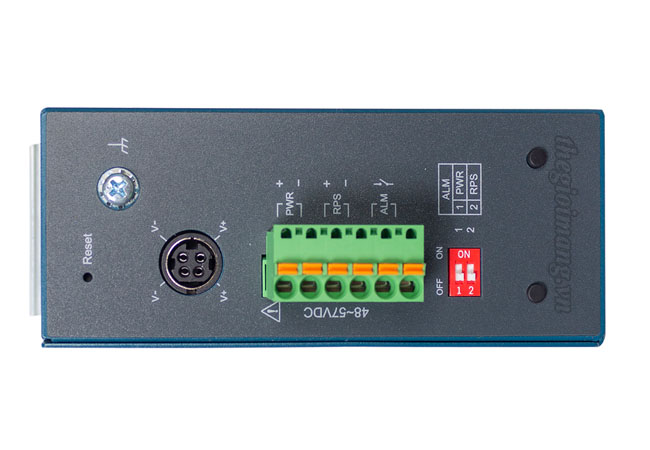

| Input Voltage | Primary inputs: 48~57VDC Redundant inputs: 48~57VDC Mini DIN (4 pin): 48~57VDC |
| Connection | Teminal Block, Mini-DIN |
| Power Consumption | System: 10W PoE Power Budget: 120W |
| Alarm Relay | One relay output, 1A @ 24VDC |
| Mechanical and Environment | |
| Housing | Aluminum (IP30 protection) |
| Mounting | DIN-Rail |
| Operating Temperature | -10°C~60°C (14°F~140°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Weight | 440 g (0.97 lb) |
| Dimension (WxHxD) | 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in |
Data sheet Voltek Hawkeye 9060
| Features & Certifications | Volktek SEN-8424PL Lite Managed 4 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch |
|---|---|
| Features | |
| Management | CLI, Telnet, SSH, HTTP, HTTPs, SNMP v1/v2c, SNMP v3, SNMP Trap, Management VLAN (MVLAN), Firmware upgradable, Configuration Backup/Restore, Syslog, SNTP, LLDP, DHCP Client, Port Mirroring Server (service) control, Port Utilization, Alarm Information, ModbusTCP, Power Down trap Topology Map, Dashboard, Installation Wizard Port Configuration (enable/disable,speed/duplex), ONVIF, Port Statistic, System reboot from remote side User Account with authority |
| Reliability | STP/RSTP, ERPS v1/v2, Code redundancy |
| VLAN | 802.1Q VLAN, Port-based VLAN (Port Isolation) |
| Traffic Control | 802.1p QoS, Flow Control, Traffic Monitor (Abnormal Traffic Detection), Storm Control, Port Isolation, Loop Detection Storm alarm threshold per port |
| Security | ACL (Access control list), Port Security (MAC limit) Port-based 802.1X, BPDU Guard BPDU Filter, ROOT Guard, Trusted Managed Host |
| PoE/PoE+ | PoE Schedulng, PD Alive Check, PoE Power on/off, PoE Priority, Power budget control per system, Power budget control per port, Power delay |
| Certifications | |
| EMI | FCC Part 15 Subpart B Class A EN 55032: class A EN 55011: 2009 class A EN 61000-6-4 |
| EMS | EN 55024 EN 61000-6-2 EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (Burst) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Optional Accessories | |
| Power Supply | SDR-240-48: 240W DIN-Rail 48V DC Industrial Power Supply, -25°C~70°C (-13°F~158°F) |
| GBM-104 | 1000BASE-SX 1.25G, Multi-mode SFP, 500 m |
| GBM-123TS | 1000BASE-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10 km, 0°C~70°C (32°F~158°F) |
| GBM-123RS | 1000BASE-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10 km, 0°C~70°C (32°F~158°F) |
