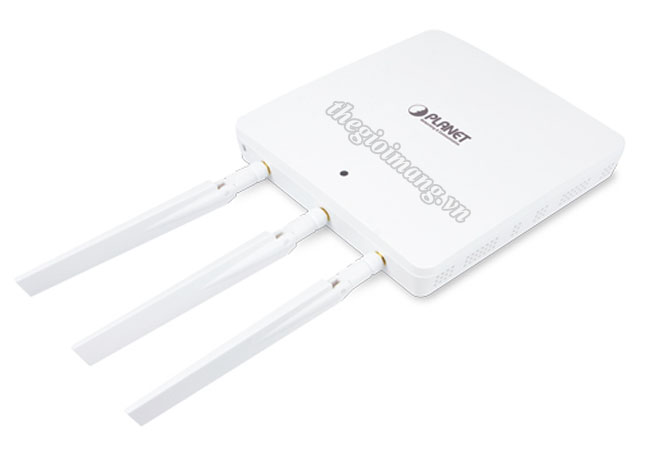

Thiết bị phát WiFi Indoor Planet WDAP-1750AC
Product | WDAP-1750AC | ||
---|---|---|---|
Hardware Specifications | |||

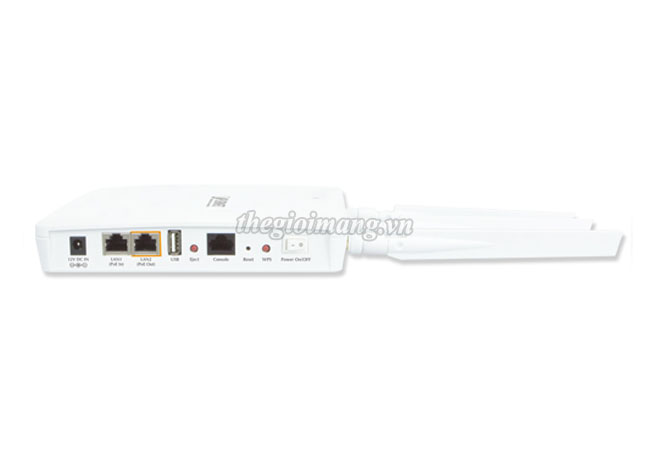

Interfaces LAN | 2 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X |
||
Antennas Gain | 3 x 2dBi SMA antenna | ||
Reset Button | Press over 5 seconds to reset the device to factory default | ||
Material | Plastic | ||
Dimensions (W x D x H) | 182 x 182 x 30 mm | ||
Weight | 470g | ||
Power Requirements | DC Input: 12V DC, 4A PoE Input: IEEE 802.3at PoE+, 48~56V DC in-line power |
||
Power Consumption | 20W (without PSE) | ||
ESD Protection | ±8kV air-gap discharge, ±4kV contact discharge | ||
Mounting | Wall mount / Desktop | ||
Wireless Interface Specifications | |||
Standard | IEEE 802.11ac (draft 2.0) 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
||
Antenna Structure | 802.11ac: 3T3R MU-MIMO 802.11n: 3T3R MIMO |
||
Modulation | DSSS | ||
Data Modulation | 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK) |
||
Band Mode | 2.4G / 5G concurrent mode | ||
Frequency Range | 2.4GHz: ※ America/ FCC: 2.412~2.462GHz ※ Europe/ ETSI: 2.412~2.484GHz |
||
5GHz: ※ America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz ※ Europe/ ETSI: 5.180~5.240GHz |
|||
Channel Width | 802.11ac: 20/40/80MHz 802.11n: 20/40MHz |
||
Transmission Distance | 802.11ac (draft): up to 30m 802.11n: up to 70m 802.11g: up to 30m The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
||
Max. RF Power | 5GHz: ※ 802.11ac (VHT20/40/80): 27.5dBm @MCS0 ※ 802.11ac (VHT20/40/80): 22.5dBm @MCS7 ※ 802.11ac (VHT20/40/80): 19.5dBm @MCS9 ※ 802.11n (HT20/40): 27.5dBm @MCS0/MCS8 ※ 802.11n (HT20/40): 22.5dBm @MCS7/MCS15 ※ 802.11a: 26.5dBm @6Mbps ※ 22.5dBm @54Mbps |
||
2.4GHz: ※ 802.11n (HT20/40): 27.5dBm @MCS0 ※ 802.11n (HT20/40): 22.5dBm @MCS7 ※ 802.11g: 27.5dBm @6Mbps ※ 802.11g: 23.5dBm @54Mbps ※ 802.11b: 27.5dBm @1Mbps |
|||
Receive Sensitivity | 5GHz: ※ 802.11ac (VHT20): -64dBm @MCS9 ※ 802.11ac (VHT40): -61dBm @MCS9 ※ 802.11ac (VHT80): -58dBm @MCS9 ※ 802.11n (HT20): -87dBm @MCS0, -67dBm @MCS7 ※ 802.11n (HT40): -84dBm @MCS0, -63dBm @MCS7 ※ 802.11a: -71dBm @54Mbps |
||
2.4GHz: ※ 802.11n (HT20/40): -87dBm @MCS0 ※ 802.11n (HT20/40): -67dBm @MCS7 ※ 802.11g: -70dBm @54Mbps ※ 802.11b: -90dBm @1Mbps |
|||
Environment & Certification | |||
Temperature | Operating: 0 ~ 50 degrees C Storage: -20 ~ 60 degrees C |
||
Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing) |
||
Regulatory | FCC, CE |
Wireless Security Encryption and Wireless Value-added Features |
|||
Software Features
|
|||
Wireless Mode | AP (Access Point) Repeater (WDS + AP) WDS PTP (Point to Point) WDS PTMP (Point to Multipoint) |
||
Encryption Security | WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) 802.1x Authenticator |
||
Wireless Security | Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup) Enable/ Disable SSID Broadcast |
||
Wireless Advanced | Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz Wireless Isolation: Enable it to isolate each connected wireless client from communicating with each other WLAN L2 isolation (AP mode) Provides wireless statistics |
||
Max. Clients | Wired: 253 2.4GHz Wireless: 50 5GHz Wireless: 50 |
||
LAN | Built-in DHCP server supporting static IP address distribution Supports UPnP Supports 802.1Q VLAN |
||
System Management | Web-based (HTTP) management interface SNTP synchronization Easy firmware upgrade Supports scheduling reboot Supports Smart Discovery Utility |
||
Standards Conformance | |||
IEEE Standards | IEEE 802.11ac (draft 2.0, 3T3R, up to 1300Mbps) IEEE 802.11n (3T3R, up to 450Mbps) IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control |
||
Other Protocols and Standards | CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP |
