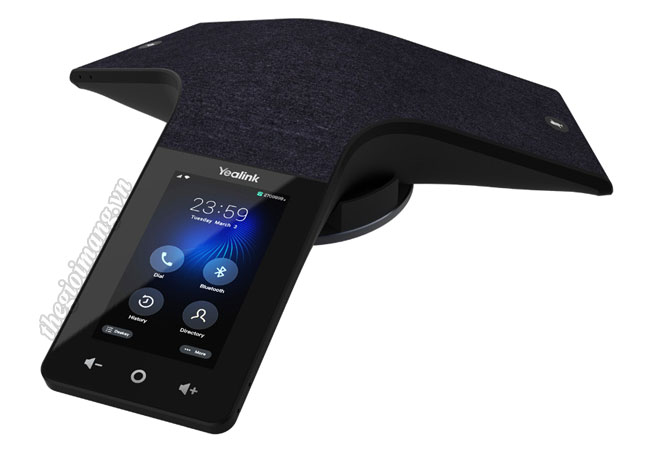

Yealink CP935W Wireless Touch-Sensitive Conference Phone
Các tính năng chung
Tính năng âm thanh
Tính năng điện thoại
Kết nối
Các tính năng tiên tiến
Data sheet Yealink CP935W Wireless Touch-Sensitive Conference Phone
Thông số kỹ thuật Yealink CP935W
| Audio Features | • Optimal HD audio • Yealink Noise Proof Technology • Smart Noise Filtering • 20-foot (6-meter) microphone pickup range • Apply to small to medium conference room • Built-in 6-microphone array for voice pickup • Loudspeaker - Frequency: 100-20,000 Hz - Volume: 94dB at 0.5-m peak volume • 56mm diameter and 5w speaker • Full-duplex speakerphone with AEC • Echo cancellation tail length is up to 320ms • Background noise suppression • Codecs: G722, G722.1C, G726, G.729, G.729A, G723, iLBC, Opus, PCMU (G.711A), PCMA (G.711μ), AMR • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO • VAD, CNG, PLC, AJB, AGC |
| Phone features | • 1 SIP account • Call hold, mute, DND, call recording, hotline • 5-way conference call • Redial, call waiting, emergency call • Call forward, call transfer, call return, dial plan • Ring tone selection/import/delete • Set date time manually or automatically • Volume adjustment • Pairing via Bluetooth • Create meeting directly • Join meeting seamlessly • Active Speaker |
| Directory | • Local phonebook up to 1000 entries • XML/LDAP remote phonebook • Intelligent search method • Phonebook search/import/export • Call history: dialed/received/missed/forwarded • Blocklist |
| IP-PBX features | • Busy Lamp Field (BLF) • Multicast paging • Intercom • Anonymous call • Anonymous call rejection • Voice mail • Distinctive ringtone • Call pickup |
| Display | • 4” 480x800 capacitive touch screen • Volume key • Home button |
| Interface | • Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n) • Built-in Bluetooth 4.2 • 1 x USB 2.0 Type-C device port • 1 x Security slot |
| Network and Security | • SIP v1 (RFC2543), v2 (RFC3261) • SIP server redundancy supported • IPv4/IPv6 • NAT traversal: STUN mode • Proxy mode and peer-to-peer SIP link mode • HTTP/HTTPS web server • Time and date synchronization using SNTP • UDP/TCP/DNS-SRV (RFC 3263) • SRTP for voice encryption • Transport Layer Security (TLS1.3) • HTTPS certificate manager • AES encryption for configuration file (AES256) • Digest authentication using MD5/MD5-sess • OpenVPN, L2TP VPN • WPA2 • Secure boot |
| Management | • Configuration: browser/phone/auto-provision/Yealink Device Management Platform • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment • Auto-provision with PnP • Zero-sp-touch, TR-069 • Reset to factory, reboot • Package tracing export, system log |
| Other physical features | • Color: Black • Wi-Fi range - Up to 300 meters, depends on Wi-Fi router • PSU: 2.2~6W • Battery capacity: 7800mAH • Charging time: 4 hours • Up to 75 hours standby time in Wi-Fi mode (in ideal conditions) • Up to 20 hours talk time (in ideal conditions) • Dimension (W*D*H): 288.6mm*285.2mm*63.9mm • Operating humidity: 10~90% • Storage temperature: -10~40°C (+14~104°F) |
| Package Features | • Package content: - Yealink CP935W IP conference phone - Charger cradle - Yealink Power Adapter - Wireless Microphone CPW25 (Optional) - Quick Start Guide • Qty/CTN: 5 PCS • N.W/CTN: 7.416 kg • G.W/CTN: 8.420 kg • Giftbox size: 355mm*349mm*108mm • Carton Meas: 567mm*357mm*365mm |
