Mô tả sản phẩm

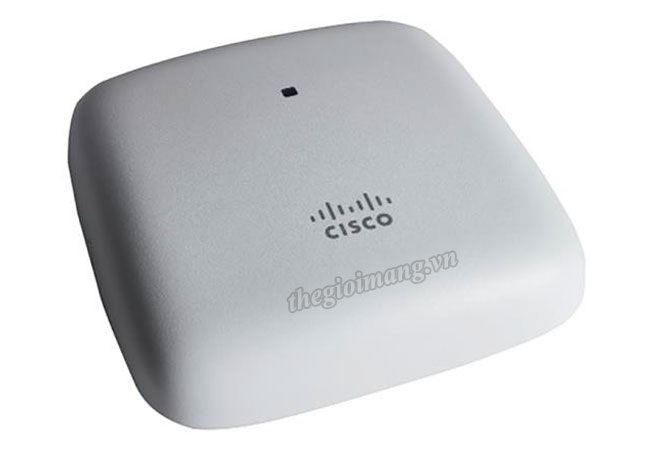

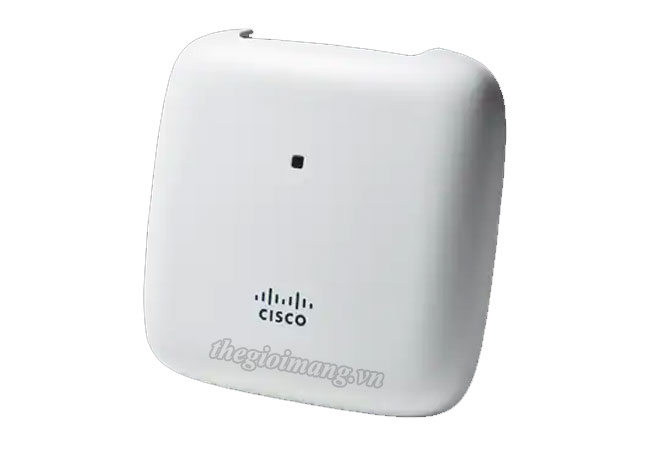

Thiết bị phát sóng Wifi Cisco Business 140AC Access Point

Model	CBW140AC-E
Authentication and security	● Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release ● 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA) ● Segmentation via VLANs (up to 16) ● 802.11r and 802.11i ● Guest network can also authenticate against: Google and Facebook
Maximum clients	● Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system
Maximum # of Access Points	● 50 ● Recommended up to 25
Max # of Mesh Extenders	● Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops
802.11ac	● 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz ● 20-, 40-, and 80-MHz channels ● Dynamic Frequency Selection (DFS)
Ethernet ports	● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to Master AP
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
	802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)
	802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)
Available transmit power settings	2.4 GHz Up to 20 dBm	5 GHz Up to 20 dBm
Integrated antennas	● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 4 dBi
Interfaces	● 1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE) ● RJ-45 console port (not functional)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm)
Weight	● Access point without mounting bracket or any other accessories: 14 oz (400 g)
Environmental	● Operating ◦ Temperature: 32° to 104°F (0° to 50°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Maximum altitude: 9843 ft (3000 m) at 40°C ● Nonoperating (storage and transportation) ◦ Temperature: –22° to 158°F (-30° to 70°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Maximum altitude: 15,000 ft (4500 m) at 25°C
System	● 1 GB DRAM, 256 MB flash ● 710-MHz quad core processor
Powering options	● 802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended ● Optional Cisco Business PoE injector
Power draw	● 8.3W (maximum, on PoE)
Mounting and physical security	Included with the access point: ● Mounting bracket ● Torx security screw ● Ceiling rail mount clip
Warranty	Cisco Business limited lifetime hardware warranty Free software updates, no service contract required
