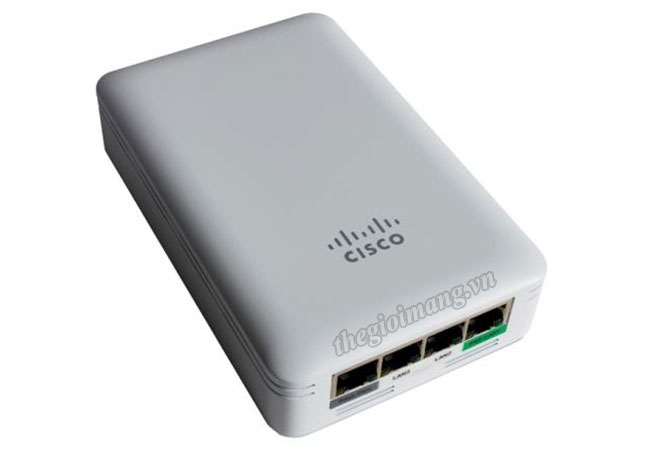

Thiết bị phát sóng Wifi Cisco Business 145AC Access Point
Model |
CBW145AC-E |
|
Authentication and security |
● Wi-Fi Protected Access 2 and 3 (WPA2 and WPA3)
● 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
● 802.11r and 802.11i
|
|
Maximum clients |
● Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point
|
|
Max # of Mesh Extenders |
● Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops
|
|
802.11ac |
● 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps
● 20-, 40-, and 80-MHz channels
● Dynamic Frequency Selection (DFS)
|
|
Data rates supported |
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
|
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
||
802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) |
||
802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) |
||
Available transmit power settings |
2.4 GHz Up to 20 dBm |
5 GHz Up to 20 dBm |
Integrated antennas |
● 2.4 GHz, gain 2 dBi
● 5 GHz, gain 3 dBi
|
|

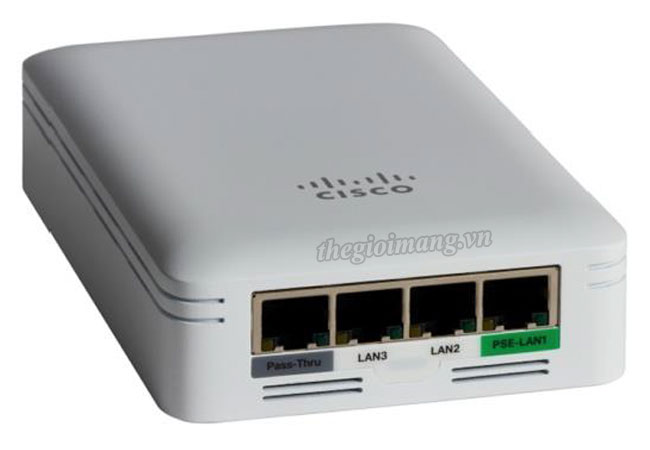

Interfaces |
● 1x Gigabit Ethernet uplink (10/100/1000BASE-T autosensing), PoE
● 3x Gigabit Ethernet local ports (10/100/1000BASE-T), including one PoE out port:
◦ PoE out provides 802.3af (Class 0) when access point is powered by 802.3at, or no output when powered by 802.3af ● One passive pass-through port, RJ-45 (back to bottom)
|
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
|
|
Dimensions |
● Access point (without mounting bracket): 3.5 x 5.5 x 1.25 in. (89 x 140 x 31.5 mm)
|
|
Weight |
● Access point without mounting bracket or any other accessories: 10 oz (280 g)
|
|
Environmental |
● Operating
◦ Temperature: 32° to 104°F (0° to 50°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Maximum altitude: 9843 ft (3000 m) at 40°C ● Nonoperating (storage and transportation)
◦ Temperature: -22° to 158°F (-30° to 70°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Maximum altitude: 15,000 ft (4500 m) at 25°C |
|
System |
● 1 GB DRAM
● 256 MB flash
● 710-MHz quad-core processor
|
|
Powering options |
● 802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended
● Optional Cisco Business PoE injector (CB-PWRINJ-xx)
|
|
Power draw |
● 8.5W (maximum, without PoE out)
|
|
Physical security |
● Torx security screw, included with the access point
● Kensington lock slot to lock device to mounting bracket
|
|
Mounting |
● Bracket is included with the access point
|
|
Warranty |
Cisco Business limited lifetime hardware warranty Free software updates, no service contract required |
